1/05
8d-63
DocuColor 12/DCCS50
REP 15.1.3, REP 15.1.4
Finisher/Sorter
Reissue

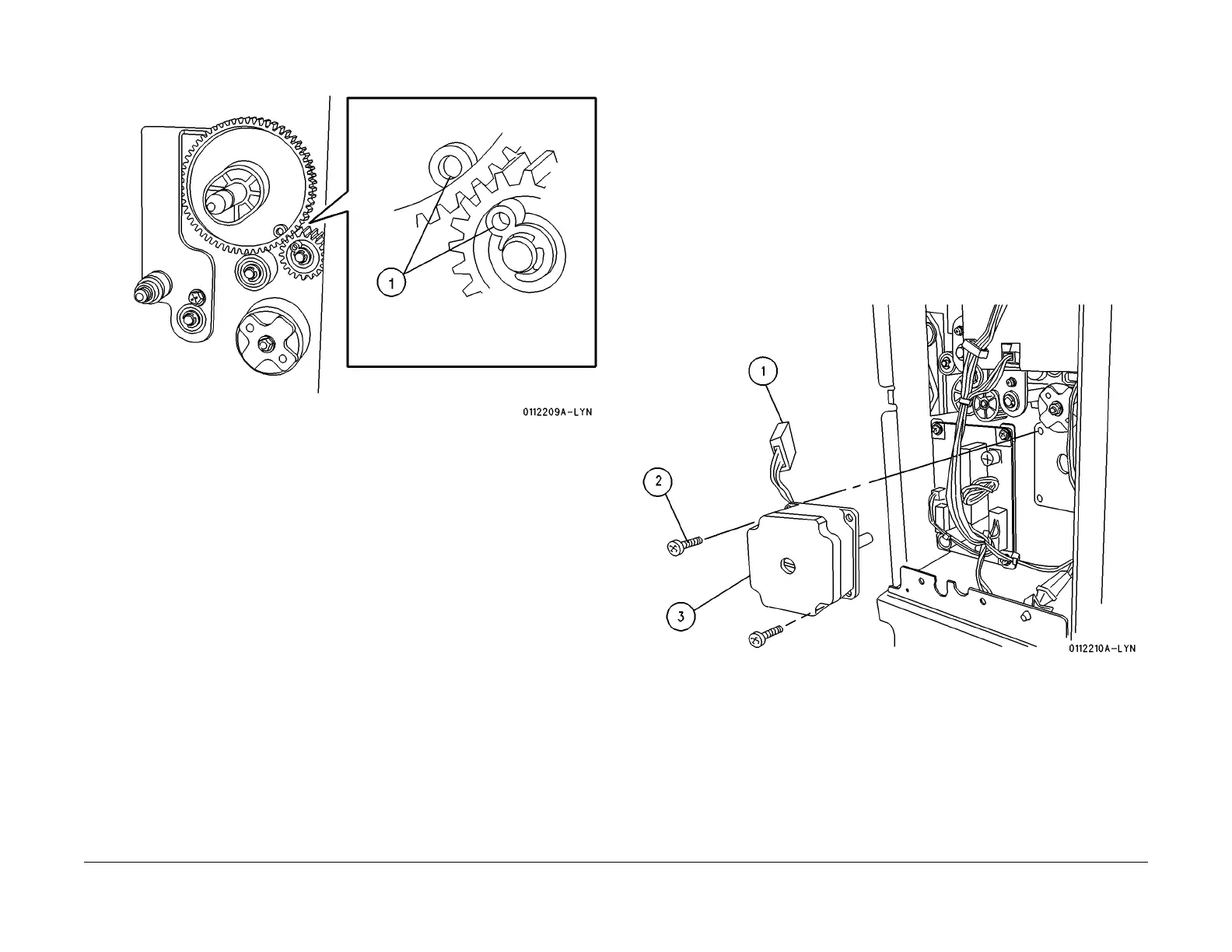

Figure 3 Reinstall the Cam
REP 15.1.4 Decurler Stepper Motor
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Rear Cover (REP 15.3.
13).
2. Remove the Decurler Top Cover (REP 15.3.
12).
3. Remove the Decurler Stepper Motor (Figure 1
).
1. Disconnect the connector from the Decurler Control PWB.
2. Remove the screws (2).
3. Remove the Decurler Stepping Motor.
Figure 1 Remove the Decurler Stepper Motor
Replacement
Reinstall the Decurler Stepper Motor in the reverse order of disassembly.
To Next Page
