1/05
5-248
DocuColor 12/DCCS50
PL 2.15
Reissue
Parts Lists

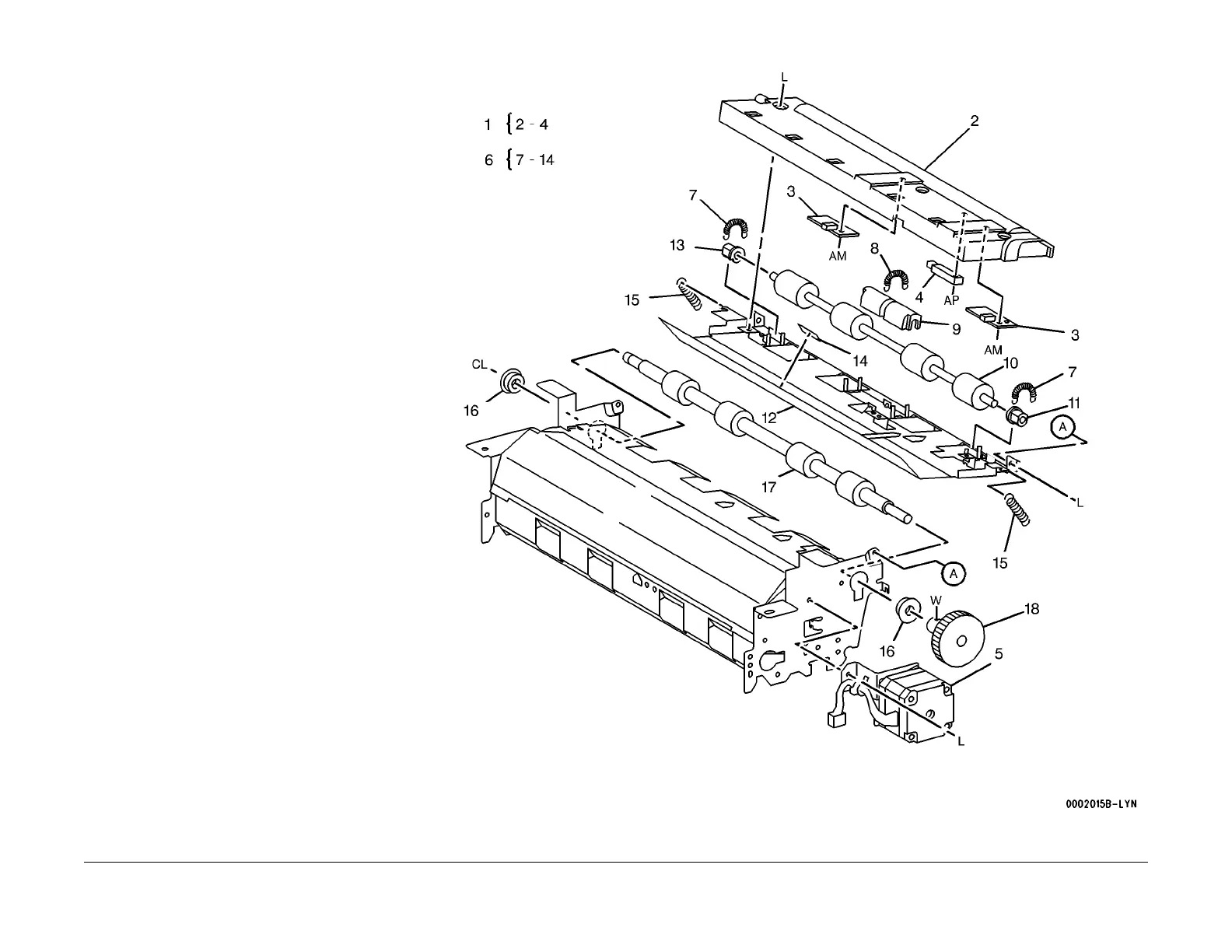

PL 2.15 Regi.-Regi.
Item Part Description
1 048K65921 Regi. Cover Assembly
2 – Regi. Cover (P/O PL 2.15 Item 1)
3 160K46290 OHP Sensor 1, OHP Sensor 2
4 130K60600 Regi. Sensor (REP 2.15.1 )
5 127K21871 Regi. Motor (REP 2.15.3 )
6 054K11072 Upper Chute
7 809E09430 Spring
8 – Spring (P/O PL 2.15 Item 6)
9 013E88020 Bearing
10 059K08760 Pinch Roll
11 013E88030 Bearing
12 – Chute (P/O PL 2.15 Item 6)
13 013E82490 Bearing
14 – Label (P/O PL 2.15 Item 6)
15 809E08090 Spring
16 – Bearing (Not Spared)
17 059K08790 Regi. Roll (REP 2.15.2 )
18 007E51370 Gear
