1/05

5-283

DocuColor 12/DCCS50

PL 7.7

Parts Lists

Reissue

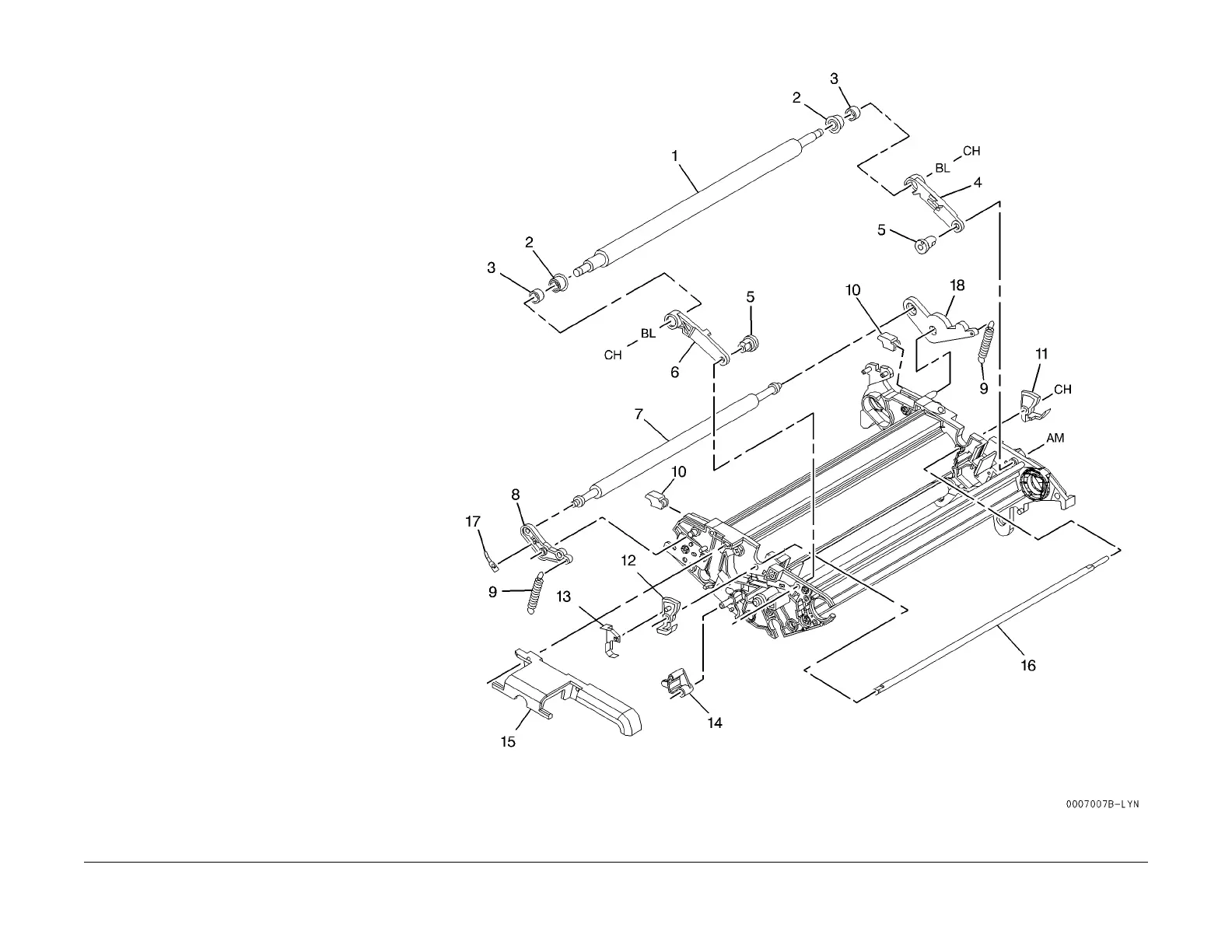

PL 7.7 IBT Component (Part 2 of 2)

Item Part Description

1 059E92720 Idler Roll

2 – Bearing (P/O PL 7.5 Item 1)

3 – Spacer (P/O PL 7.5 Item 1)

4 012E98080 Link (Rear)

5 029E26770 Arm Pivot

6 012E98070 Link (Front)

7 059K07882 Tension Roll

8 031E94101 Arm

9 809E06360 Spring

10 003E39980 Stopper

11 008E93250 Rear Cam

12 008E93090 Front Cam

13 – Earth Plate (Not Spared)

14 008E93270 Foot Cam

15 011E08081 Front Lever

16 006E56290 Shaft

17 – Earth Plate (Not Spared)

18 031E93022 Inboard Tension Roll Arm
