1/05
4-65
DocuColor 12/DCCS50
REP 4.1.1
Repairs and Adjustments
Reissue
REP 4.1.1 ROS
Parts List on PL 4.1
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
The ROS assembly is a precision optical component. Be careful not to damage the unit when
handling it.
1.
Open/close the IIT (REP 3
.1.2).

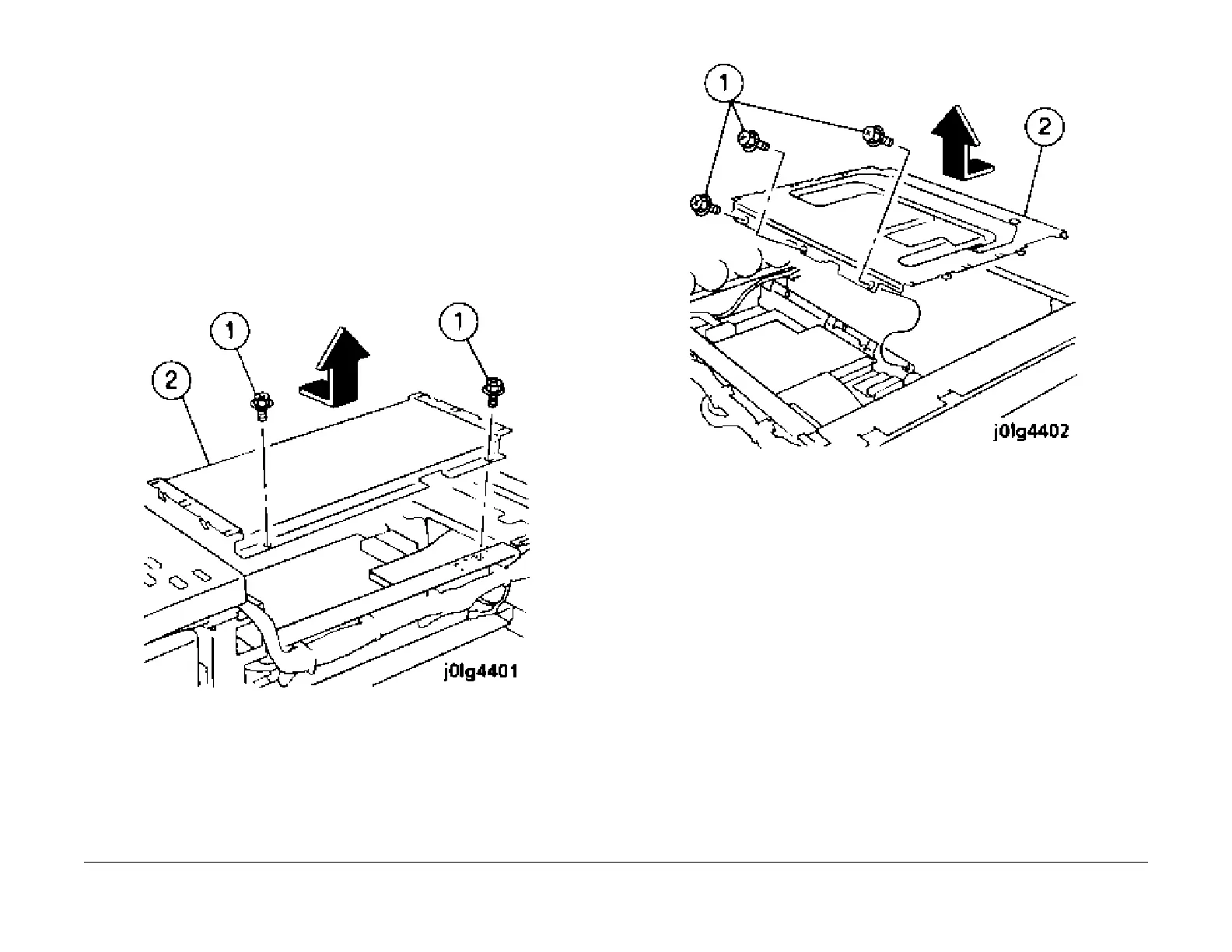

2. Remove the Half Tone PWB Cover (Figu
re 1).
1. Remove the screws (2).
2. Remove the Half Tone PWB Cover.
Figure 1 Remove the Half Tone PWB Cover
3. Remove the ROS Top Cover (Figu
re 2).
1. Remove the screws (3).
2. Remove the ROS Top Cover.
Figure 2 Remove the ROS Top Cover
4. Disconnect the connectors (Figur
e 3).
1. Disconnect the connectors (3).
To Next Page
