DocuColor 12/DCCS50
REP 15.1.15, REP 15.1.16
Finisher/Sorter
Reissue
REP 15.1.15 Finisher Transport Motor
Parts List on PL 18.9
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Rear Upper Cover (REP 15.3.
7).
2. Remove the Rear Lower Cover (REP 15.3.
15).
3. Remove the Finisher Transport Motor (Figure 1
).
1. Disconnect the connector P/J1084.
2. Remov
e the three screws securing the motor.
3. Pull the motor straight out to remove.

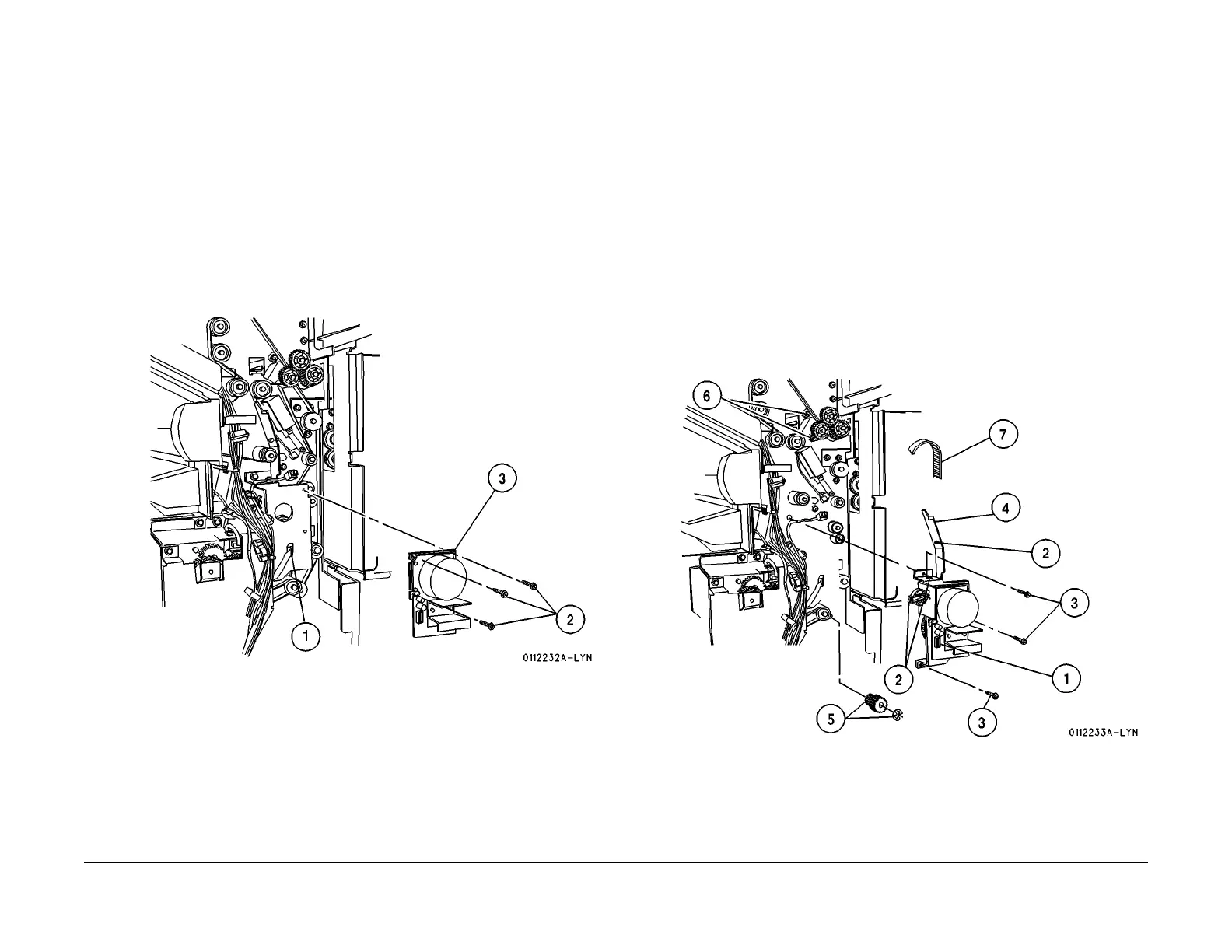

Figure 1 Remove the Finisher Transport Motor
Replacement
Reinstall the Finisher Transport Motor in the reverse order of disassembly.
REP 15.1.16 Finisher Drive Belt
Parts List on PL 18.9
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Rear Upper Cover (REP 1
5.3.7).
2. Remove the Rear Lower Cover (REP 1
5.3.15).
3. Remove the Finisher Drive Belt (Figure 1
).
1. Disconnect the connector P/J1084.
2. Disengage t
he wire harnesses from
the harness holders.
3. Remove the three screws securing the motor bracket.
4. Remove the bracket with the motor.
5. Remove the E-clip and the Decurler Gear.
6. Remove the two screws securing the belt idler bracket.
7. Remove the Finisher Drive Belt.
Figure 1 Remove the Finisher Drive Belt
Replacement
1. Reinstall the shaft and the one-way pulleys onto the belt idler bracket, ensuring that the
Finisher Drive Belt and Mailbox Drive Belt are installed onto the correct one-way pulley.
