1/05
5-329
DocuColor 12/DCCS50
PL 13.11
Parts Lists
Reissue

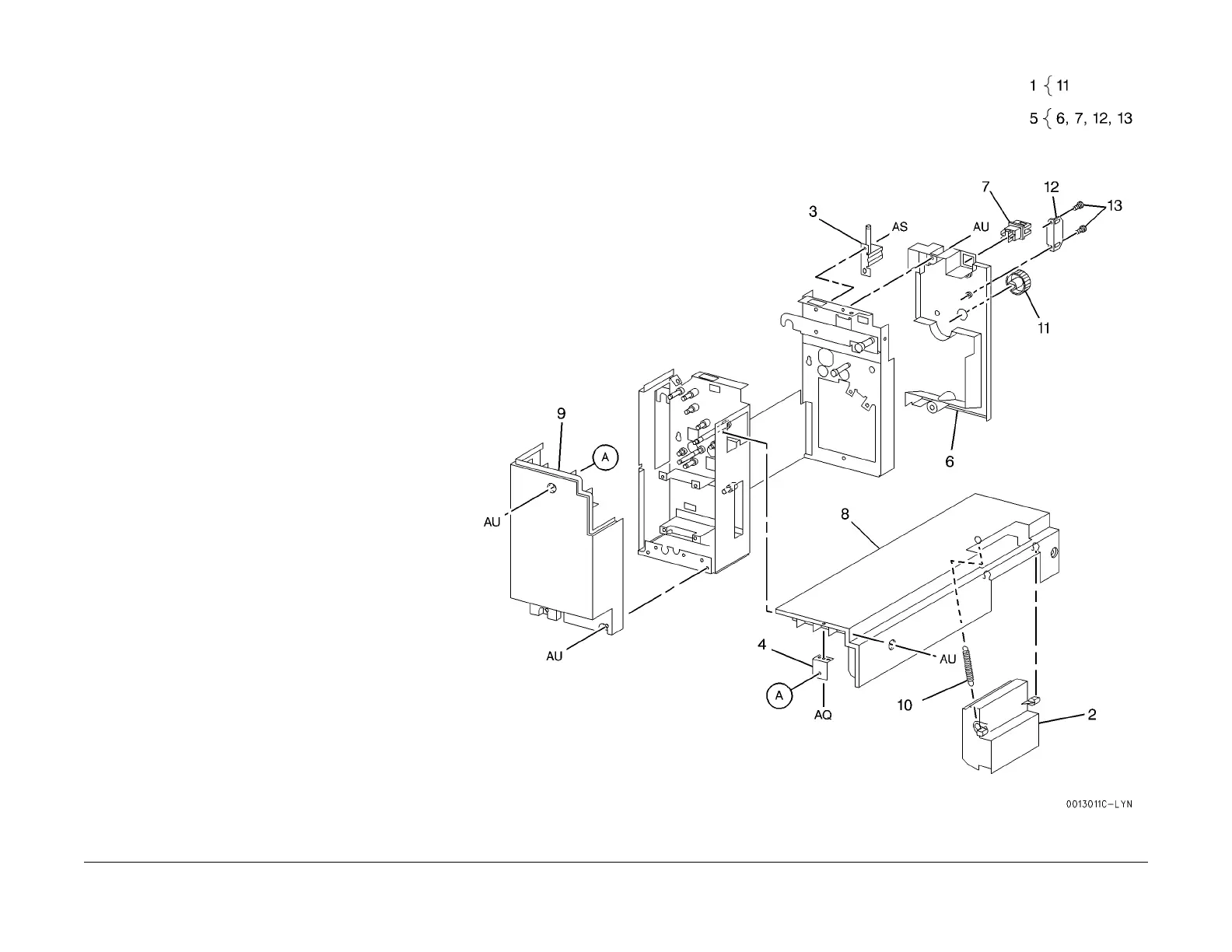

PL 13.11 Decurler Cover
Item Part Description
1 003K85570 Knob Assembly
2 003E46501 Handle
3 003K85101 Hinge
4 – Bracket (P/O PL 13.3 Item 2)
5 048K77420 Decurler Inner Cover Assembly
6 048E65721 Decurler Inner Cover
7 110E97990 Decurler Front Cover Interlock
S
witch
8 048E65730 Decurler Top Cover
9 048E65740 Decurler Rear Cover
10 809E02991 Spring
11 003K83211 Knob
12 121E90490 Catch Magnet
13 – Screw (Not Spared)
