1/05
4-70
DocuColor 12/DCCS50
REP 5.3.3, REP 5.3.4
Reissue
Repairs and Adjustments
Installation

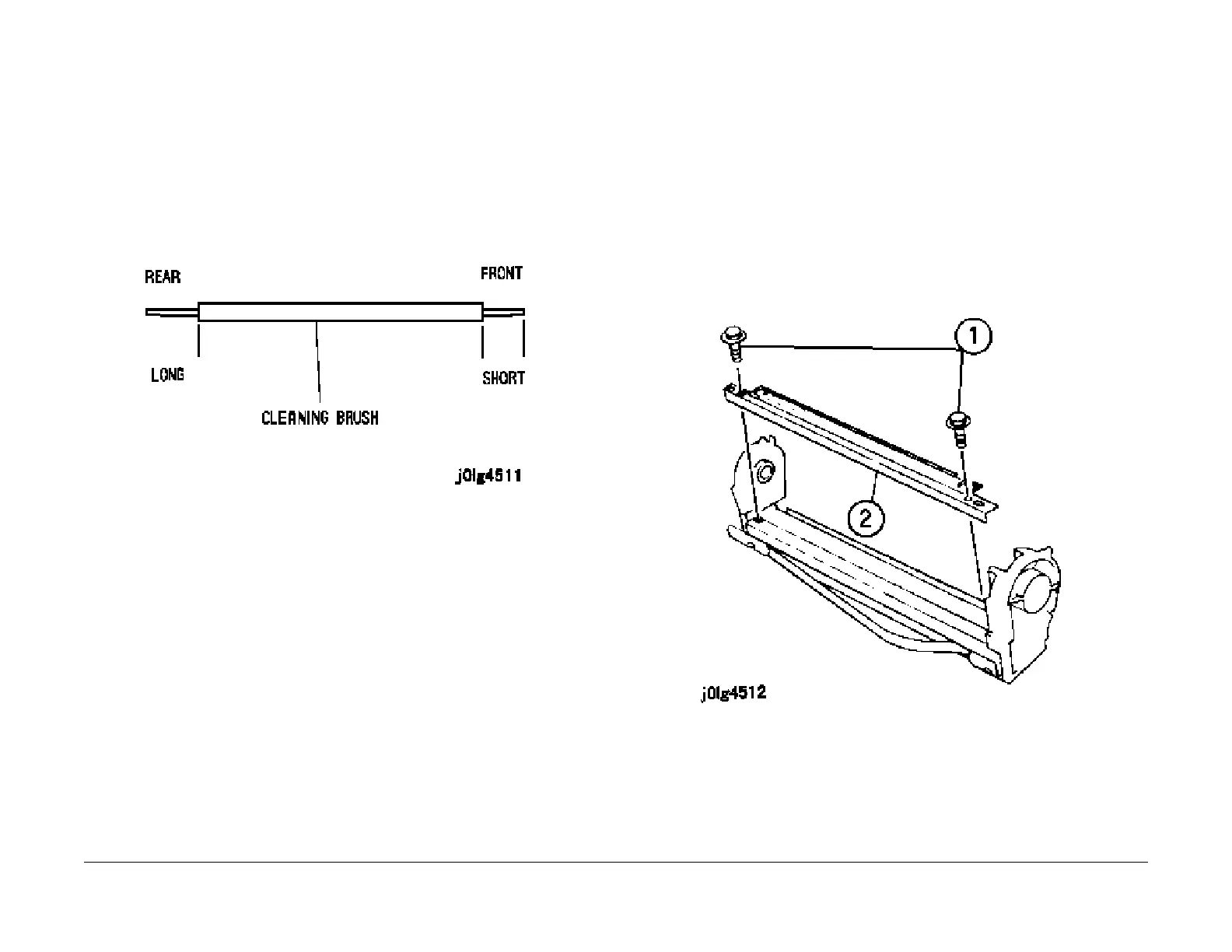

NOTE: When installing the Cleaning Brush, make sure that the long shaft side is to the rear as
shown in the figure below (Figure 3).
Figure 3 Reassembly
1. Reinstall the parts in the reverse order of disassembly.
REP 5.3.4 Cleaning Blade
Parts List on PL 5.3
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: When removing the Drum Unit, do not expose the Drum t
o direct sunlight or strong
light.
NOTE: Do not touch the Drum surface.
1. Remove the Drum (REP 5.3.
1).
2. Remove the Cleaning Blade (Figure 1
).
1. Remove the screws (2).
2. Remove the Cleaning Blade.
Figure 1 Remove the Cleaning Blade
Installation
NOTE: After installing the Cleaning Blade, clean the Cleaning Blade.
1. Reinstall the parts in the reverse order of disassembly.
