Xerox DocuColor 12/DCCS50 User Manual

1/05
8a-23
DocuColor 12/DCCS50
REP 2.8.36
High Capacity Feeder
Reissue
REP 2.8.36 HCF Baffle Assembly
Parts List on PL 15.15
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Paper Tray Assembly (REP 2.7.
5).
2. Remove the HCF Feeder Assembly (REP 2.8.
27).
3. Remove the HCF Front/Rear Springs (REP 2.8.
35).
4. Remove the HCF Baffle Assembly (Figure 1
).

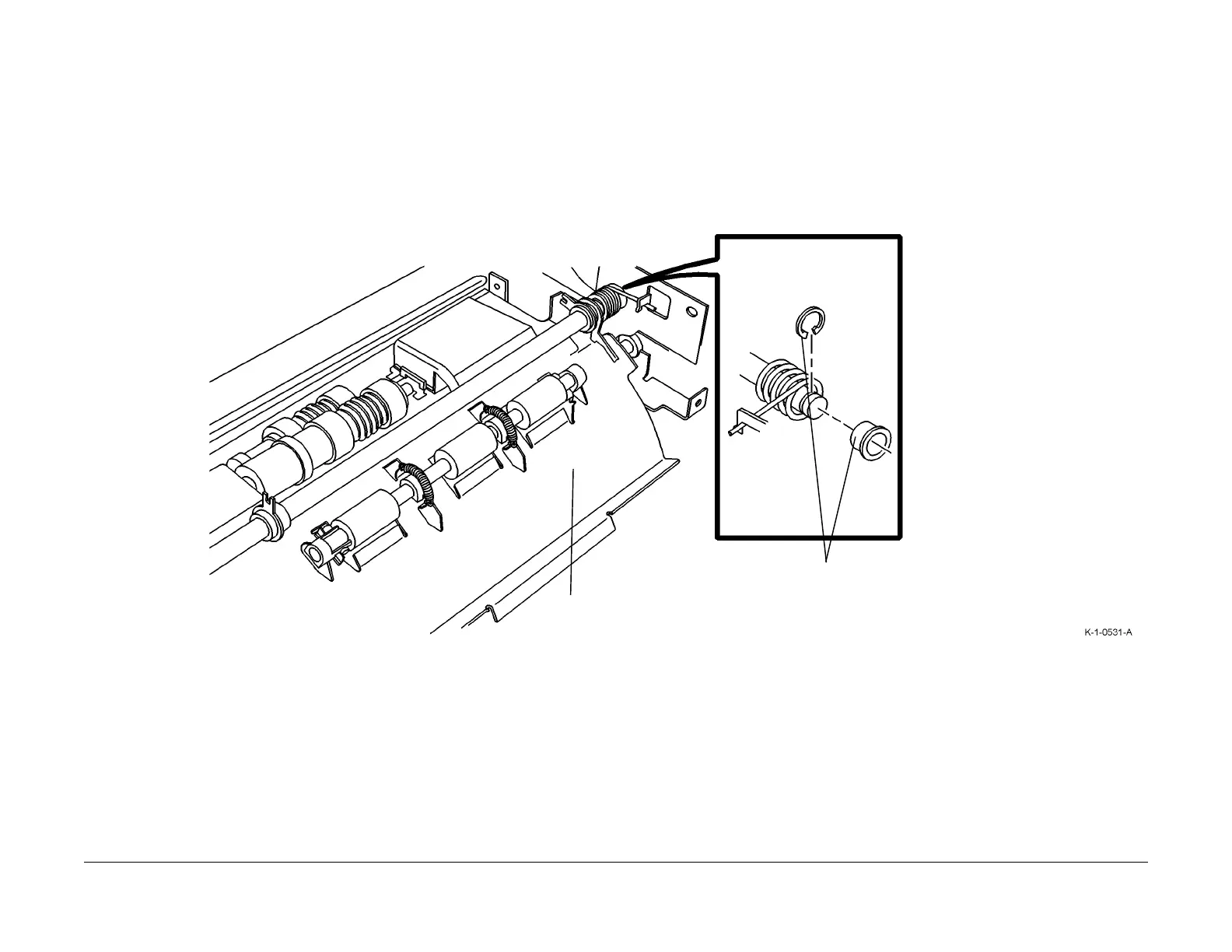

Figure 1 Removing the Baffle Assembly
Replacement
1. Reverse the above procedures to replace the HCF Baffle Assembly.
2. Remove the Baffle Assembly
1. Remove the KL-clip and Bushing at
each end of shaft
