DocuColor 12/DCCS50
REP 1.6.1
Repairs and Adjustments
Reissue
REP 1.6.1 Exit Drive
Parts List on PL 1.6
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the IOT Rear Cover (PL
11.3 Item 7)
2. Remove the Filter Unit Cover (PL 11
.2 Item 4)
3. Open the IOT Control PWB Chassis (REP 9.2.
1).
4. Move the wire harness (Figur
e 1).
1. Release the clamps (2).
2. Move the harness.
3. Remove the clamp.

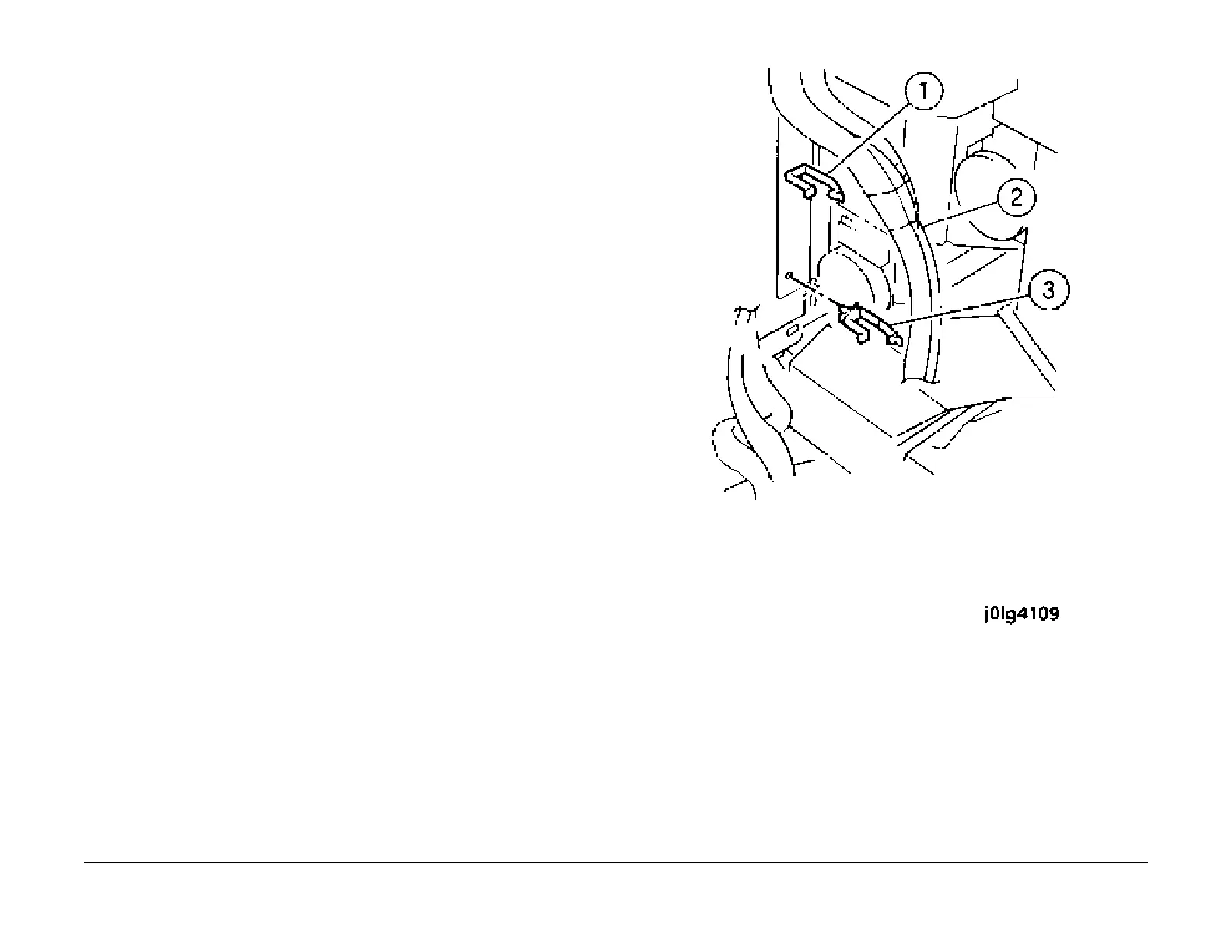

Figure 1 Moving the Harness
5. Remove the duct (F
igure 2
).
1. Remove the screws (2).
2. Remove the duct.
