1/05
8d-137
DocuColor 12/DCCS50
PL 18.3
Finisher/Sorter
Reissue

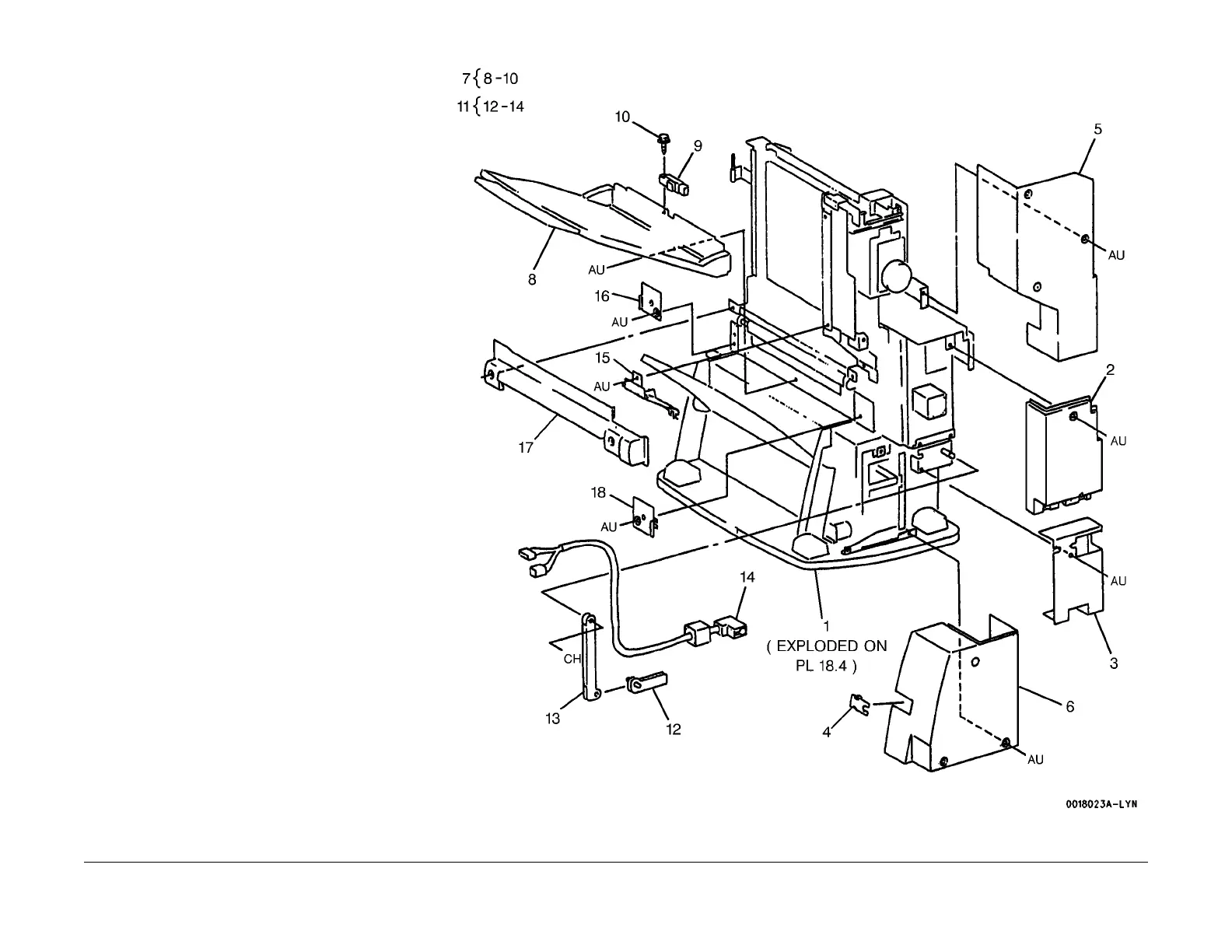

PL 18.3 Covers - Right, Rear
Item Part Description
1 – Finisher (REF: PL 18.4) (Not
Spar
ed)
2 048E65740 Decurler Rear Cover (REP
15.
3.13)
3 802E139
40 IOT Connector Cover (REP 15.3.8)
4 – Rear Panel (Not Spared)
5 802E13950 Rear Upper Cover (REP 15.3.7)
6 802E13960 Rear Lower Cover (REP 15.3.15)
7 050K41310 Single Catch Tray Assembly (REP
15.
1.17)
8 – S
ingle Catch Tray (P/O PL 18.3
It
em
7)
9 130K60600 SCT Full Sensor
10 – Screw (P/O PL 18.3 Item 7)
11 162K60401 Wire Harness (Finisher PWB-IOT)
12 830E34990 Support Link (Left)
13 830E35000 Support Link (Right)
14 – Wire Harness (P/O PL 18.3 Item
11
)
15 048E66571
Mailbox Rear Lower Cover
16 802E13990 SCT Exit Front Cover
17 802E14000 SCT Exit Cover
18 802E14010 SCT Exit Rear Cover
To Next Page
