1/05
8e-13
DocuColor 12/DCCS50
REP 20.5
Electronic Pre-Collation (EPC)
Reissue
REP 20.5 EPC Memory PWB
Parts List on PL 20.1
Removal
CAUTION
Use the ESD Kit and the established ESD procedures when replacing the Memo
ry PWB. The
Memory PWB can be damaged by electrostatic discharge.
1. For DCCS50:
• Switch Off the power. Wait 30 seconds, then unplug the power cord. Disconnect the
IDFE
DDI Cables.
For DC12 with attached Fiery or Splash DFE:
• Perform the correct power down procedure. Disconnect
the DFE DDI cables.
For DC12 without an attached DFE:
• Switch off the power and disconnect the power cord.
2. Access the Memory PWB (Figur
e 1).

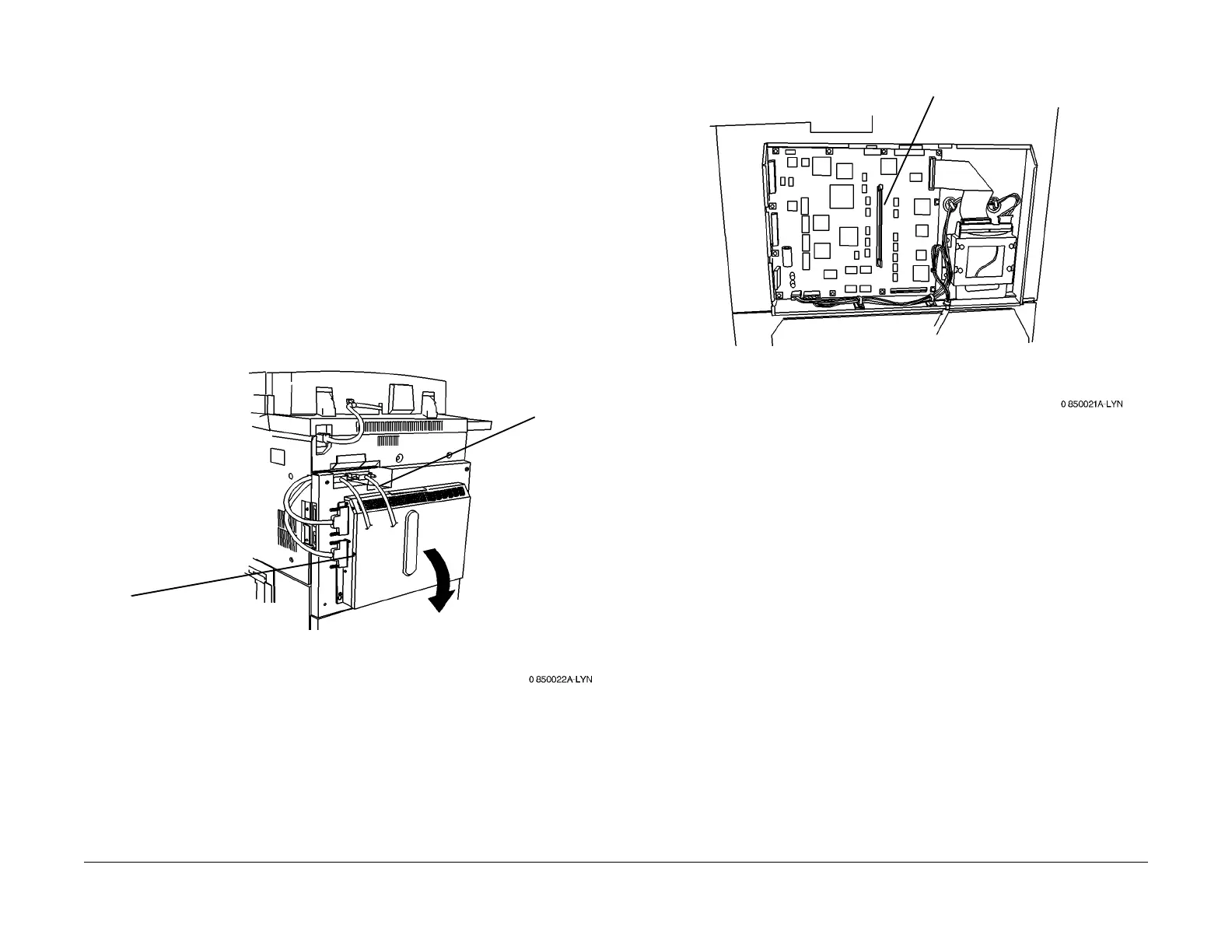

Figure 1 Accessing the Memory PWB
3. Remove the Memory PWB (Figu
re 2).
Figure 2 Removing the Memory PWB.
Replacement
1. Reinstall the parts in the reverse order of disassembly.
2. Initialize the EPC (GP 1).
1
Loosen the screws (6)
2
Lower the Cover
1
Remove the Memory PWB
To Next Page
