1/05
5-314
DocuColor 12/DCCS50
PL 12.7
Reissue
Parts Lists

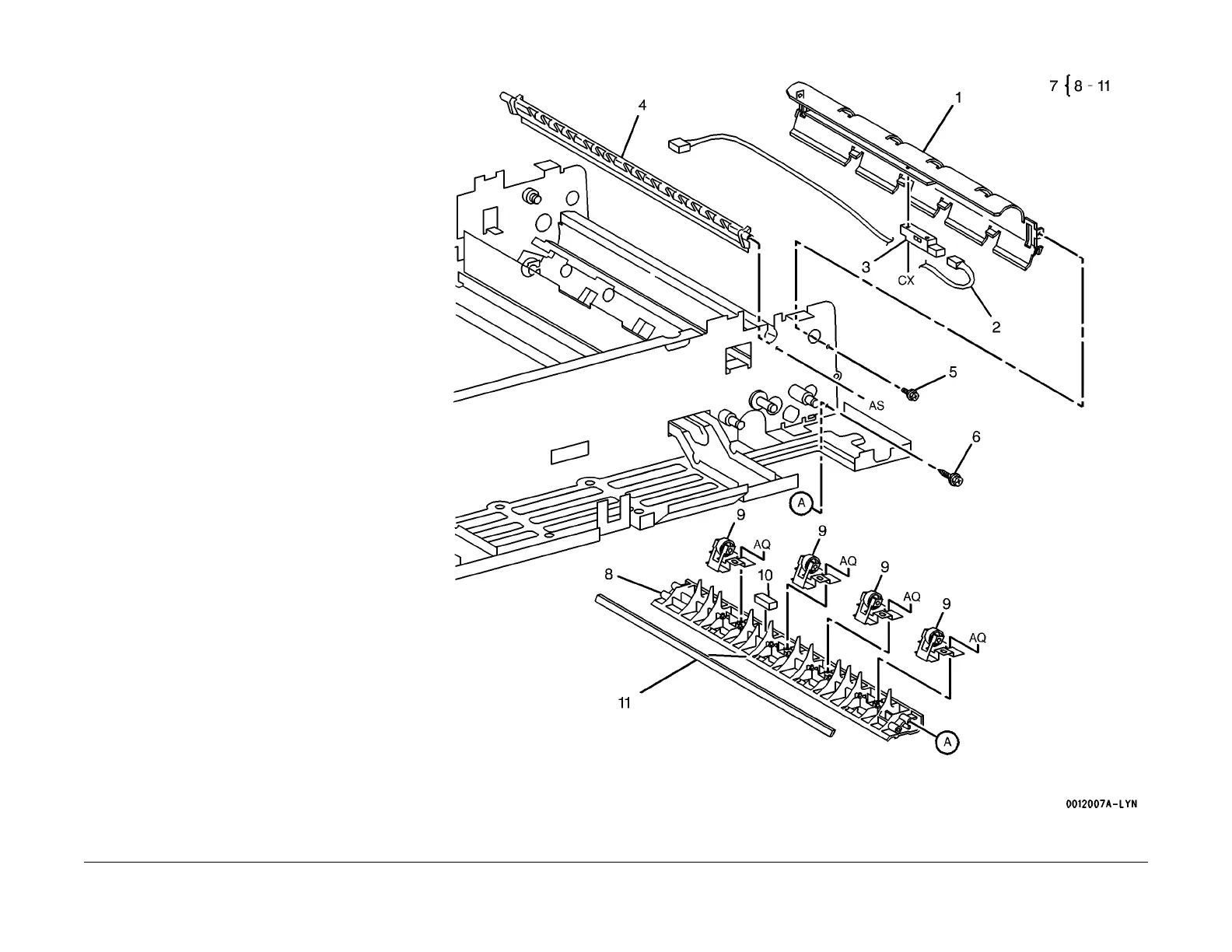

PL 12.7 Duplex Chute
Item Part Description
1 054K06692 Duplex Chute
2 – Wire Harness (Not Spared)
3 130E91220 Duplex Sensor (REP 12.7.1 )
4 050K27670 Gate
5 – Screw (Not Spared)
6 – Tapping Screw (Not Spared)
7 054K18790 Lower Chute Assembly
8 – Lower Chute (P/O PL 12.7 Item 7)
9 059K11850 Pinch Roll
10 121E90640 Magnet (Open Switch)
11 – Guide (Not Spared)
