1/05
10-81
DocuColor 12/DCCS50
Image Processing (Digital Copier & Copier/Printer
Principles of Operation
Reissue
• Angle Sensor, indicating that the cover is angled approximately less than <40 degrees
from horizontal
• Reg1 Sensor, indicating when the Full Rate Sensor passes through the True Registration
Posit
ion
• One Automatic Paper Sensor (APS), indicat
ing how f
ar the document original extends
from the True Reference Position

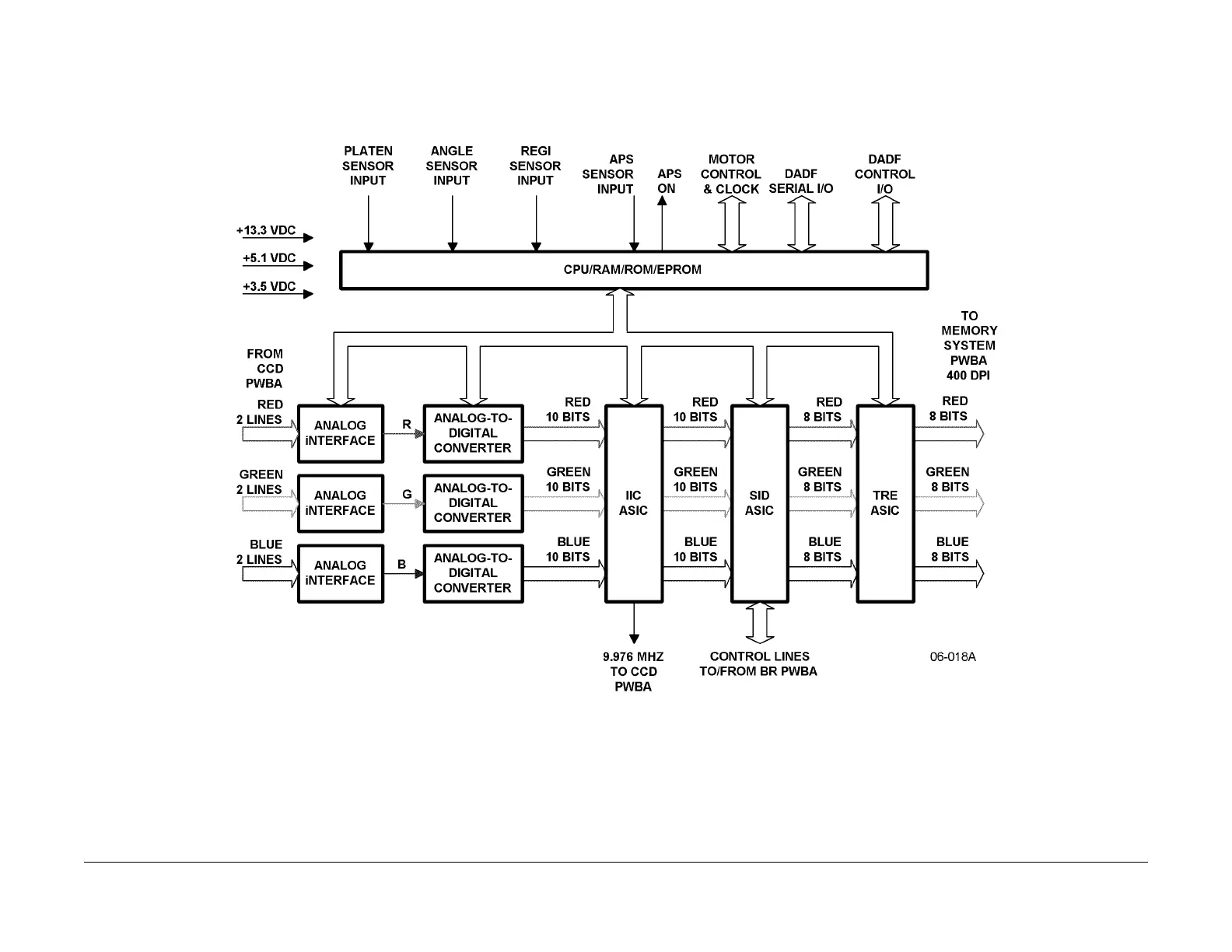

Figure 1 Pre-IPS PWBA Simplified Block Diagram
BR PWBA
The BR PWBA contains the currency detection functionality. Because disabling this functional-
ity would enable counterfeiting, no information is being given of this PWBA.
