1/05
8d-67
DocuColor 12/DCCS50
REP 15.1.8, REP 15.1.9
Finisher/Sorter
Reissue

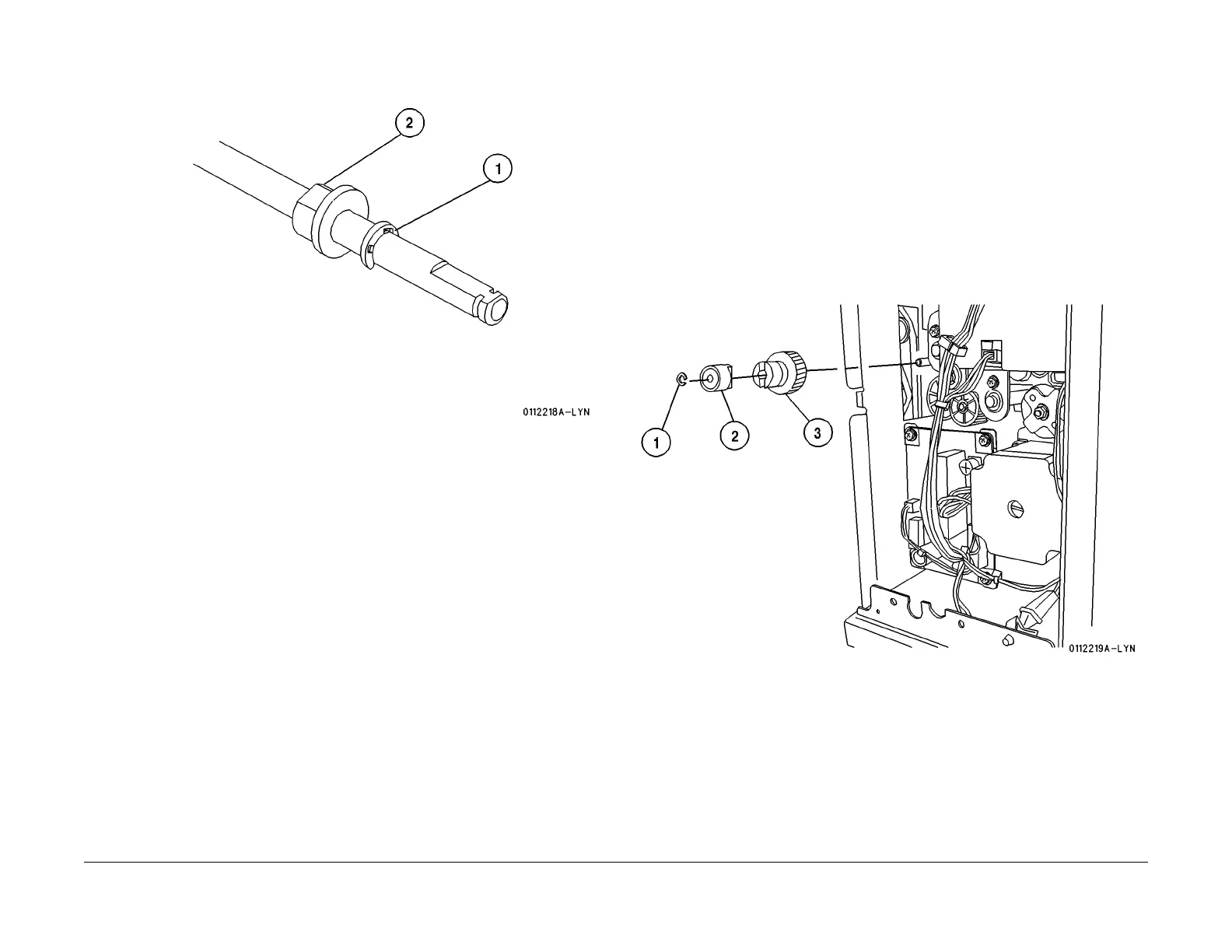

Figure 3 Remove the Bearing
Replacement
Reinstall the Cam Drive Shaft in the reverse order of disassembly.
REP 15.1.9 Torque Limiter Gear and Stopper
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Rear Cover (REP 15.3.
13).
2. Remove the Decurler Top Cover (REP 15.3.
12).
3. Remove the Torque Limiter Gear (Figure 1).
1.
Remove E-Clip.
2. Remove the Stopper.
3. Remove the Torque Limiter Gear.
Figure 1 Remove the Torque Limiter Gear
Replacement
Reinstall the Torque Limiter Gear and Stopper in the reverse order of disassembly.
To Next Page
