DocuColor 12/DCCS50
REP 15.2.23, REP 15.2.24
Reissue
Finisher/Sorter
4. Slide the front and rear bearings over the ends of the Eject Pinch Roll Shaft.
5. Reinstall the Compiler Cover Assembly.
6. Raise and lower the Compiler Cover Assembly to make sure it moves freely, and the
Stack Height
Actuator and Pinch Rolls also move freely.
7. Reinstall the Rear Lower Cover.
8. Reinstall the Stapler Cover Assembly.
REP 15.2.24 Upper Exit Chute Assembly
Parts List on PL 18.14
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stapler Cover Assembly (REP 15.3.
3).
3. Remove the Rear Lower Cover (REP 1
5.3.15).
4. Remove the Compiler Cover Assembly (REP 15.2.
22).
5. Remove the Eject Pinch Roll Shaft Assembly (REP 15.2.
23).
6. Remove the Upper Exit Chute Assembly (Figure 1).
1.
Remove the screw (1) securing the Finisher Interlock Switch Bracket to the front of
the
Finisher frame, and remove the Bracket to gain access one of the Upper Exit
Chute Assembly screws.
2. Remove the screws (2) securing the Upper Exit Chute Assembly to the front Finisher
f
rame.
3.
Remove the screws (2) securing the Upper Exit Chute Assembly to the rear Finisher
frame.
4.
Rotate the Upper Exit Chute Assembly and remove the Assembly from the Finisher.

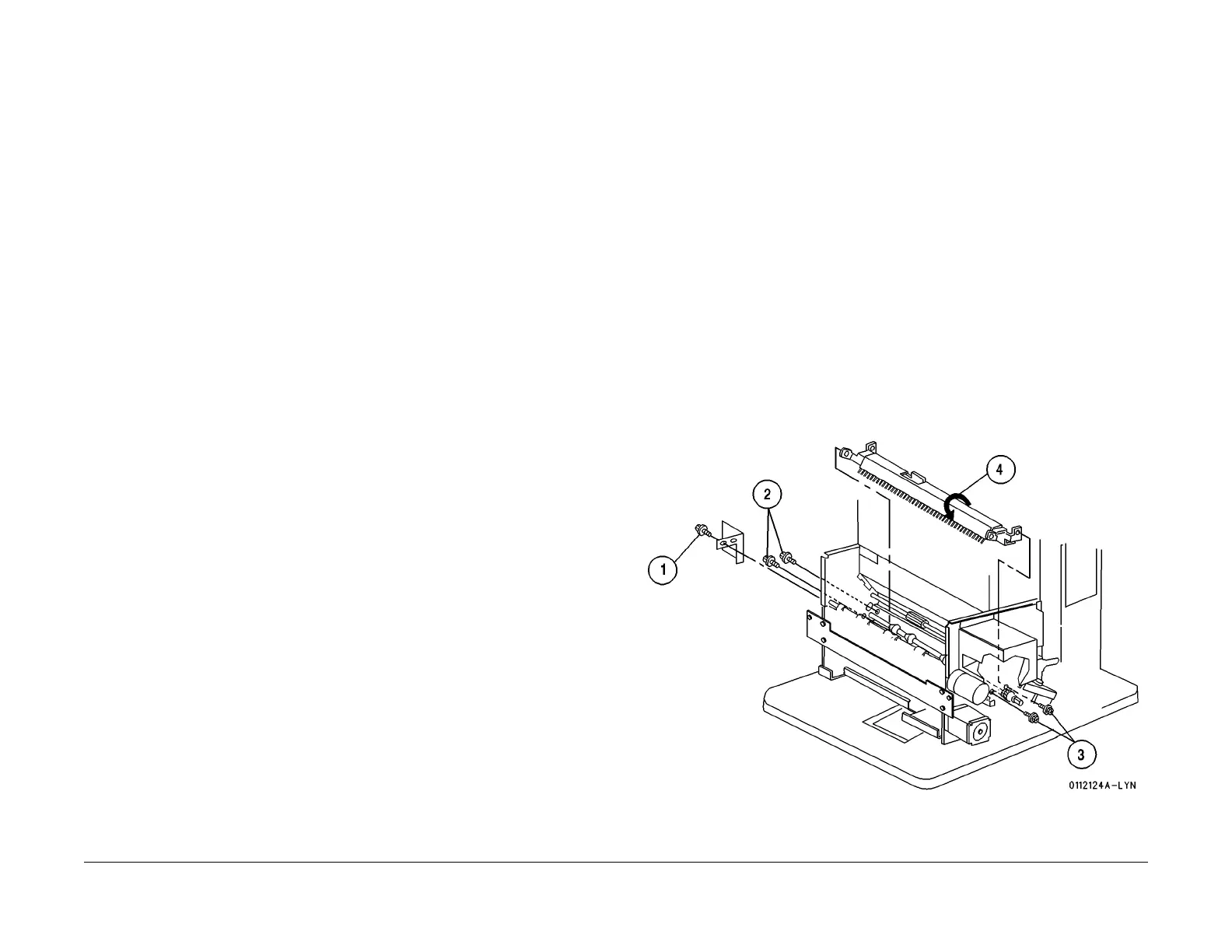

Figure 1 Remove the Upper Exit Chute Assembly
