Xerox DocuColor 12/DCCS50 User Manual

1/05
5-294
DocuColor 12/DCCS50
PL 8.8
Reissue
Parts Lists

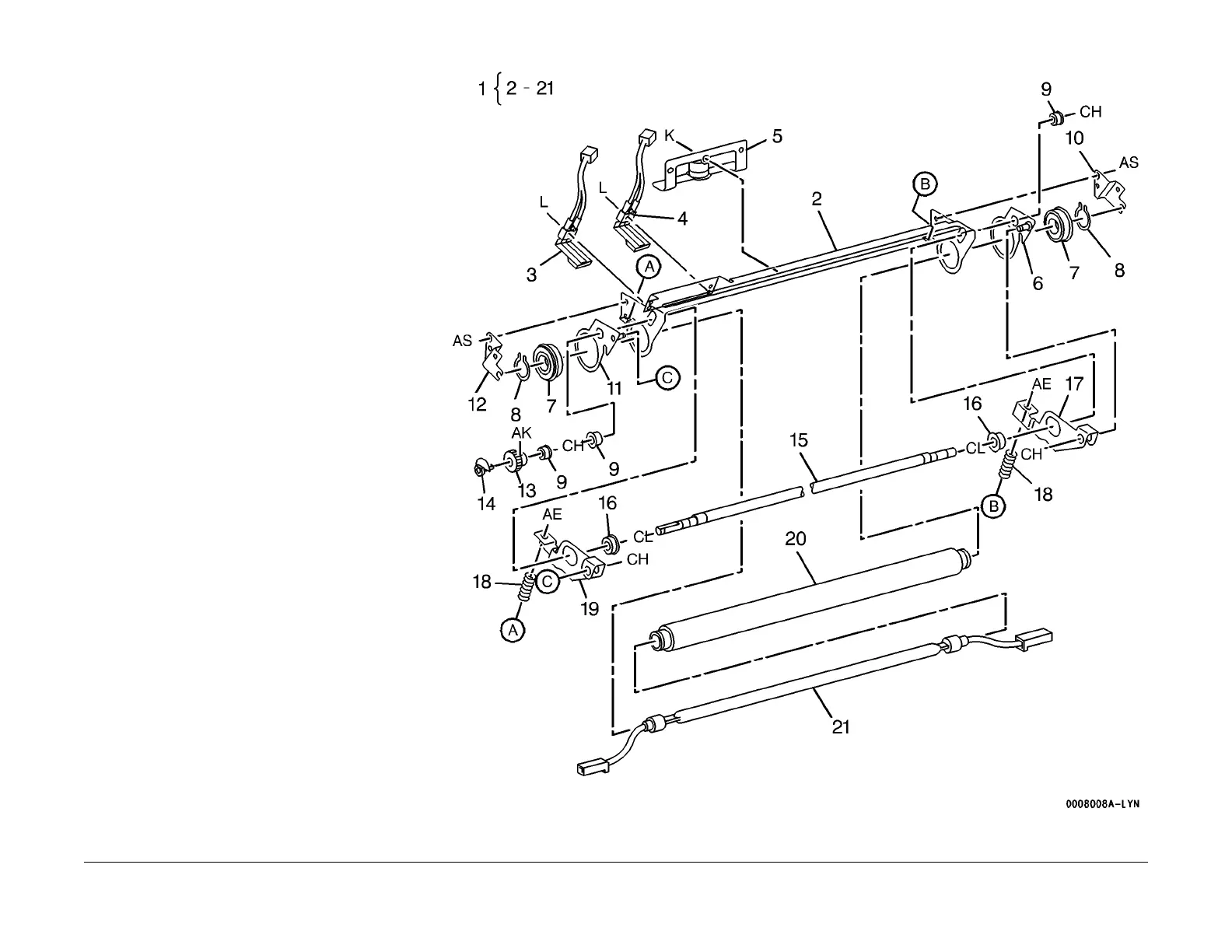

PL 8.8 External Heat Roll
Item Part Description
1 001K62603 External Heat Roll Assembly (60
Hz)
– 001K
62613 External Heat Roll Assembly (50
Hz
)
2 – Fra
me (P/O PL 8.8 Item 1)
3 130K87520 External H/R Overheat Thermistor
4 130K87500 External H/R Control Thermistor
5 130K57350 External H/R Thermostat
6 – Plate (P/O PL 8.8 Item 1)
7 013E87600 Bearing
8 – Ring (P/O PL 8.8 Item 1)
9 013E87700 Bearing
10 049E86030 Heater Rod Bracket (Rear)
11 – Plate (P/O PL 8.8 Item 1)
12 049E86040 Heater Rod Bracket (Front)
13 007K85270 Gear (18) (18 )
14 – Actuator (P/O PL 8.8 Item 1)
15 – Shaft Cam (P/O PL 8.8 Item 1)
16 013E87620 Bearing
17 – Lever (Rear) (P/O PL 8.8 Item 1)
18 809E06770 Spring
19 – Lever (Front) (P/O PL 8.8 Item 1)
20 059E92780 External Heater Roll (REP
8.
8.2,
ADJ 8.8.1)
21 126K07980 External H/R Heater Rod (60 Hz)
(RE
P 8.
8.1 )
– 126K08530 External H/R Heater Rod (50 Hz)
(RE
P 8.
8.1 )
