1/05

5-277

DocuColor 12/DCCS50

PL 6.7

Parts Lists

Reissue

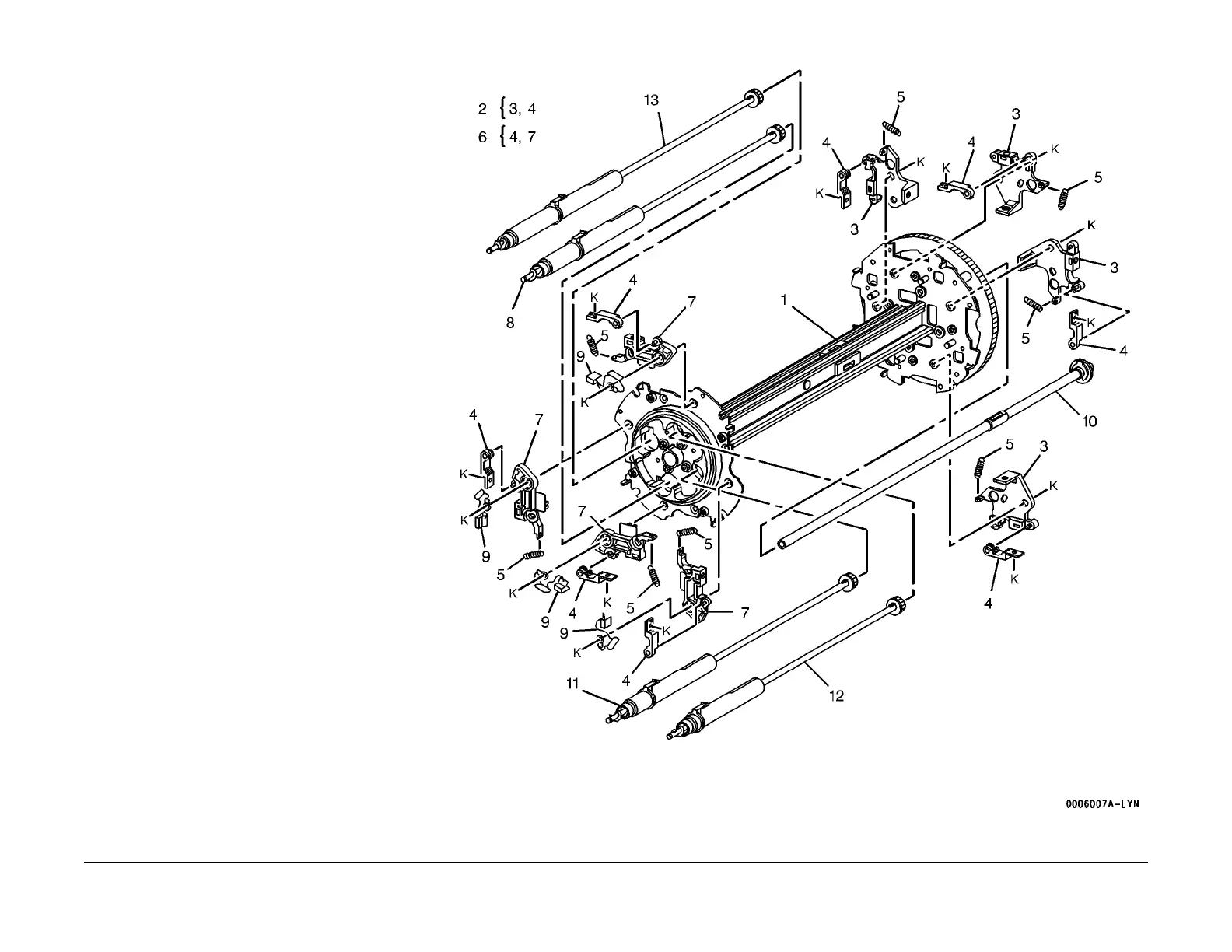

PL 6.7 Rotary Frame/Auger

Item Part Description

1 – Rotary Frame (Not Spared)

2 019K94230 Holder Assembly (Rear)

3 – Holder (P/O PL 6.7 Item 2)

4 019E33780 Clamp

5 809E06550 Spring

6 019K94221 Holder Assembly (Front)

7 – Holder (P/O PL 6.7 Item 6)

8 106K90660 Rotary Auger (Y) (REP 6.7.1)

9 – Brush (Not Spared)

10 052K91470 Trickle Auger (REP 6.7.2 )

11 106K90650 Rotary Auger (M) (REP 6.7.1 )

12 106K90640 Rotary Auger (C) (REP 6.7.1)

13 106K90670 Rotary Auger (K) (REP 6.7.1)
