DocuColor 12/DCCS50

PL 2.9

Reissue

Parts Lists

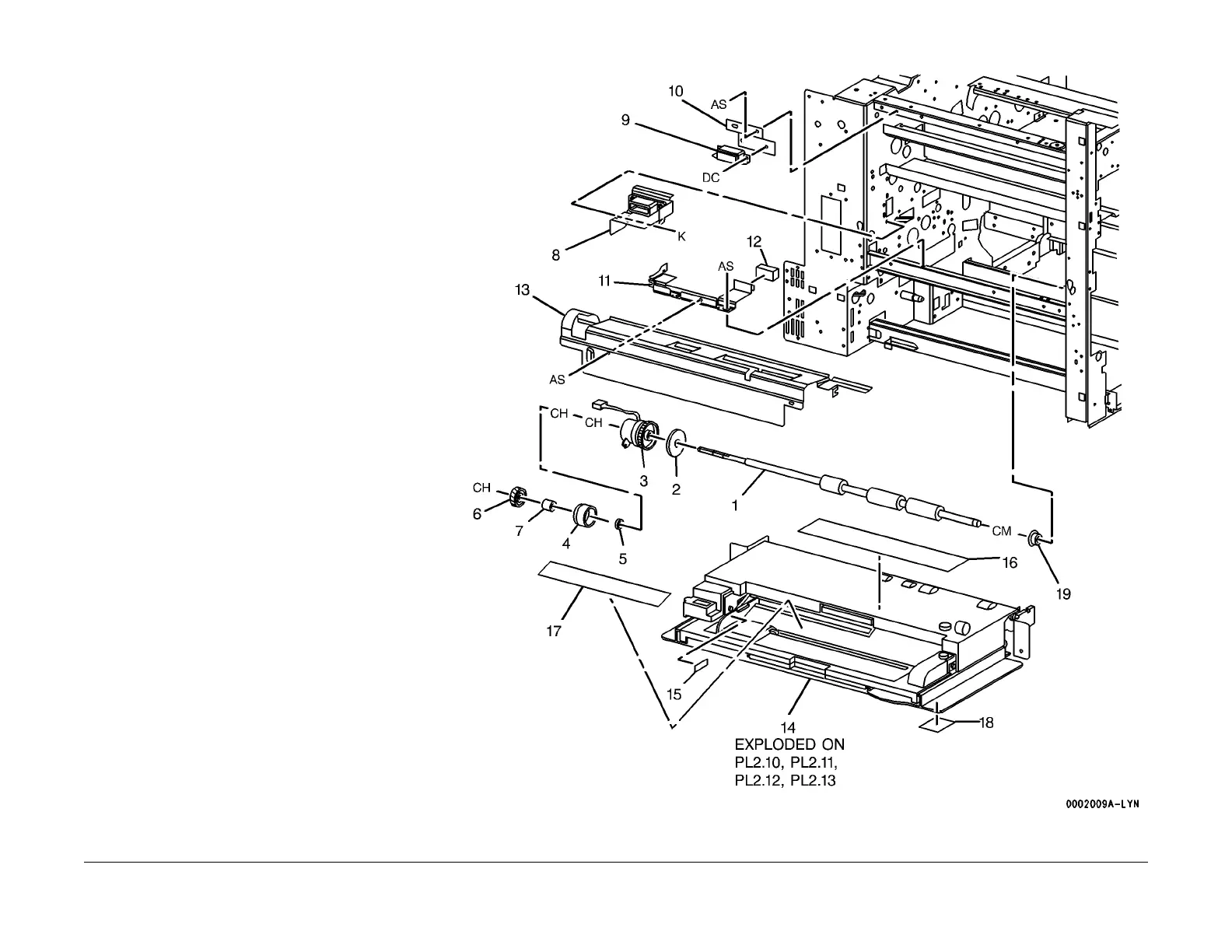

PL 2.9 Tray 5 Unit, Tray 5 Feed

Clutch/Roll

Item Part Description

1 059K08821 Tray 5 Feed Roll

2 – Collar (Not Spared)

3 121K17550 Tray 5 Feed Clutch

4 113E22970 Holder

5 – Bearing (Not Spared)

6 – Gear (Not Spared)

7 – Core (Not Spared)

8 114E11400 Connector (P703)

9 121E89780 Magnet

10 830E09840 Bracket

11 830E17961 Stopper Plate

12 – Pad (Not Spared)

13 – Chute (Not Spared)

14 059K31171 Tray 5 Assembly (REP 2.9.1 )

15 891E51581 Label (Max)

16 891E73914 Label (Installation)

17 891E73982 Label (Size)

18 891E73971 Label (5)

19 – Bearing (Not Spared)
