1/05
8d-121
DocuColor 12/DCCS50
REP 15.3.18
Finisher/Sorter
Reissue
REP 15.3.18 Stapler Rail Belt
Parts List on PL 18.18
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Disconnect the Finisher from the Printer (REP 1
5.3.1).
3. Remove the Stapler Cover (REP 15.3.3).
4.
Remove the Rear Lower Cover REP 15.3.
15.
5. Remove the Stapler Assembly (REP 15.3
.16).
6. Remove the Stacker Tray Assembly (REP 15.2.
2).
7. At the rear of the Finisher, prepare to remove the Stapler Position Sensors by rotating the
Stapl
er Position Motor Drive Belt as you slip the Belt off of the Drive Pulley.
8. Remove the Stapler Rail (Figure 1).
1.
Disconnect the three connectors from the St
apler Sensors, and free the wire har-
nesses from the harness clip that is located on the Stapler Rail.
2. Remove two screws at the rear of the Finisher and two screws at the front of the
Finishe
r that secure the Stapler Rail to the Finisher frame, and remove the Rail.
3. Place the Stapler Rail on a flat work surface.

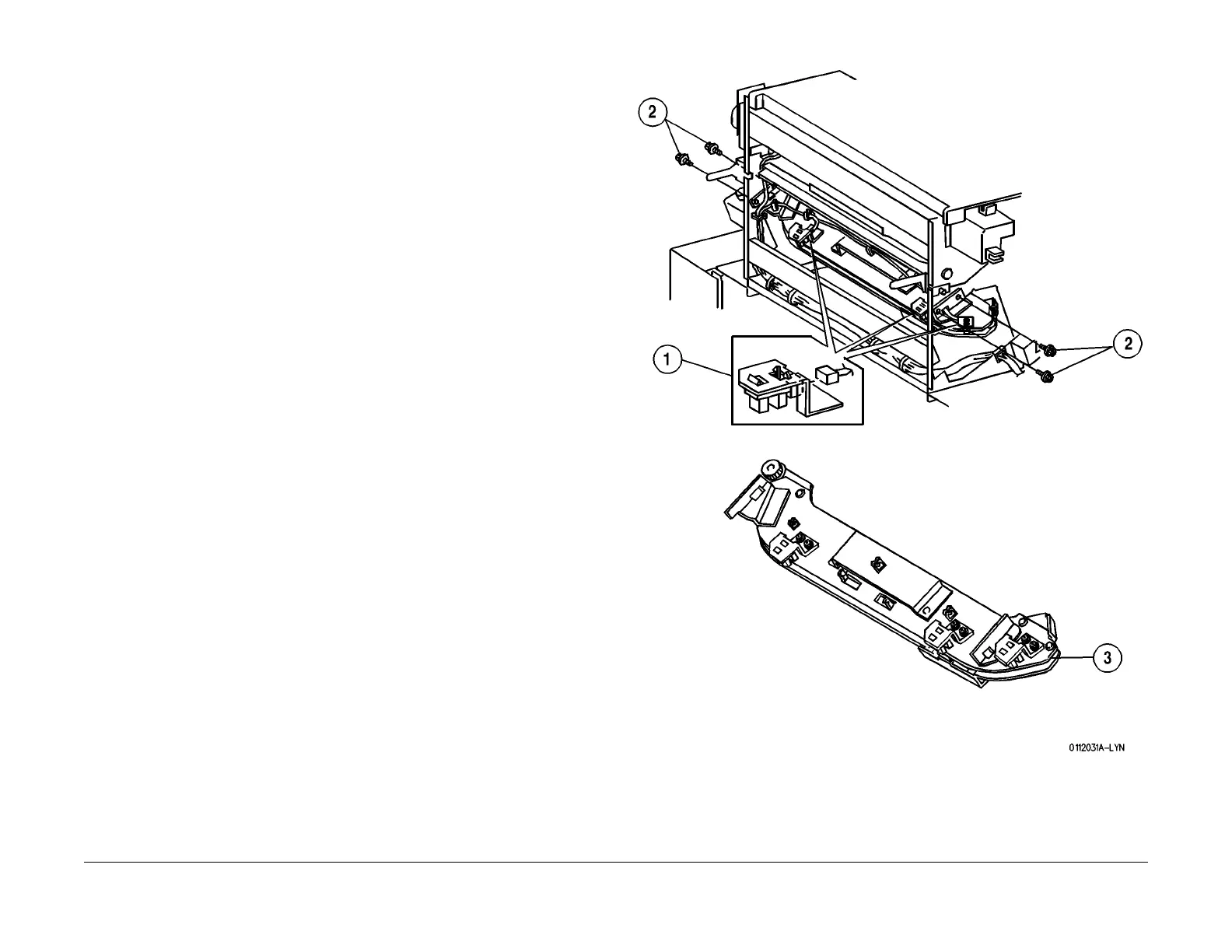

Figure 1 Remove the Stapler Rail
9. Remove the Stapler Rail Belt (Figu
re 2).
1. Remove the two screws securing the Tension Cover to the Rail, and remove the
Cover.
To Next Page
