1/05
8d-120
DocuColor 12/DCCS50
REP 15.3.17
Reissue
Finisher/Sorter

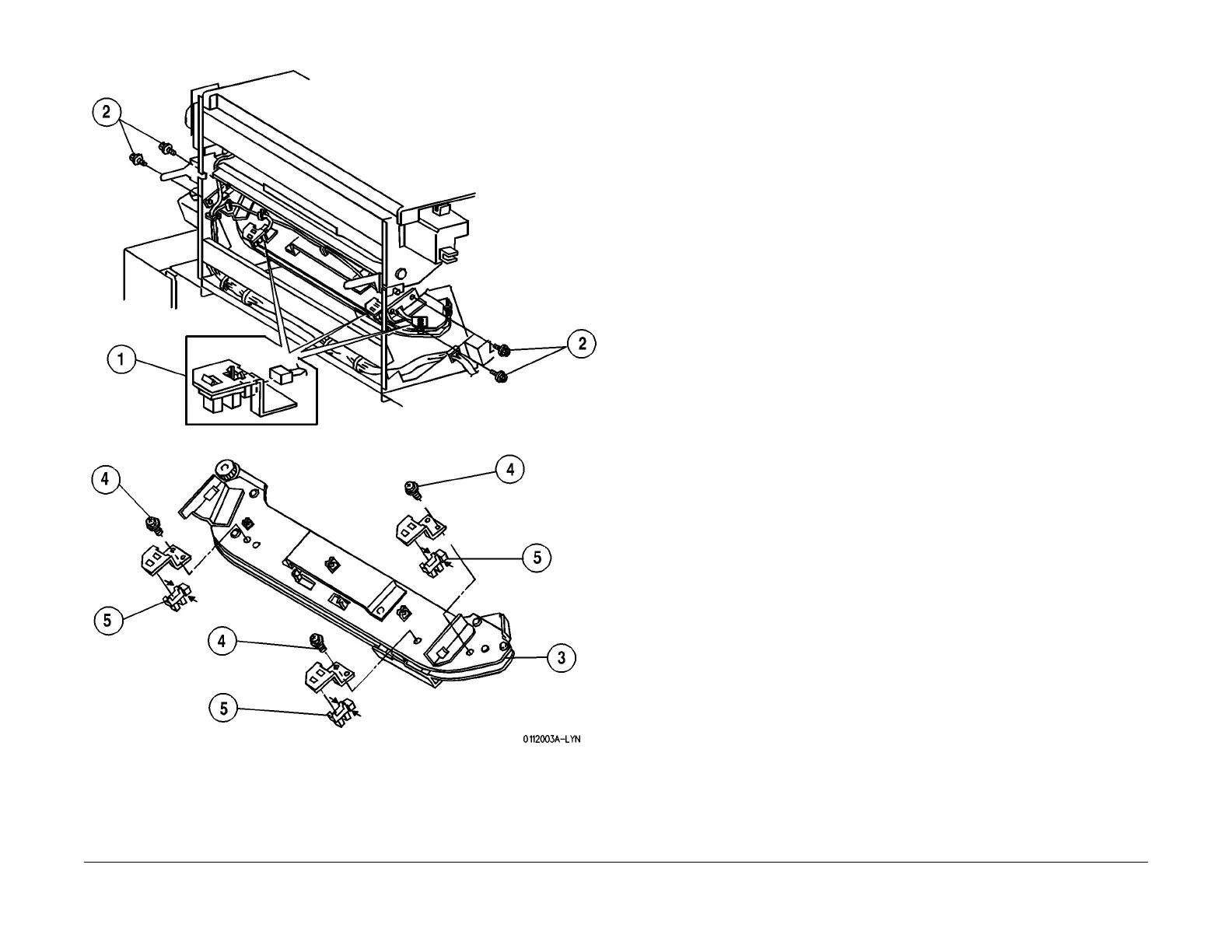

Figure 1 Remove the Stapler Position Sensors
Replacement
1. Position the Sensor into the Sensor cutout in the Sensor Bracket.
2. Reinstall the Sensor Bracket onto the Stapler Rail, and use one screw to secure the
Bracket t
o the Rail.
3. Reinstall the Stapler Rail into the Finisher frame. Use four screws to secure the Rail to
the
frame.
4. Reconnect the three connectors to t
he three sensors.
5. Route the wire harness through the harness clips that
are located on the Stapler Rail.
6. Rotate the Stapler Transport Motor Drive Belt as you slip
the Belt onto the Drive Pulley.
7. Reinstall the Stapler Assembly.
8. Reinstall the Rear Lower Cover.
9. Reinstall the Stapler Cover.
10. Reconnect the Finisher to the Printer
