Xerox DocuColor 12/DCCS50 User Manual

1/05
4-17
DocuColor 12/DCCS50
REP 2.1.1, REP 2.1.2
Repairs and Adjustments
Reissue
REP 2.1.1 Tray 1 Set Sensor
Parts List on PL 2.1
Removal
WARNING
Turn the power off and disconnect the power plug.
1. Remove trays 1 and 2 to allow easy access (PL 2.1 It
em 4).
2. Remove the Tray 1 Set Sensor (Figu
re 1).
1. Disconnect the connector.
2. Remove the screw.
3. Remove the Tray 1 Sensor.

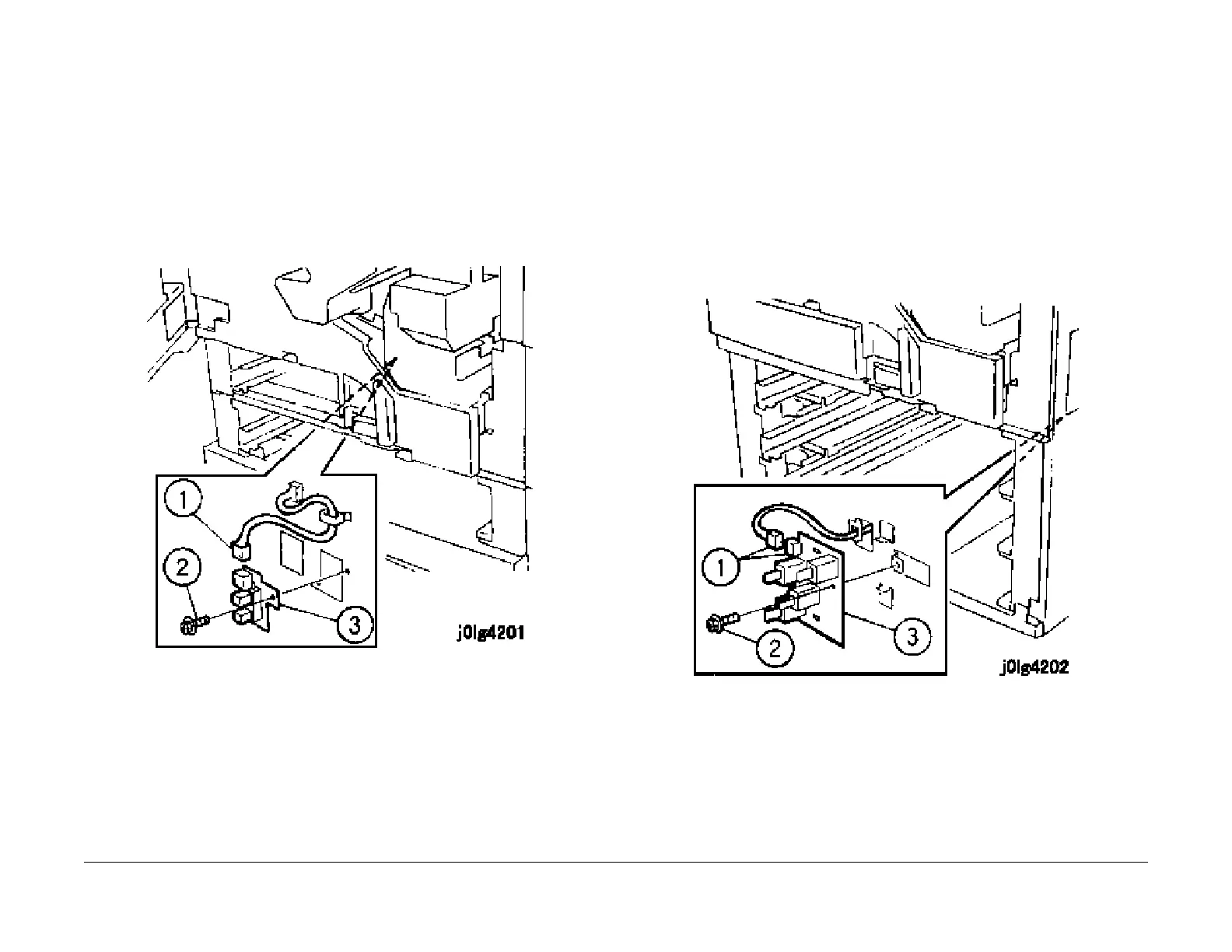

Figure 1 Removing the Tray 1 Set Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.1.2 Tray 2/3/4 Size Sensor
Parts List on PL 2.1
Removal
NOTE: This page describes how to remove the Tray 2 Sensor.
WARNING
Turn power off and disconnect the power plug.
1. Remove Trays 1 through 4 to allow easy access (PL 2.
1 Item 4).
2. Remove the Tray 2 Size Sensor (Figure 1).
1.
Disconnect the connector.
2. Remove the screw.
3. Remove the Tray 2 Size Sensor.
Figure 1 Removing the Tray 2 Size Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
