Xerox DocuColor 12/DCCS50 User Manual

1/05
4-111
DocuColor 12/DCCS50
REP 7.10.1
Repairs and Adjustments
Reissue
REP 7.10.1 2nd BTR Roll
Parts List on PL 7.10
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the 2nd BTR (REP 7.
9.1).

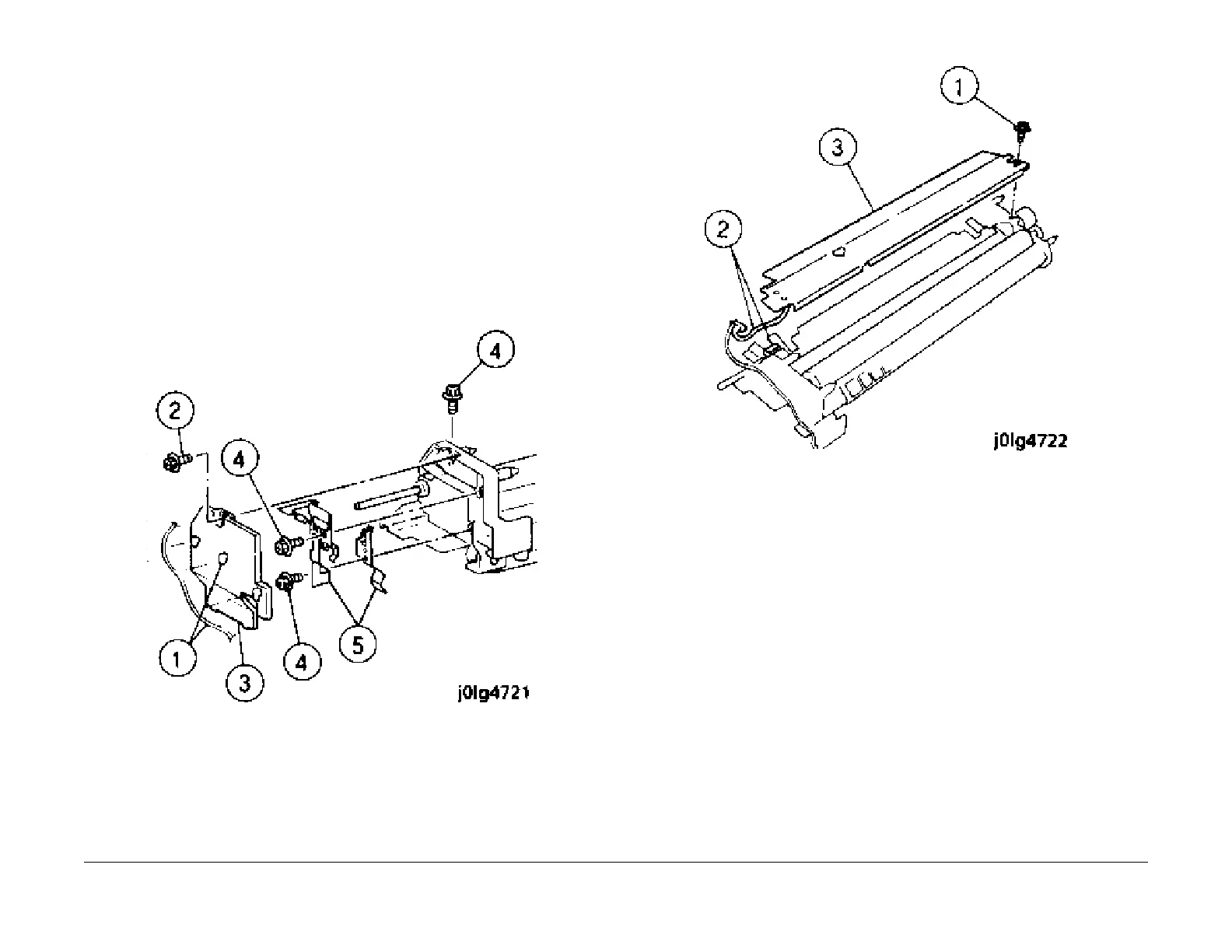

3. Remove the cover (Figure 1
).
1. Remove the wire from the hooks (3).
2. Remove the screw.
3. Remove the cover.
4. Remove the screws (3).
5. Remove the plate grounds (2).
Figure 1 Remove the Cover
4. Remove the Inlet Plate (F
igure 2).
1.
Remove the screw.
2. Remove the wire from the hook.
3. Remove the Inlet Plate.
Figure 2 Remove the Inlet Plate
5. Remove the gears (Figure 3).
1.
Remove the E-clips (2).
2. Remove the gears (2).
