Xerox DocuColor 12/DCCS50 User Manual

1/05
4-110
DocuColor 12/DCCS50
REP 7.9.1
Reissue
Repairs and Adjustments
2. Remove the Cartridge Guide.
3. Remove the indicator.

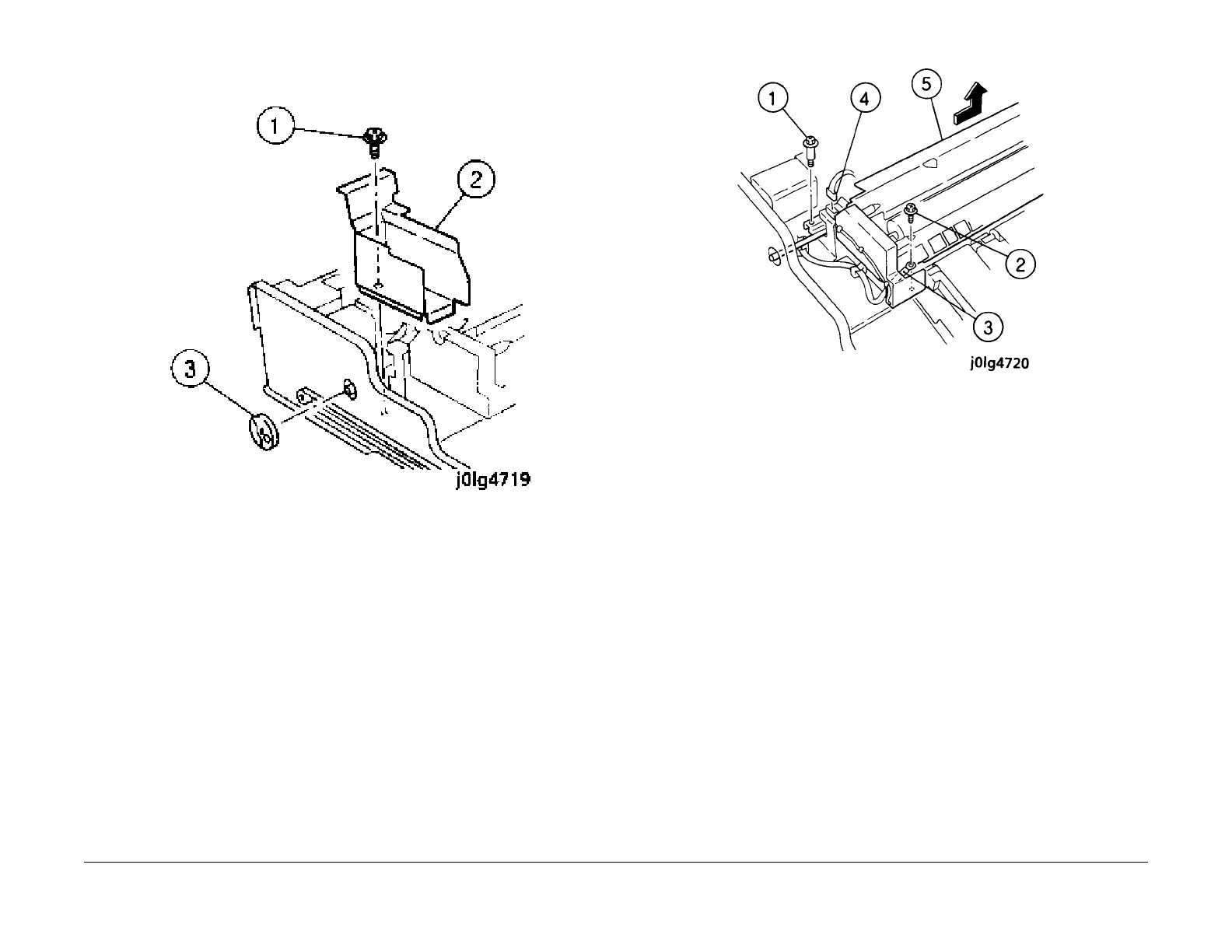

Figure 2 Remove the Indicator
6. Remove the 2nd BTR (Figure 3
).
1. Remove the screw.
2. Remove the screw.
3. Pull out the ground wire from the hole.
4. Disconnect the connector.
5. Remove the 2nd BTR.
Figure 3 Remove the 2nd BTR
Installation
CAUTION
Be sure to rotate the drive shaft on the 2nd BTR to move the BTR Roll to the down position
before cl
osing the Drawer Assembly.
1. Reinstall the parts in the reverse order of disassembly.
