DocuColor 12/DCCS50
REP 9.3.2
Repairs and Adjustments
Reissue
REP 9.3.2 IOT LVPS
Parts List on PL 9.3
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Tray Module Rear Cover (PL 11
.3).

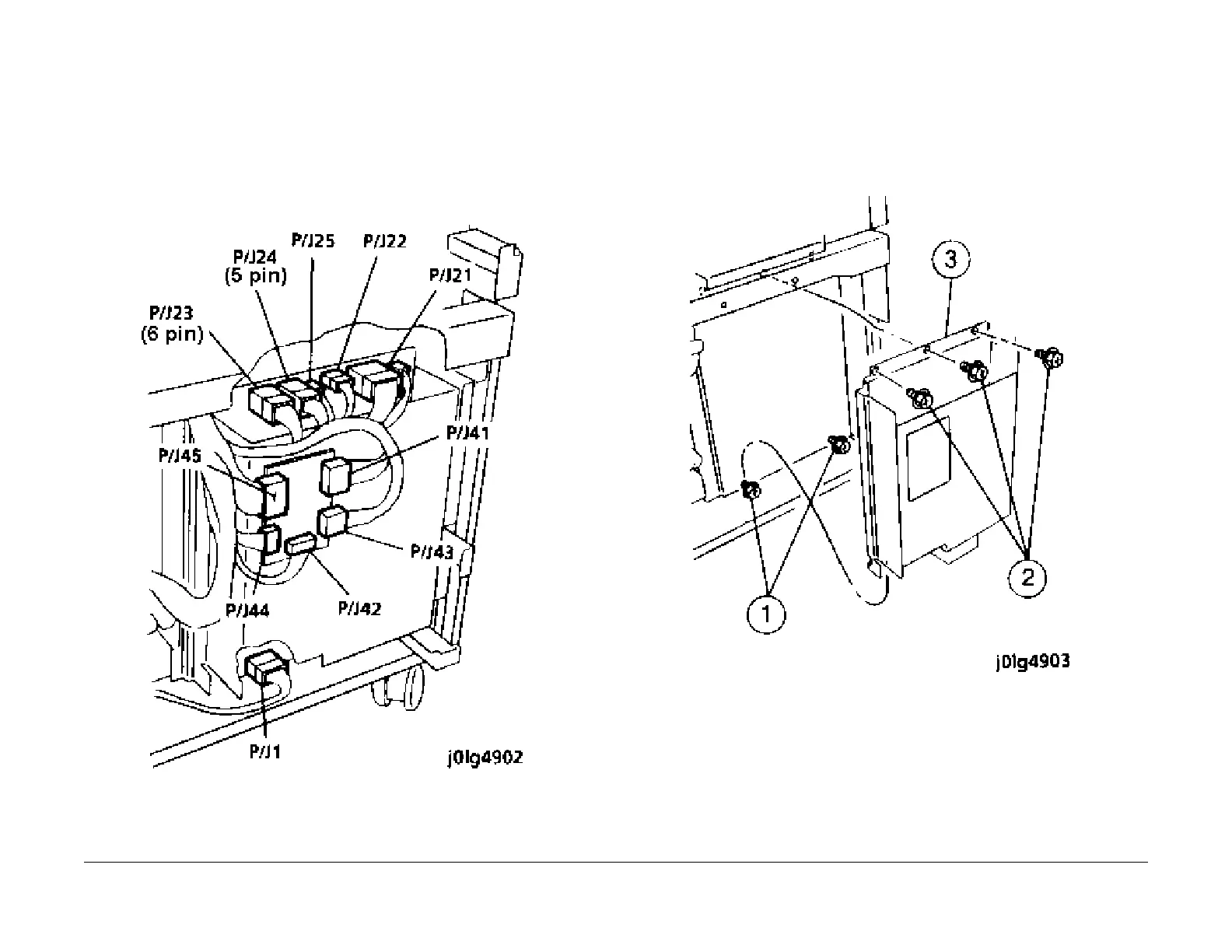

2. Disconnect the IOT LVPS connectors (11) (Figure 1
).
Figure 1 Disconnect the IOT LVPS Connectors
3. Remove the IOT LVPS (Figu
re 2).
1. Loosen the screws (2).
2. Remove the screws (3).
3. Remove the IOT LVPS.
Figure 2 Remove the IOT LVPS
Installation
1. Reinstall the parts in the reverse order of disassembly.
