1/05
4-132
DocuColor 12/DCCS50
REP 8.7.2
Reissue
Repairs and Adjustments
REP 8.7.2 Oil Wick
Parts List on PL 8.7
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
NOTE: After replacing the Oil Wick, reset the HFSI counter. Enter the dC135 HFSI
Counter
List Diag. Screen (010-814).
1. Open the Front Door.
2. Remove the Fuser Unit (REP 8.1.
1).
3. Remove the following parts:
a. Front Cover (PL 8.
1)
b. Top Cover (PL 8.
2)

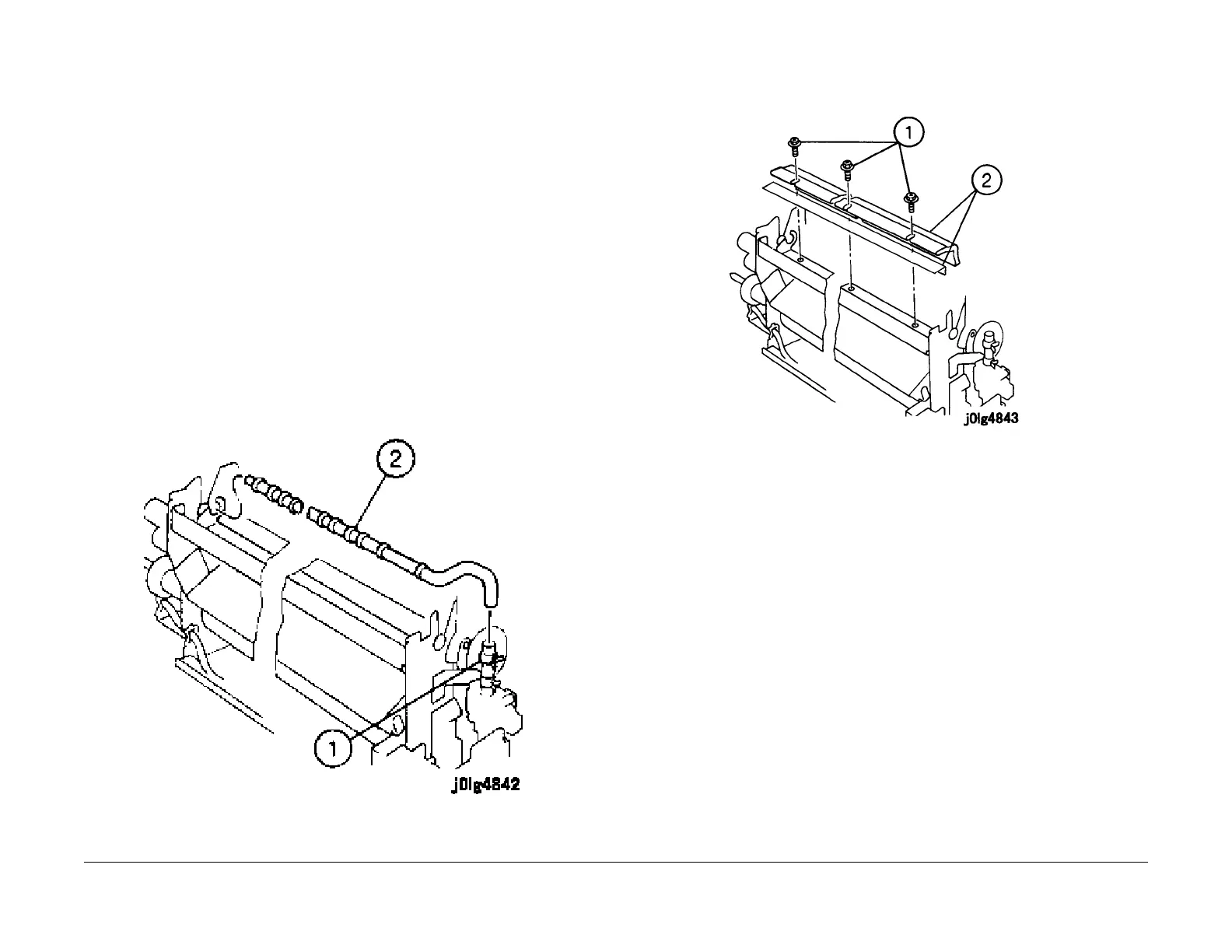

4. Remove the Oil Pipe (Figu
re 1).
1. Loosen the clamp.
2. Remove the Oil Pipe.
Figure 1 Remove the Oil Pipe
5. Remove the Oil Wick (Figure 2
).
1. Remove the screws (3).
2. Remove the Oil Wick and, if present, the backup plate.
Figure 2 Remove the Oil Wick
Installation
1. Reinstall the parts in the reverse order of disassembly.
2. Perform the Standard Fuser Break-In Procedure (GP
1 Fuser Break-In Procedure).
