REP 12.4.3 Feed Roll
Parts List on PL 12.4
Removal
NOTE: After replacing the Feed Roll, reset the HFSI counter. Enter the dC135 HFSI Counters
Diag. Screen (NVM 005-805).
NOTE: Replace the Feed Roll and the Nudger Rolls at the same time.
WARNING
Turn power off and disconnect the power plug.
1. Open the Top Cover and remove the Inner Cover (Figur
e 1).
1. Open the Top Cover.
2. Loosen the screws (2).
3. Remove the Inner Cover.

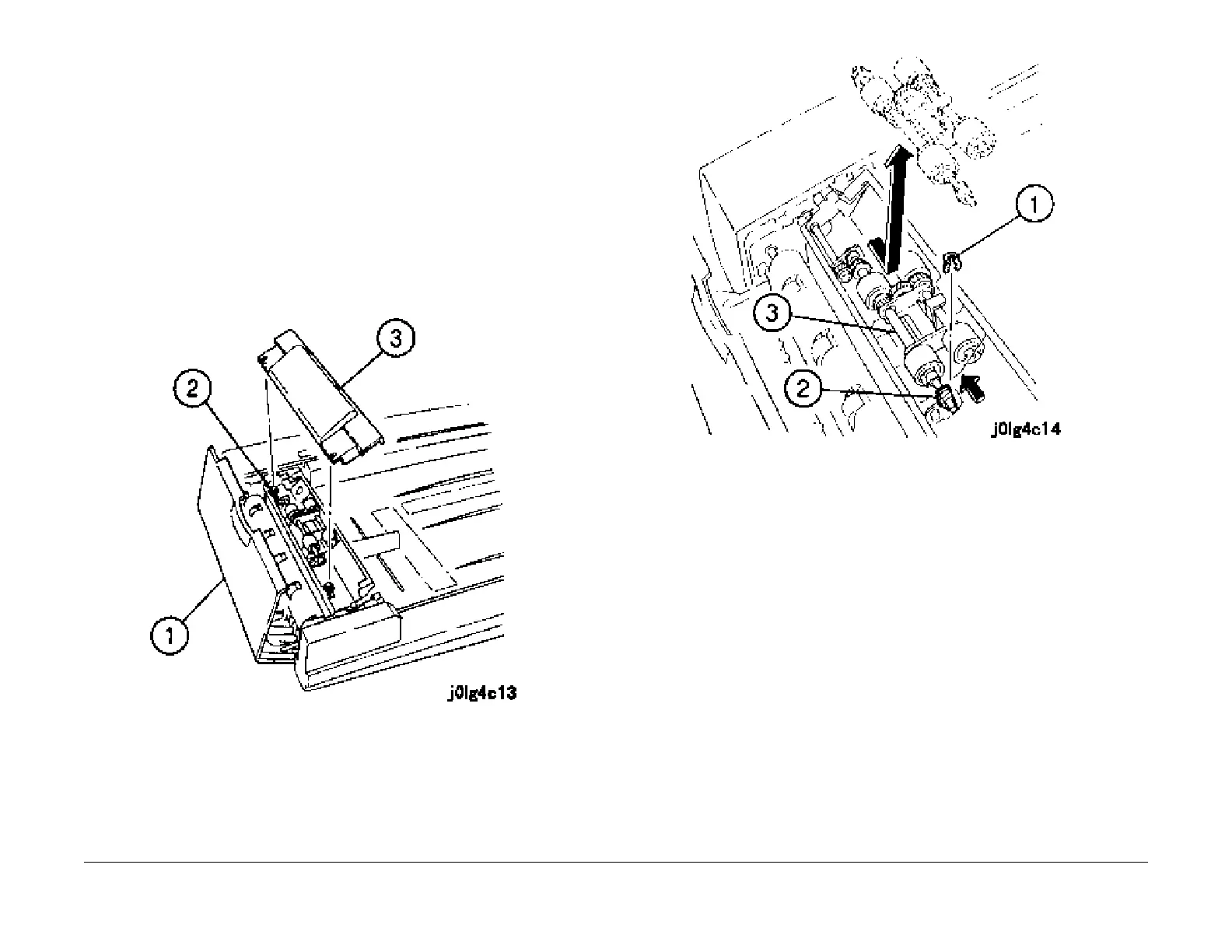

Figure 1 Remove the Inner Cover
2. Remove the Feed Roll Assembly (Figure 2).
1.
Remove the KL-clip.
2. Slide the bearing.
3. Remove the Feed Roll Assembly.
Figure 2 Remove the Feed Roll Assembly
3. Remove the Feed Roll (F
igure 3).
1.
Remove the bearing.
2. Remove the gear.
3. Remove the KL-clips (2).
4. Remove the Feed Roll.
