1/05

5-301

DocuColor 12/DCCS50

PL 9.5

Parts Lists

Reissue

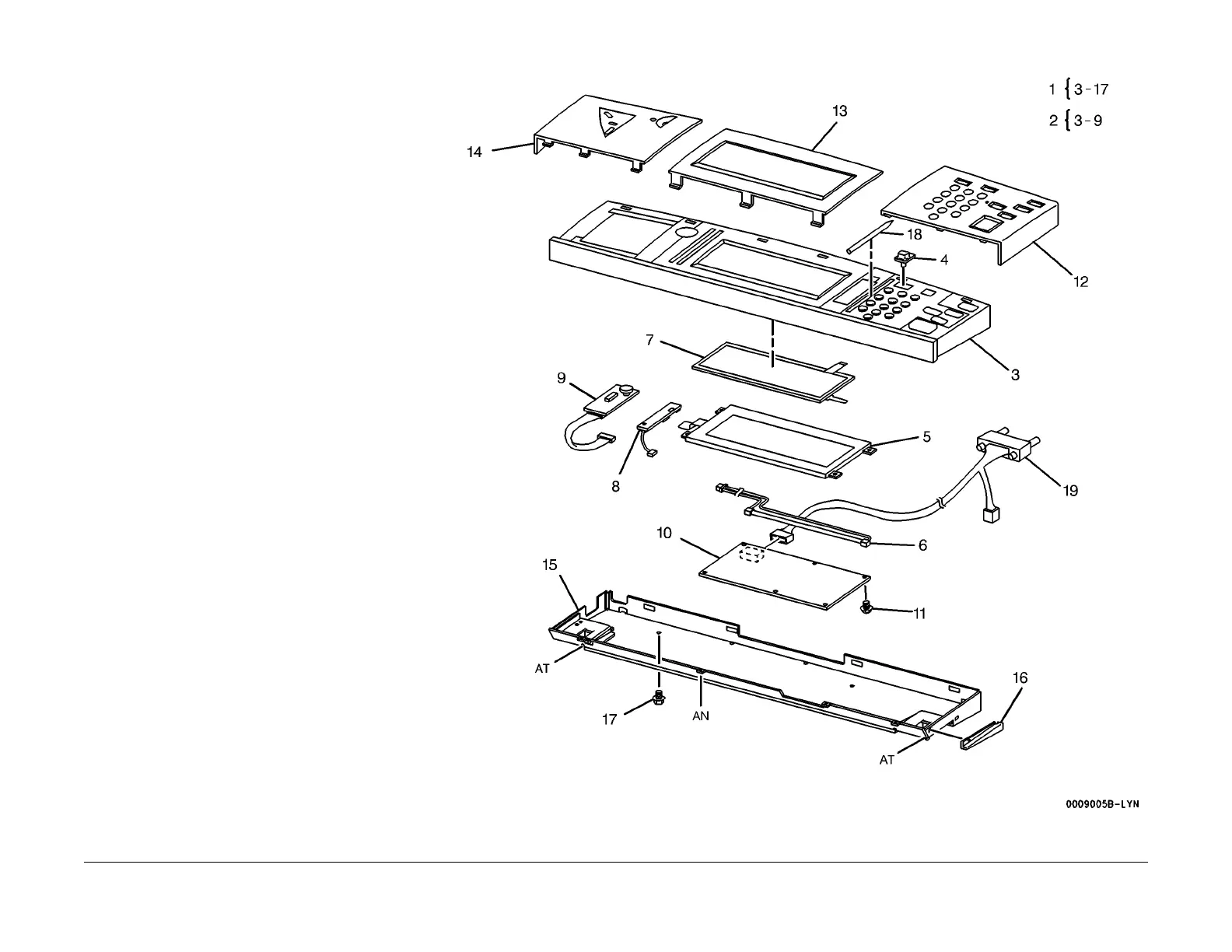

PL 9.5 Control Panel

Item Part Description

1 048K77776 Control Panel Assembly (W/TAG

P24) (REP

9.5.1 )

2 802K31691 Control Panel Housing Assembly

3 – Panel Housing (P/O PL 9.5 Item 2)

4 – Set Key (P/O PL 9.5 Item 2)

5 – Display (P/O PL 9.5 Item 2)

6 – Lamp (P/O PL 9.5 Item 2)

7 – Touch Panel (P/O PL 9.5 Item 2)

(AD

J 9.

1.18 )

8 – Power Supply (P/O PL 9.5 Item 2)

9 – VR PWB (P/O PL 9.5 Item 2)

10 600K83650 UI PWB Kit (W/TAG P24)

11 – Screw (P/O PL 9.5 Item 1)

12 – Panel (Right) (P/O PL 9.5 Item 1)

13 – Panel (Center) (P/O PL 9.5 Item 1)

14 – Panel (Left) (P/O PL 9.5 Item 1)

15 – Bottom Plate (P/O PL 9.5 Item 1)

16 – Cover (P/O PL 9.5 Item 1)

17 – Screw (P/O PL 9.5 Item 1)

18 – Adjust Pen (Not Spared)

19 – Wire Harness (Edit Pad) (Not

ed)
