Xerox DocuColor 12/DCCS50

1/05
5-304
DocuColor 12/DCCS50
PL 10.2
Reissue
Parts Lists

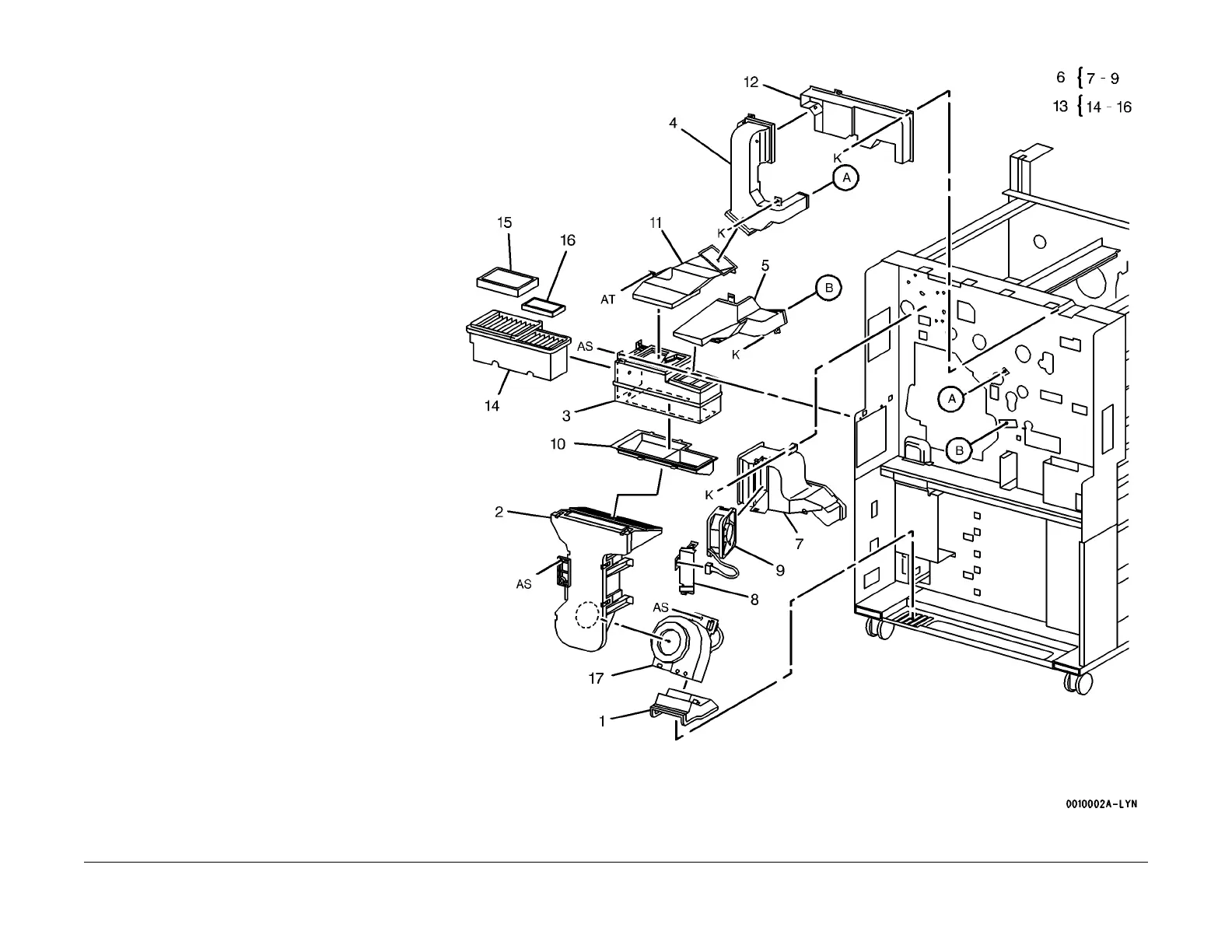

PL 10.2 Air System-Rear, Right
Item Part Description
1 – Duct (Not Spared)
2 – Duct (Not Spared)
3 – Filter Case (Not Spared)
4 – Duct (Rotary Deve.) (Not Spared)
5 – Vacuum Transport Duct (Not
Sp
ar
ed)
6 127K21770 Fuser Fan and Duct Assembly
7 – Duct Fuser (P/O PL 10.2 Item 6)
8 – Fan Cover (P/O PL 10.2 Item 6)
9 127K21780 Fuser Fan (REP 10.2.1 )
10 – Duct (Not Spared)
11 – Duct (Not Spared)
12 – Duct (Xero. Module) (Not Spared)
13 – Filter Assembly (Not Spared)
14 053K91410 Filter (Suction)
15 053K91420 Filter (Ozone)
16 053K91430 Filter (Ozone)
17 127K21822 Suction Blower Motor (REP 10.2.2
)
