Xerox DocuColor 12/DCCS50 User Manual

1/05
4-47
DocuColor 12/DCCS50
REP 2.23.2
Repairs and Adjustments
Reissue
REP 2.23.2 Inverter 2
Parts List on PL 2.23
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Right Upper Cover (PL 11
.2 Item 1)
b. Exit Tray (PL 2.2
3 Item 11)
2. Open the Inverter 2.
3. Remove the Inverter Cover (Figu
re 1).
1. Remove the screws (3).
2. Lift the Inverter Cover and remove it.

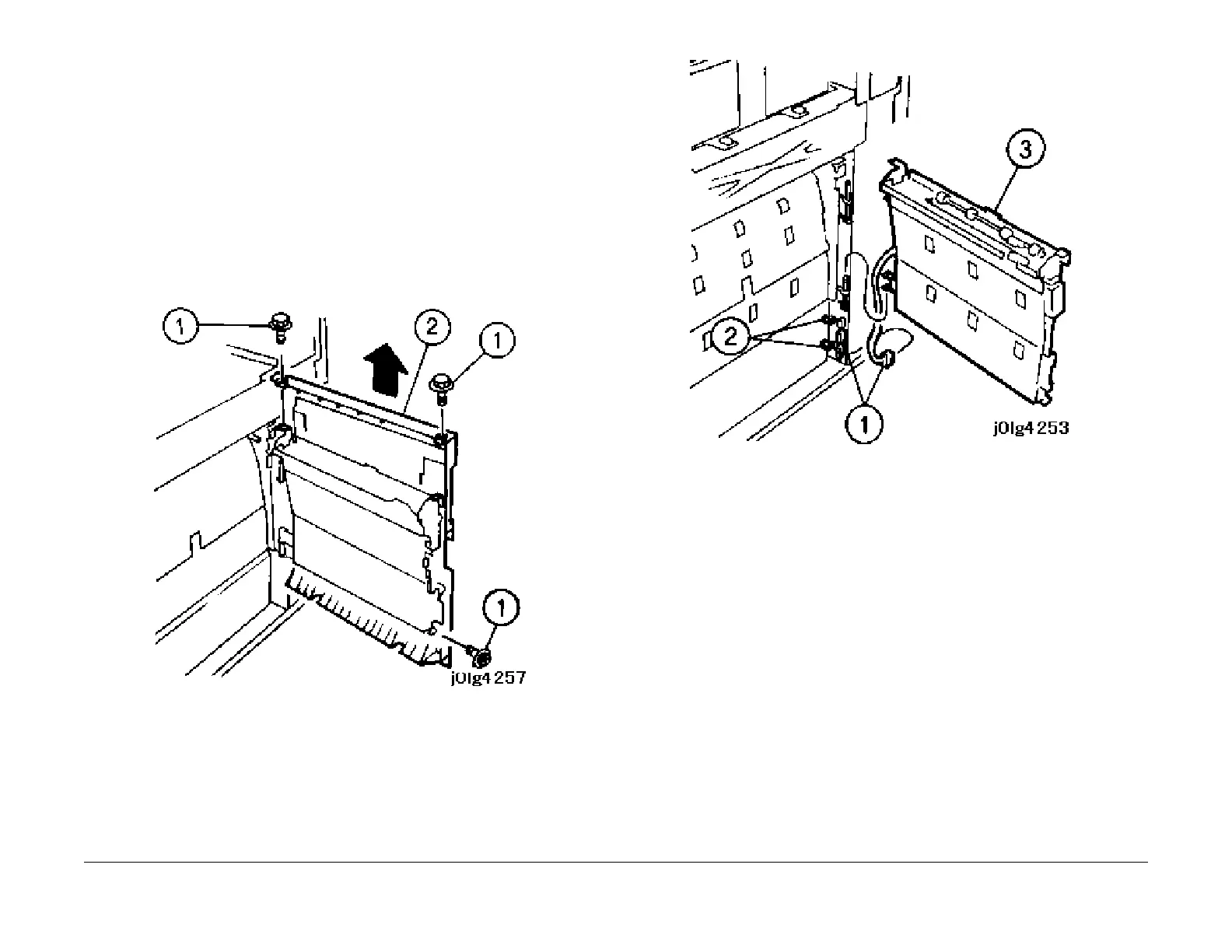

Figure 1 Removing the Inverter Cover
4. Remove the Inverter 2 (Figu
re 2).
1. Disconnect the connector.
2. Release the clamps (2) and remove the wire.
3. Remove the Inverter 2.
Figure 2 Removing the Inverter 2
NOTE: Ensure that the 5 tabs on the cover correctly latch into the Inverter before tighten-
ing the mounting screws.
5. Reinstall the parts in the reverse order of disassembly.
