1/05
4-46
DocuColor 12/DCCS50
REP 2.23.1
Reissue
Repairs and Adjustments

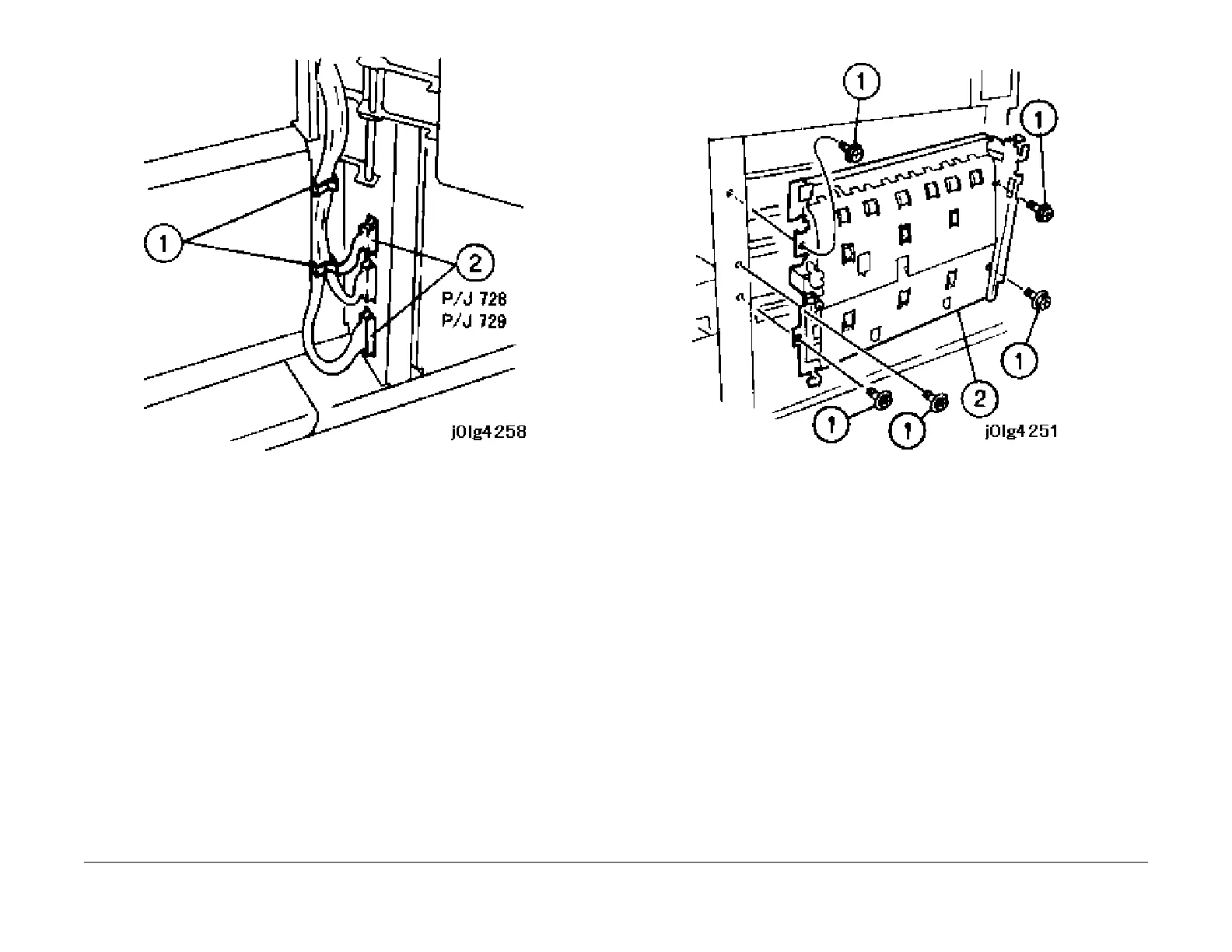

Figure 2 Disconnecting the connector
6. Remove the Inverter 1 (Figu
re 3).
1. Remove the screws (5).
2. Lift the Inverter 1 and remove it.
Figure 3 Removing the Inverter 1
Installation
1. Reinstall the parts in the reverse order of disassembly.
