Parts Lists

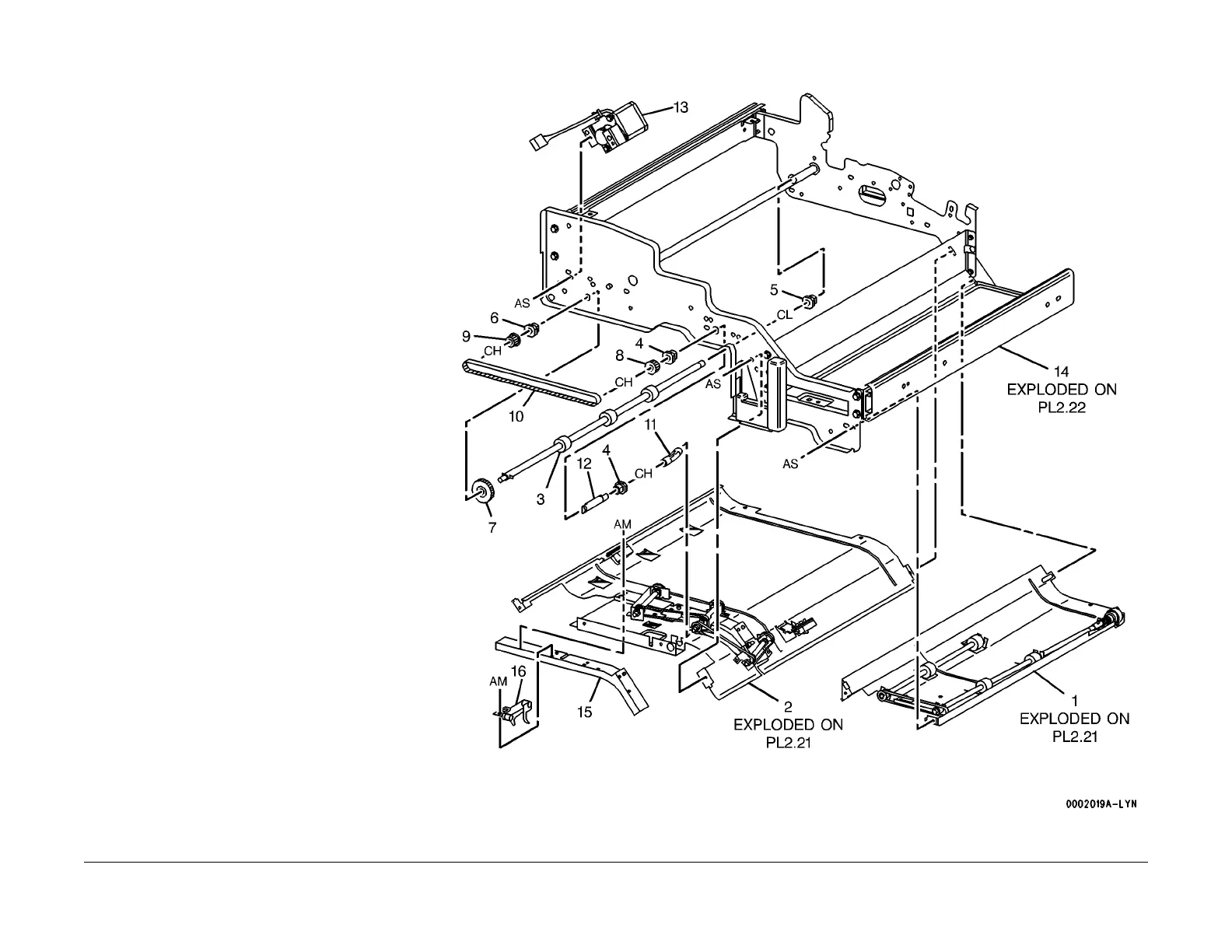

PL 2.19 Drawer Frame, Duplex Out

Motor/Roll, Duplex Chute

Item Part Description

1 054K11363 Duplex In Chute Assembly

2 054K11373 Aligner Chute Assembly

3 059K08600 Duplex Out Roll

4 – Bearing (Not Spared)

5 – Bearing (Not Spared)

6 – Bearing (Not Spared)

7 007E51840 Gear

8 – Pulley (Not Spared)

9 – Pulley (Not Spared)

10 423W82555 Belt

11 011K90420 Joint

12 – Shaft (Not Spared)

13 127K23191 Duplex Out Motor

14 050K34065 Drawer Frame Assembly

15 038E89072 Paper Guide

16 – Link (Not Spared)
