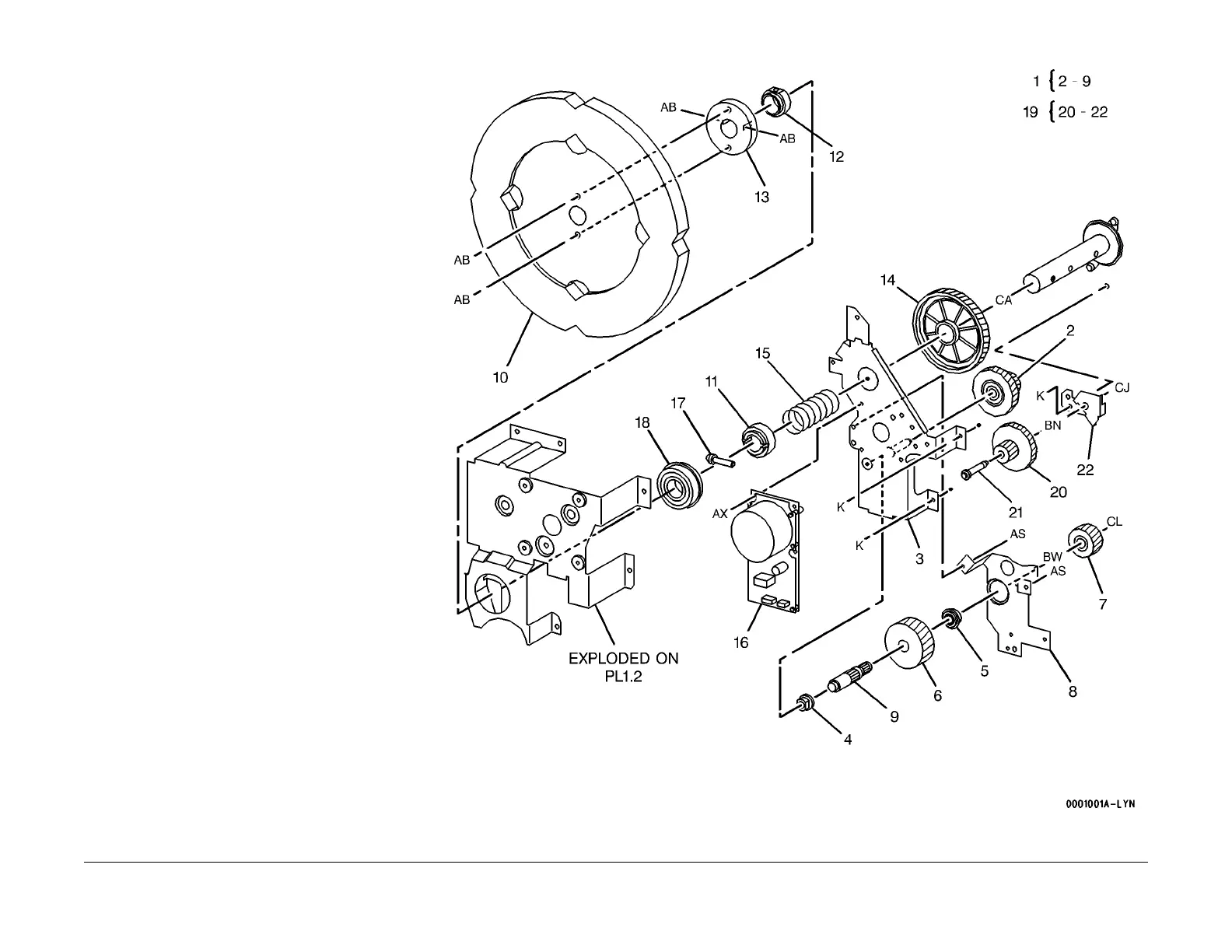

PL 1.1 Drum/IBT Drive
Item Part Description
1 007K84662 IBT Drive Assembly
2 007K84671 Gear (22/64)
3 – Bracket (Motor) (P/O PL 1.1 Item 1)
4 – Bearing (P/O PL 1.1 Item 1)
5 – Bearing (P/O PL 1.1 Item 1)
6 007E55221 Gear
7 007E55230 Gear (IBT Drive)
8 – Bracket (IBT Drive) (P/O PL 1.1
It
em
1)
9 – Shaft (P/O PL 1.1 Item 1)
10 – Fly Wheel (Not Spared)
11 – Stopper Ring (Not Spared)
12 – Spacer Ring (Not Spared)
13 – Flange (Not Spared)
14 007E52280 Gear
15 009E32160 Spring
16 127K21671 Drum Motor
– 600K86080 Drum Motor Kit (W/TAG P34)
17 – Pin (Not Spared)
18 – Bearing (Not Spared)
19 007K84871 Drum Idler Gear Assembly
20 007K84680 Gear (23/64)
21 – Stud (P/O PL 1.1 Item 19)
22 – Bracket (P/O PL 1.1 Item 19)
