1/05
10-166
DocuColor 12/DCCS50
Compiler/Tamper Functional Description
Reissue
Principles of Operation

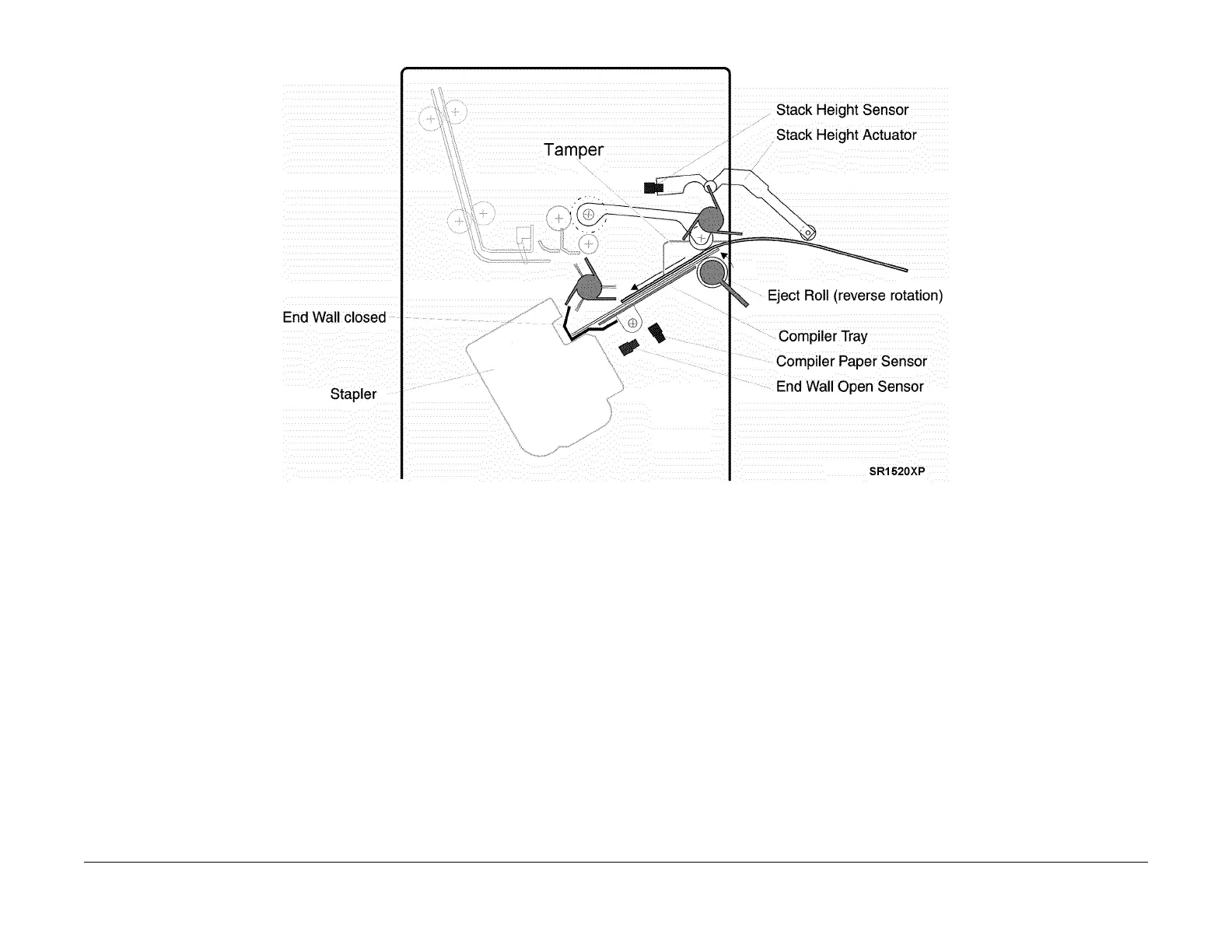

Figure 3 Paper Being Compiled for Stapling
The End Wall Motor lowers the End Wall and the Compiler Tray Solenoid tilts the Tray, causing
the p
aper set to move into the Stapler (Figure 4).
For additional information, see End Wall
Motor and Tamper Motor.
