1/05
8d-81
DocuColor 12/DCCS50
REP 15.2.4
Finisher/Sorter
Reissue
REP 15.2.4 Stacker Full Sensors
Parts List on PL 18.27
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Rear Lower Cover (REP 15.3.
15).
3. Remove the Stacker Tray Full Sensors (Figu
re 1).
1. Remove the screws (2) securing the Sensor Bracket to the Stacker Tray frame, and
remove t
he Bracket.
2. Disconnect P/J10
62 from the Stacker Full (Mixed Sizes) Sensor. Press in and
release the Stacker Full (Mixed Sizes) Sensor latches that are securing the Sensor
to the Sensor Bracket, and remove the Sensor.
3. Disconnect P
/J
1063 from the Stacker Full Sensor. Press in and release the Stacker
Full Sensor latches that are securing the Sensor to the Sensor Bracket, and remove
the Sensor.

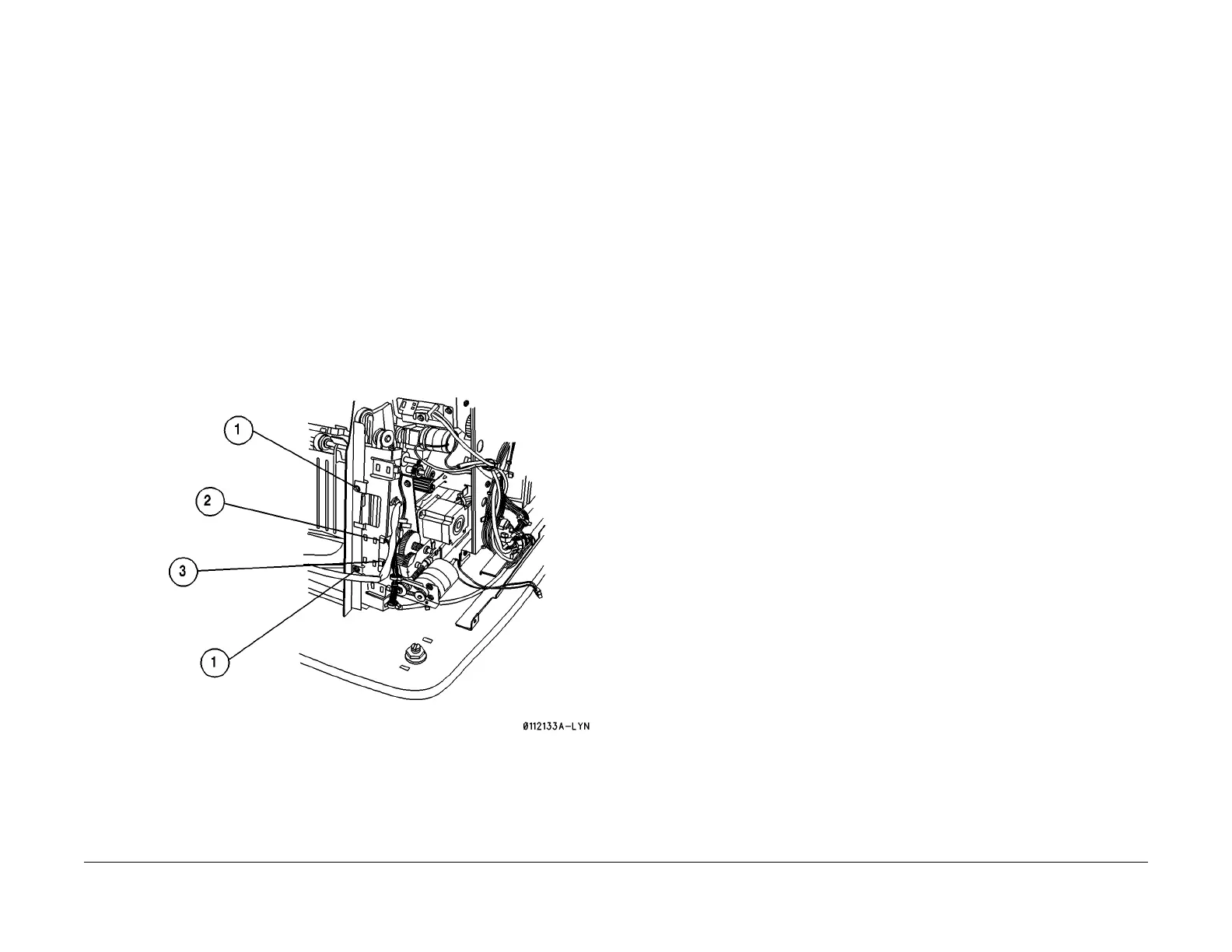

Figure 1 Stacker Tray Full Sensors
Replacement
1. Position the Stacker Full Sensor into the Sensor cutout in the Sensor Bracket.
2. Reconnect P/J
1063 to the Stacker Full Sensor.
3. Position the Stacker Full (Mixed Sizes) Sensor into the Sensor cutout in the Sensor
Bracket.
4.
Reconnect P/J
1062 to the Stacker Full (Mixed Sizes) Sensor.
5. Reinstall the Sensor Bracket on the Stacker Tray frame, ensure the Limit Actuator tab is
aligned properly in t
he Sensor Bracket. Use screws (2) to secure the Bracket.
6. Reinstall the Rear Lower Cover.
