Xerox DocuColor 12/DCCS50 User Manual

1/05
10-21
DocuColor 12/DCCS50
Switched DC Power
Principles of Operation
Reissue

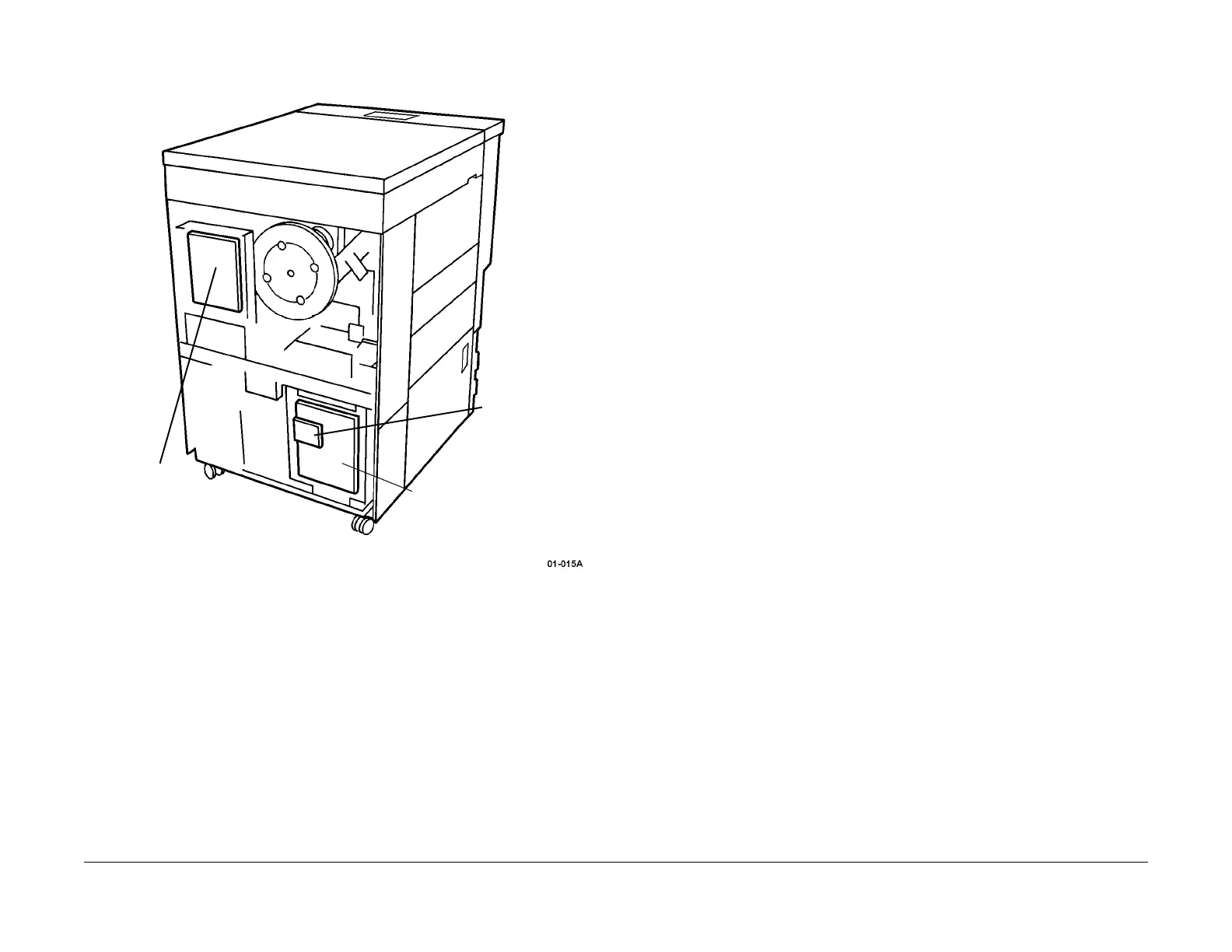

Figure 5 IOT LVPS, Distribution PWBA and IOT Drive PWBA Locations
IIT/IPS Low Voltage Power Supply
The IIT/IPS LVPS has 4 outputs:
• +3.5 VDC at 10 amps
• +5.1 VDC at 6 amps
• +13.3 VDC at 1.1 amps
• +24.5 VDC at 4.5 amps
Figure 6 show
s th
e assemblies supplied by the IIT/IPS LVPS, and Figure 7 shows the location
of the IIT/IPS LVPS.
IOT DRIVE
PWBA (BEHIND
IOT CPU PWBA
AND IOT NVM
PWBA)
DISTRIBUTION
PWBA
IOT LVPS (BEHIND
COVER)
