1/05

5-334

DocuColor 12/DCCS50

PL 14.1

Reissue

Parts Lists

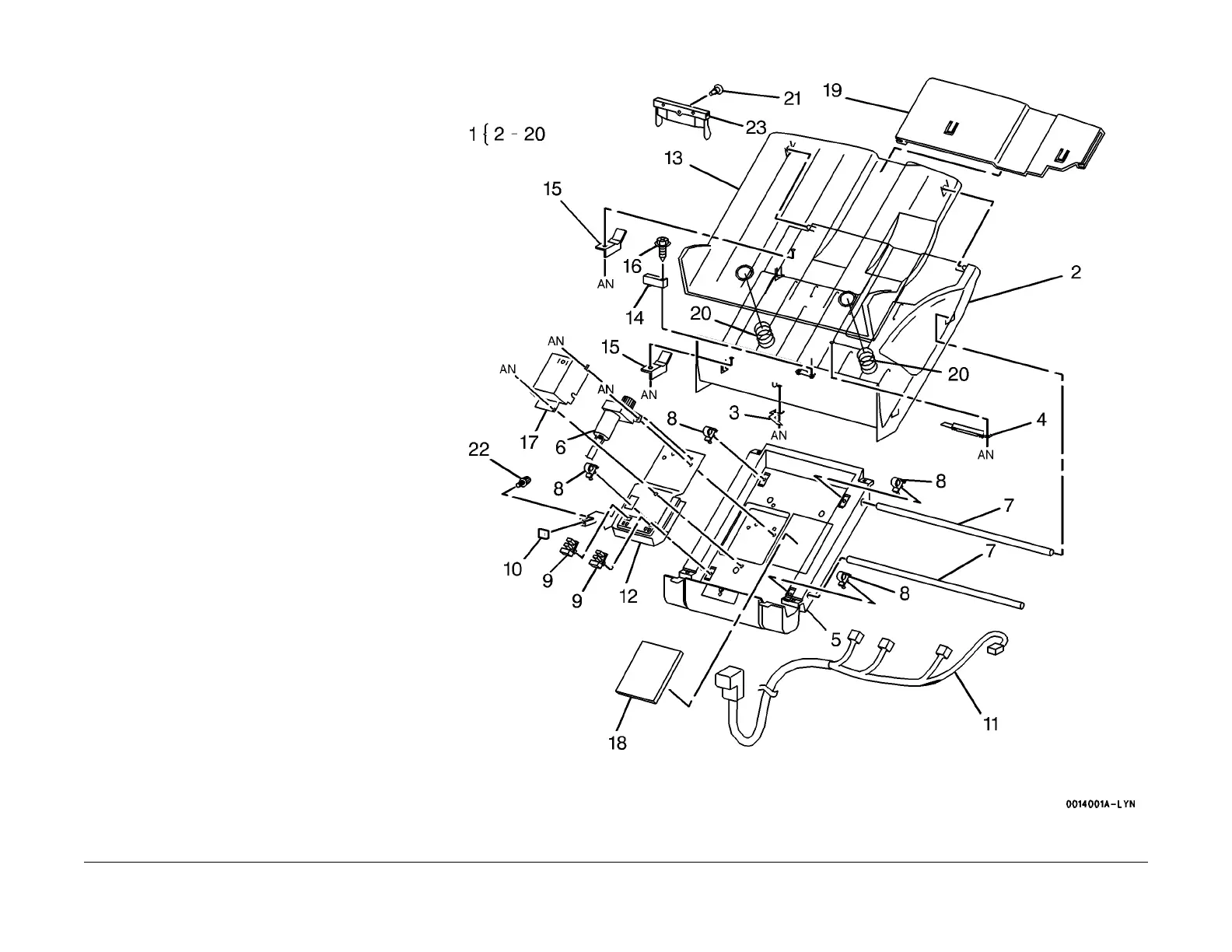

PL 14.1 Offset Catch Tray

Item Part Description

1 050K36782 Offset Catch Tray Assembly

2 – Tray (Lower) (P/O PL 14.1 Item 1)

3 120E11991 Actuator

4 007E40060 Rack

5 049E58660 Support

6 127K18372 Offset Motor (REP 14.1.1 )

7 006E50190 Shaft

8 013E85922 Bearing

9 130E82190 Offset Home Sensor, Offset Posi-

tion Sensor

10 – Gasket (P/O PL 14.1 Item 1)

11 – Wire Harness (P/O PL 14.1 Item 1)

12 015K30880 Plate

13 050E88161 Tray

14 130K60600 Full Stack Sensor

15 048E30000 Cover

16 – Topping Screw (M3 X 14) (P/O PL

14.

1 It

em 1)

17 049E86811 Motor Cover

18 – Baffle (P/O PL 14.1 Item 1)

19 830E33491 Extention Plate

20 809E08900 Spring

21 029E96861 Rivet

22 026E68120 Thumb Screw

23 004K92210 Exit Poper Guide
