DocuColor 12/DCCS50
PL 12.9
Reissue
Parts Lists

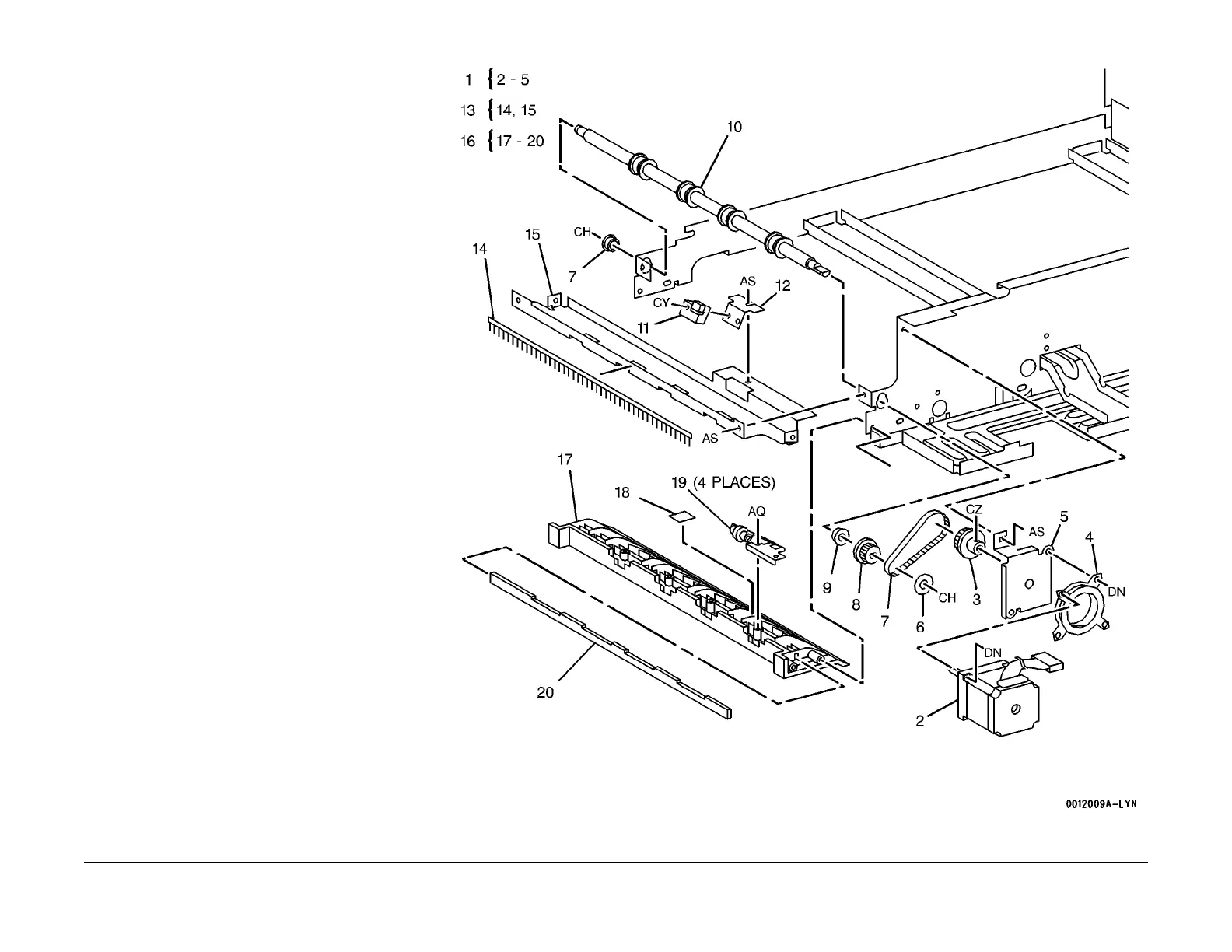

PL 12.9 Exit Motor/Chute
Item Part Description
1 127K24060 Exit Motor Assembly (REP 12.9.1 )
2 127K24070 Exit Motor
3 020E93240 Pulley
4 – Damper (P/O PL 12.9 Item 2)
5 – Bracket (P/O PL 12.9 Item 2)
6 – Spacer (Not Spared)
7 423W07753 Belt
8 020E93230 Pulley
9 – Bearing (Not Spared)
10 059K11860 Exit Roll
11 130E80890 DADF Exit Sensor
12 – Bracket (Not Spared)
13 054K18770 Exit Upper Chute Assembly
14 105E06910 Eliminator
15 – Exit Upper Chute (P/O PL 12.9
I
tem 13)
16 054K130
82 Exit Lower Chute Assembly
17 – Exit Lower Chute (P/O PL 12.9
I
tem 16)
18 019E923
20 Sensor Pad
19 059K11821 Pinch Roll
20 – Plate (P/O PL 12.9 Item 16)
