1/05
4-61
DocuColor 12/DCCS50
REP 3.3.2, REP 3.4.1
Repairs and Adjustments
Reissue

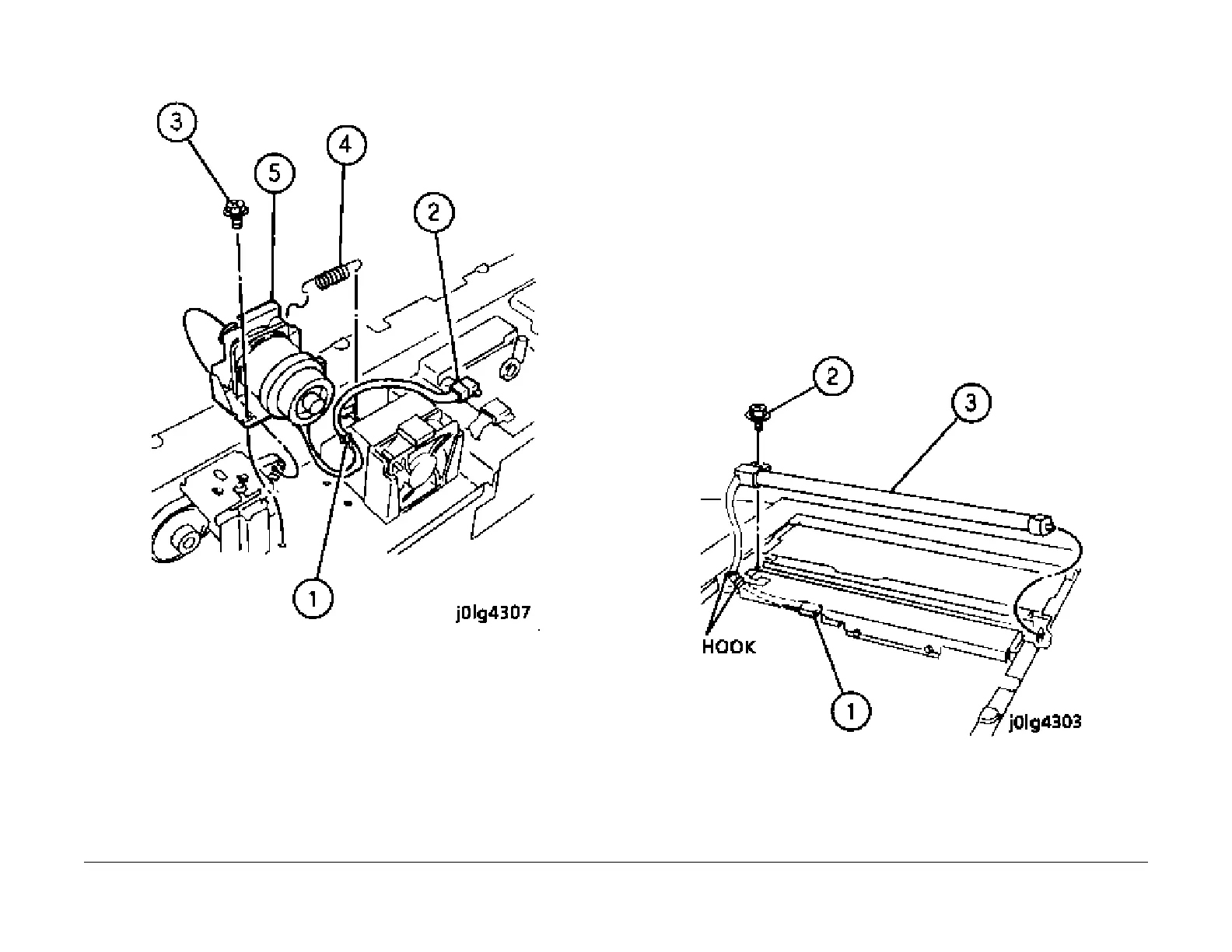

Figure 1 Removing the Carriage Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 3.4.1 Exposure Lamp
Parts List on PL 3.4
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Avoid touching the exposure lamp with your bare hands durin
g removal or installation. Oil from
your hands will contaminate the surface of the lamp.
1. Open the Platen Cover or DADF.
2. Remove the Platen Glass (REP 3.1.
1).
3. Move the Full Rate Carriage to the frame notch.
4. Remove the Exposure Lamp (Figu
re 1).
1. Disconnect the connector.
2. Remove the screw.
3. Remove the Exposure Lamp.
Figure 1 Removing the Exposure Lamp
Installation
1. Reinstall the parts in the reverse order of disassembly.
To Next Page
