DocuColor 12/DCCS50
PL 8.3
Parts Lists
Reissue

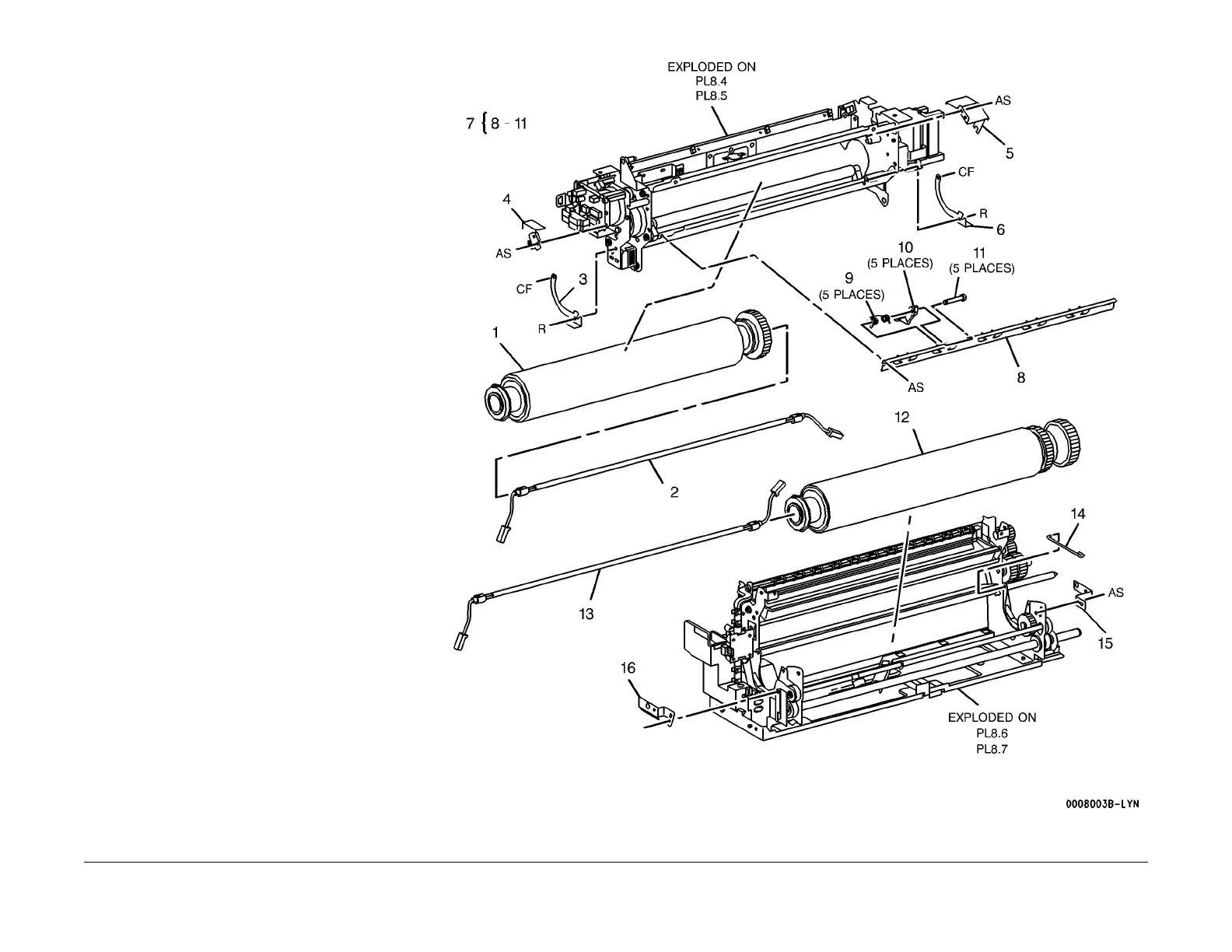

PL 8.3 Heat/Pressure Roll
Item Part Description
1 059K39500 Heat Roll (REP 8.3.1 )
2 126K07960 Heat Roll Heater Rod (60 Hz) (REP
8.3.2 )
–
126K08510 Heat Roll Heater Rod (50 Hz)
(RE
P 8.
3.2 )
3 – Heat Roll Stopper (Front) (P/O PL
8.
1 It
em 1)
4 049E86600 Heater Rod Bracket (Front)
5 – Heater Rod Bracket (Rear) (P/O PL
8.
1 It
em 1)
6 – Heat Roll Stopper (Rear) (P/O PL
8.
1 It
em 1)
7 019K94651 Heat Roll Finger Assembly
8 – Plate (P/O PL 8.3 Item 7)
9 009E59690 Spring
10 019E42010 Heat Roll Striper Finger (REP 8.3.5
)
11 026P63503 Stud
12 059K39670 Pressure Roll (REP 8.3.3 )
13 126K07970 Pressure Roll Heater Rod (60 Hz)
(RE
P 8.
3.4 )
– 126K08520 Pressure Roll Heater Rod (50 Hz)
(RE
P 8.
3.4 )
14 809E06730 Spring
15 049E86370 Heater Rod Bracket (Rear)
16 049E86360 Heater Rod Bracket (Front)
