Xerox DocuColor 12/DCCS50 User Manual

1/05
4-137
DocuColor 12/DCCS50
REP 8.10.1
Repairs and Adjustments
Reissue
REP 8.10.1 Pressure Roll Stripper Finger
Parts List on PL 8.10
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
1. Open the Front Door.
2. Remove the Fuser Unit (REP
8.1.
1).
3. Remove the Front Cover (PL 8.1).
4. Remove the Exit Chute (Figure 1).
NOT
E: Do not damage the finger tip.
1. Remove the screw.
2. Remove the spring.
3. Remove the Exit Chute Assembly.

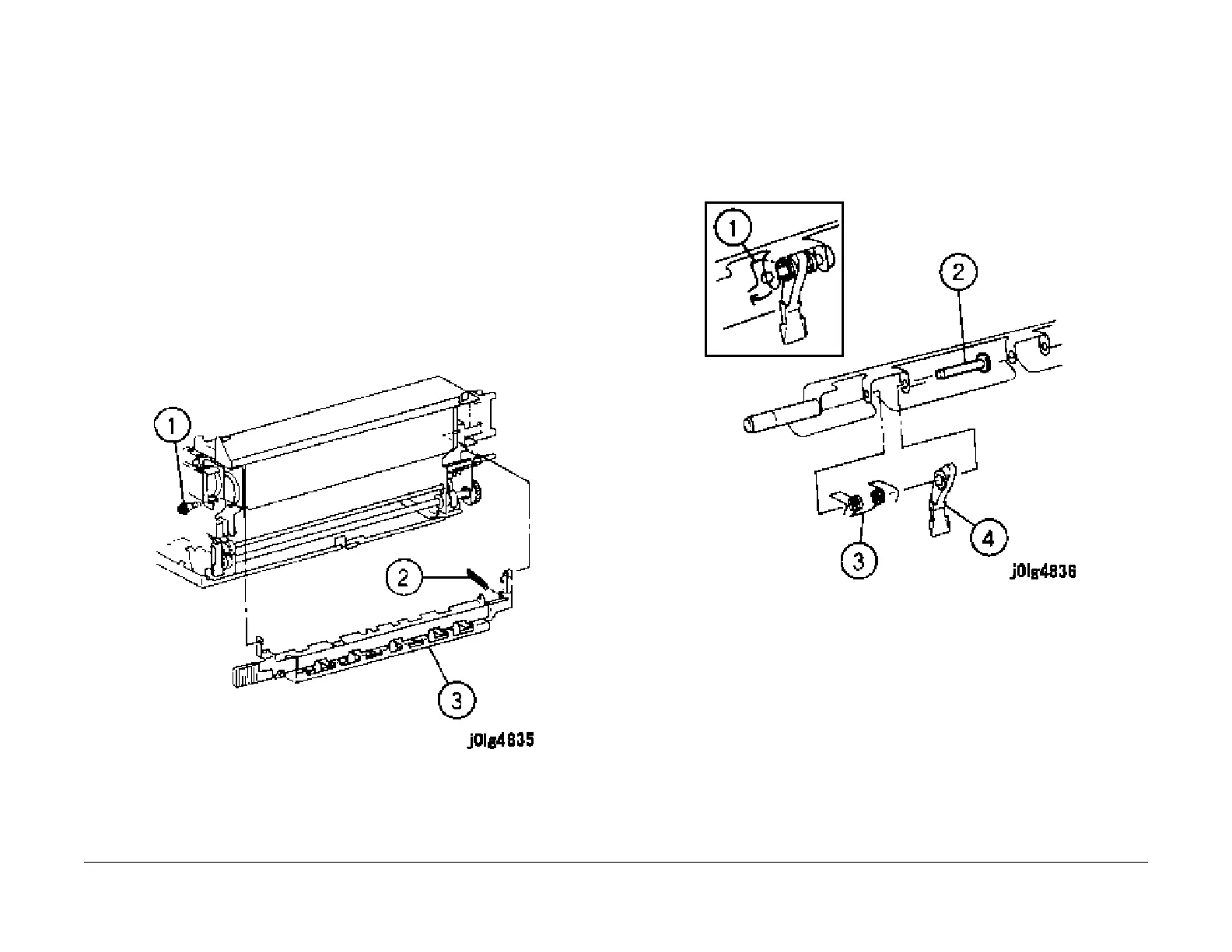

Figure 1 Remove the Exit Chute
NOTE: If the Pressure Roll Finger Assembly appears bent or damaged, replace the entire
f
inger
assembly.
5. Remove the Pressure Roll Stripper Finger (Figure 2
).
1. Remove the spring tip from the groove.
2. Remove the stud.
3. Remove the spring.
4. Remove the Stripper Finger.
Figure 2 Remove the Pressure Roll Stripper Finger
Installation
1. Install the spring as shown (Figure 3).
