1/05

5-288

DocuColor 12/DCCS50

PL 8.2

Reissue

Parts Lists

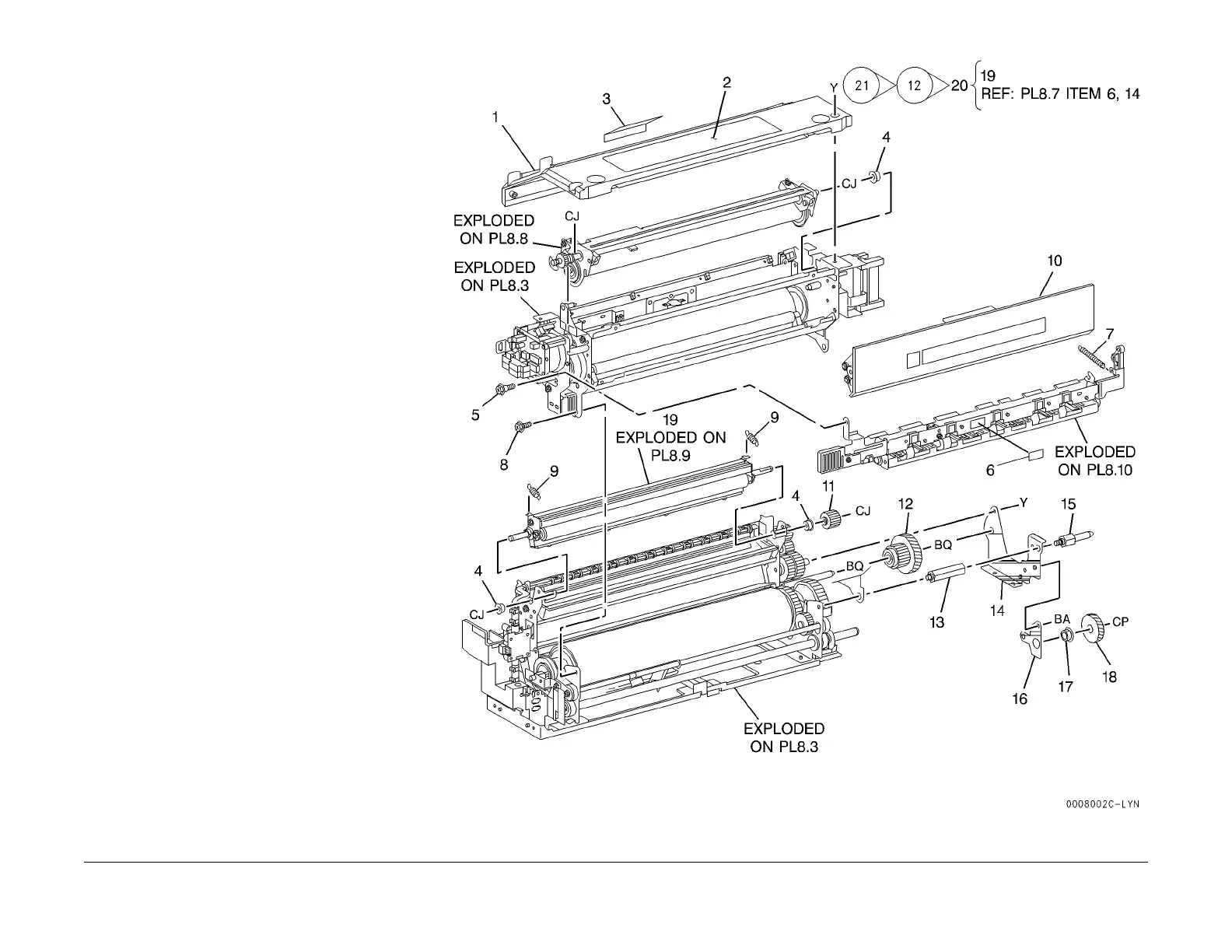

PL 8.2 Fuser Sub Assembly

Item Part Description

1 – Top Cover (P/O PL 8.1 Item 1)

2 891E76040 Label

3 891E76001 Label

4 013E87700 Bearing

5 – Screw (P/O PL 8.1 Item 1)

6 891E75990 Label

7 – Spring (P/O PL 8.1 Item 1)

8 – Screw (P/O PL 8.1 Item 1)

9 809E09190 Spring

10 – Web CRU (P/O PL 8.1 Item 1)

11 007E49730 Gear (19)

12 007K84120 Gear (28/49)

13 – Stud (P/O PL 8.1 Item 1)

14 – Frame (P/O PL 8.1 Item 1)

15 – Pin (P/O PL 8.1 Item 1)

16 – Plate (P/O PL 8.1 Item 1)

17 – Bearing (P/O PL 8.1 Item 1)

18 007E49831 Gear

19 – Donor Roll Assembly (P/O PL 8.2

tem 20) (REP

8.2.1)

20 604K08100 Fuser Reliability Improvement Kit

or St

reaks and Offsetting)
