Xerox DocuColor 12/DCCS50 User Manual

1/05
4-112
DocuColor 12/DCCS50
REP 7.10.1
Reissue
Repairs and Adjustments

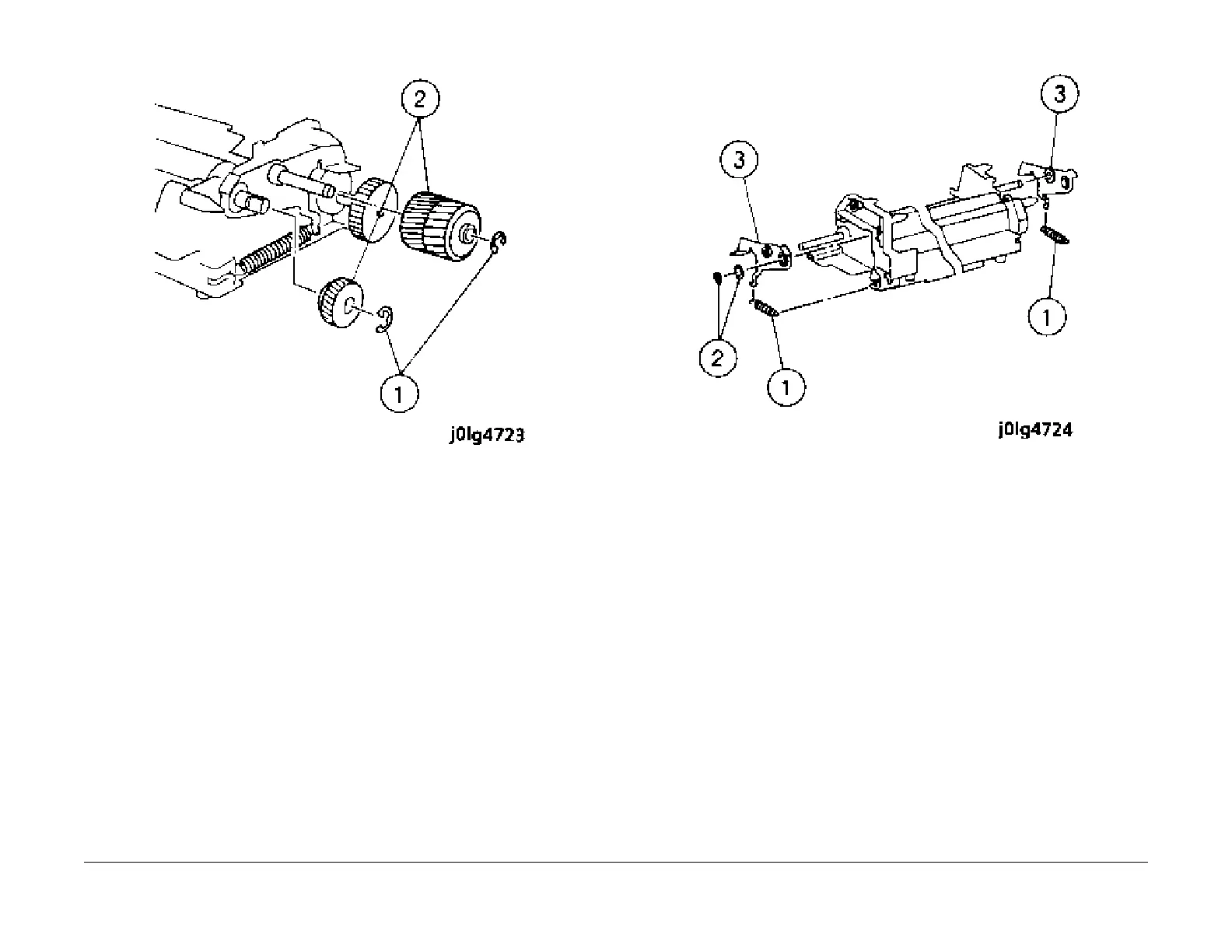

Figure 3 Remove the Gears
6. Remove the arms (Figu
re 4).
1. Remove the springs (2).
2. Remove the E-clip and nylon washer.
3. Remove the arms (2).
Figure 4 Remove the Arms
7. Remove the 2nd BTR Roll (F
igure 5).
1. Remove the 2nd BTR Roll.
