Xerox DocuColor 12/DCCS50

1/05
4-113
DocuColor 12/DCCS50
REP 7.10.1
Repairs and Adjustments
Reissue

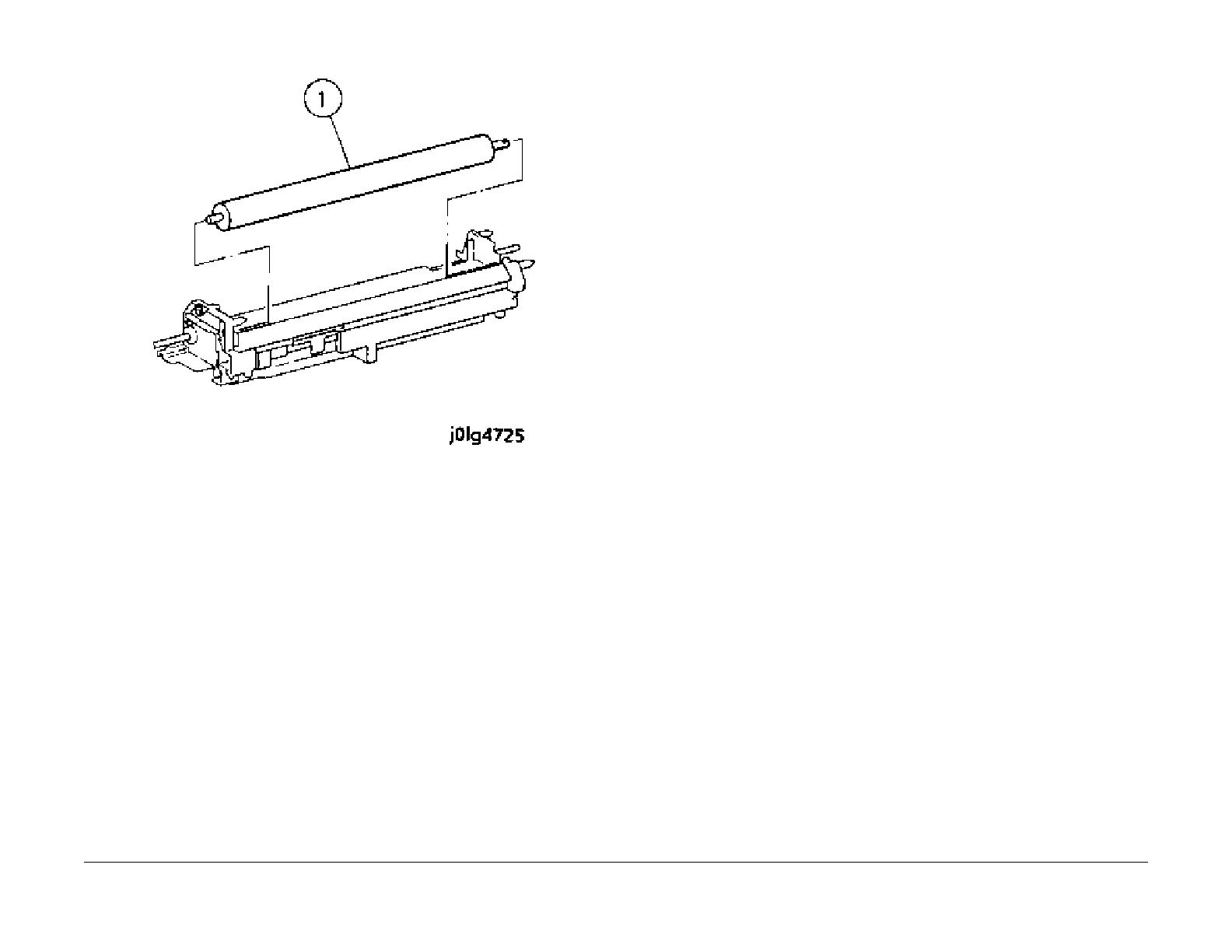

Figure 5 Remove the 2nd BTR Roll
Installation
NOTE: To clean the 2nd BTR Roll, wipe the roll surface with a dry cloth.
CAUTION
Be sure to rotate the drive shaft on the 2nd BTR to move the BTR roll to the down position
before c
losing the drawer assembly.
1. Reinstall the parts in the reverse order of disassembly.
