1/05
4-64
DocuColor 12/DCCS50
REP 3.5.1
Reissue
Repairs and Adjustments

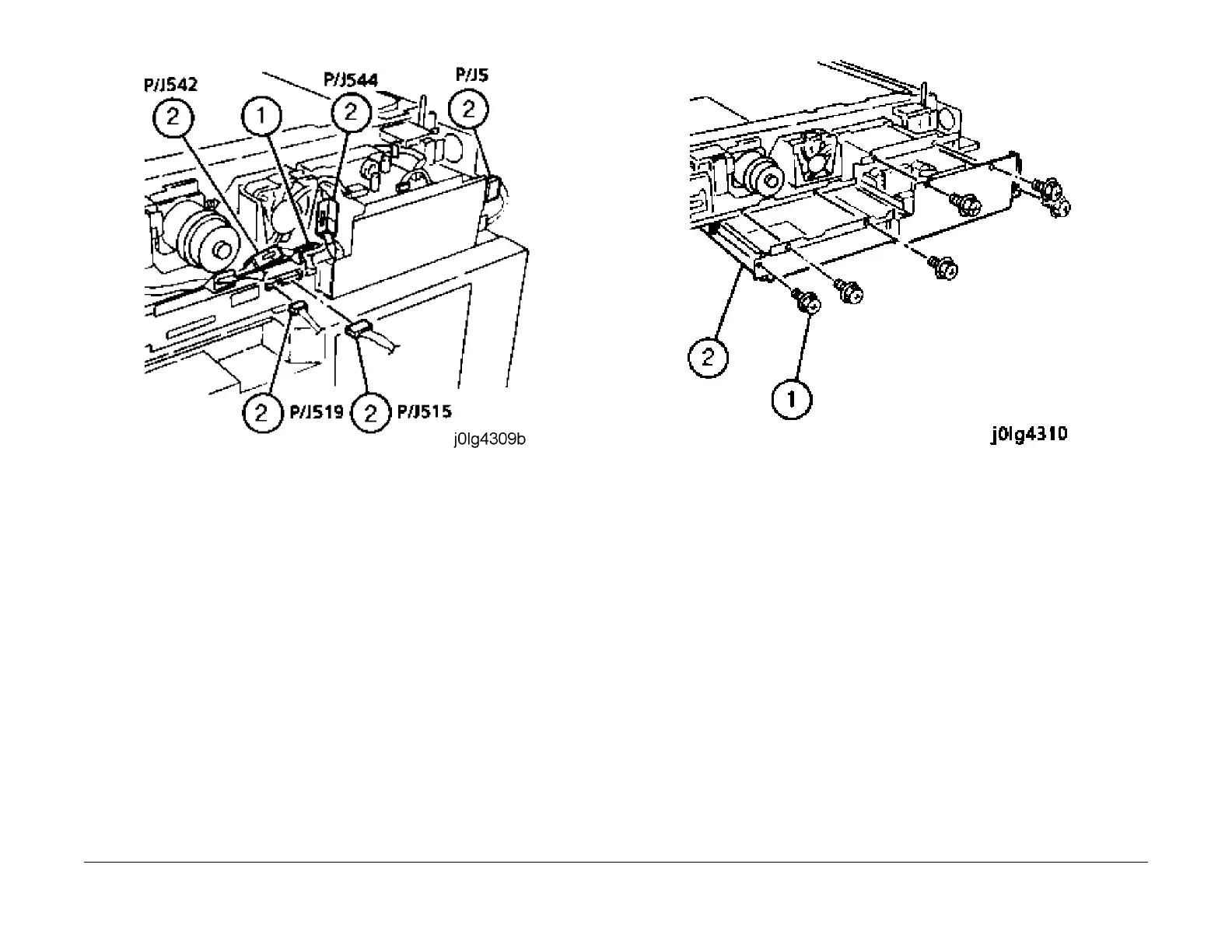

Figure 2 Disconnecting the Connectors
5. Pull out the IPS chassis (Figu
re 3).
1. Remove the screws (6).
2. Ensure that the (3) connectors on the right side of the IPS chassis are disconnect.
3. Pull out the IPS chassis.
Figure 3 Pulling out the IPS Chassis
Installation
1. Reinstall the parts in the reverse order of disassembly.
