Xerox DocuColor 12/DCCS50 User Manual

1/05
4-57
DocuColor 12/DCCS50
REP 3.3.1
Repairs and Adjustments
Reissue

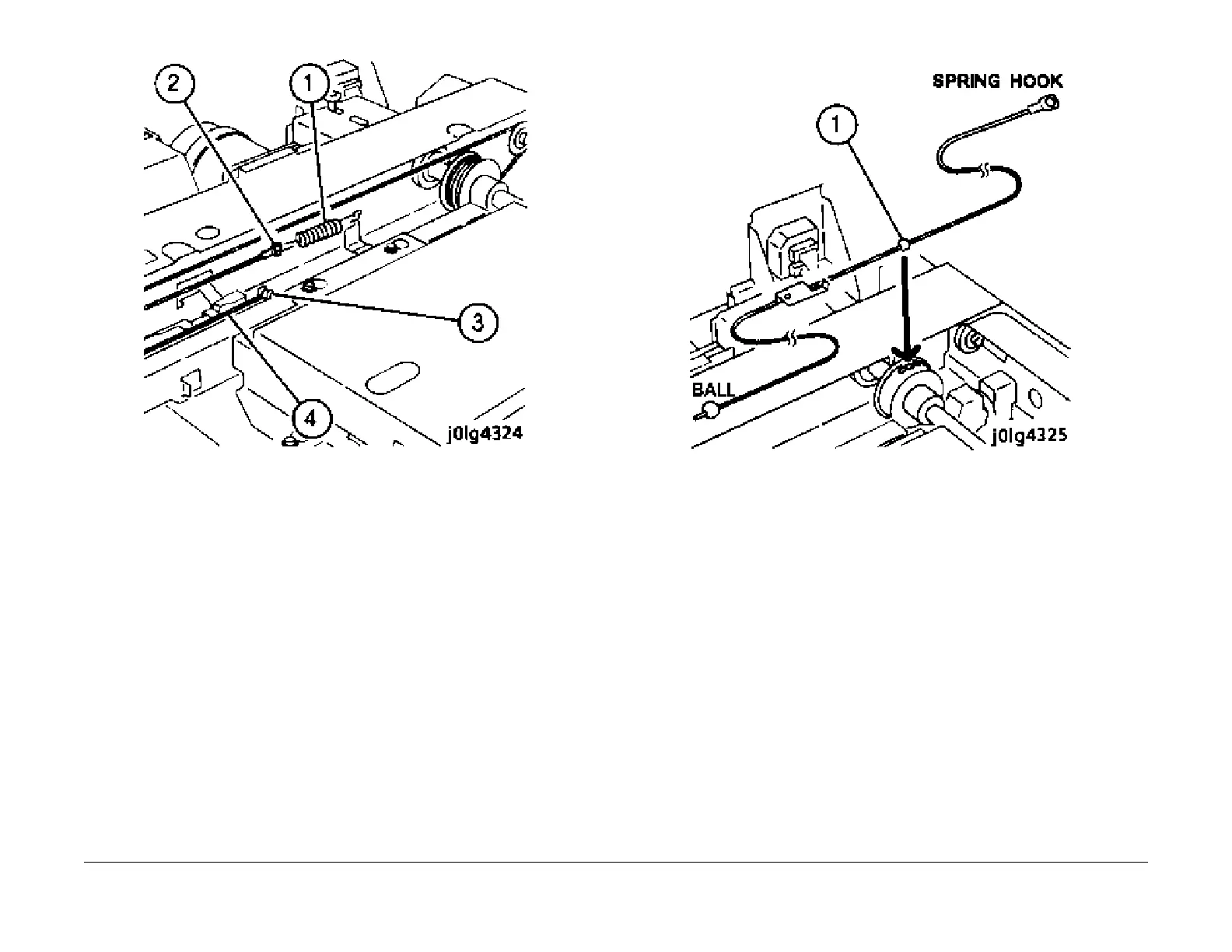

Figure 4 Removing the Carriage Cable
Installation
1. Wind the Carriage Cable into the pulley (Figure 5).
1. Insert the Carriage Cable Ball into the groove of the pulley.
Figure 5 Winding the Carriage Cable
2. Wind the cable (spring hook side) onto the pulley for 2.5 turns (Figu
re 6).
3. Tape and lock the cable (on the spring hook) on the frame (Figure 6).
