DocuColor 12/DCCS50
REP 6.7.2
Reissue
Repairs and Adjustments
NOTE: Place a sheet of paper on the floor when the Trickle Auger is pulled out to protect
the floor from any spilled Developer.

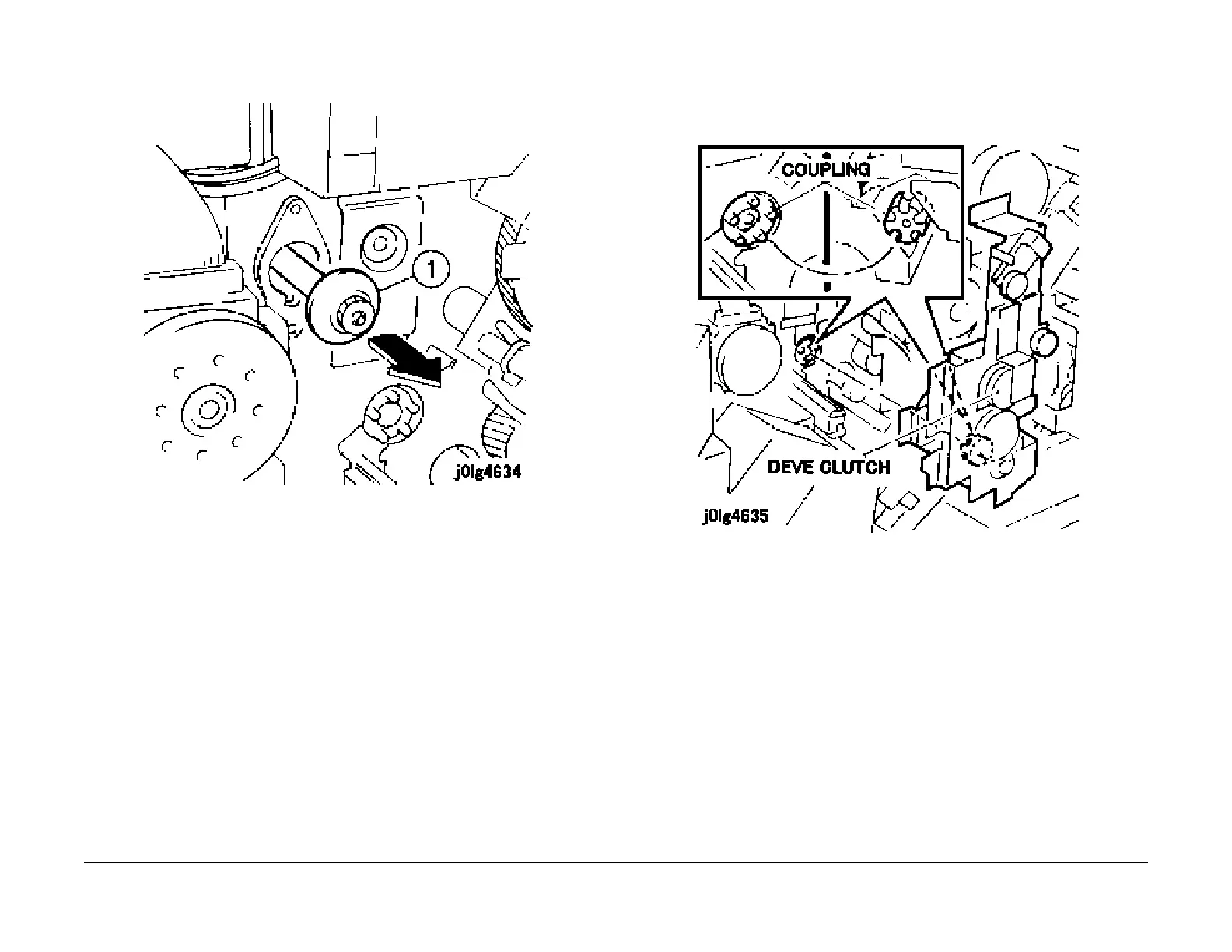

Figure 5 Remove the Trickle Auger
Installation
NOTE: When installing the Development/BP0 Drive and IBT Cleaner Retract, make sure the
couplings are properly meshed. Push the Development Clutch in after temporarily locking the
Development BP0 Drive and the IBT Cleaner Retract (Figure 6).
Figure 6 Install the drives
