DocuColor 12/DCCS50
REP 9.3.3
Repairs and Adjustments
Reissue

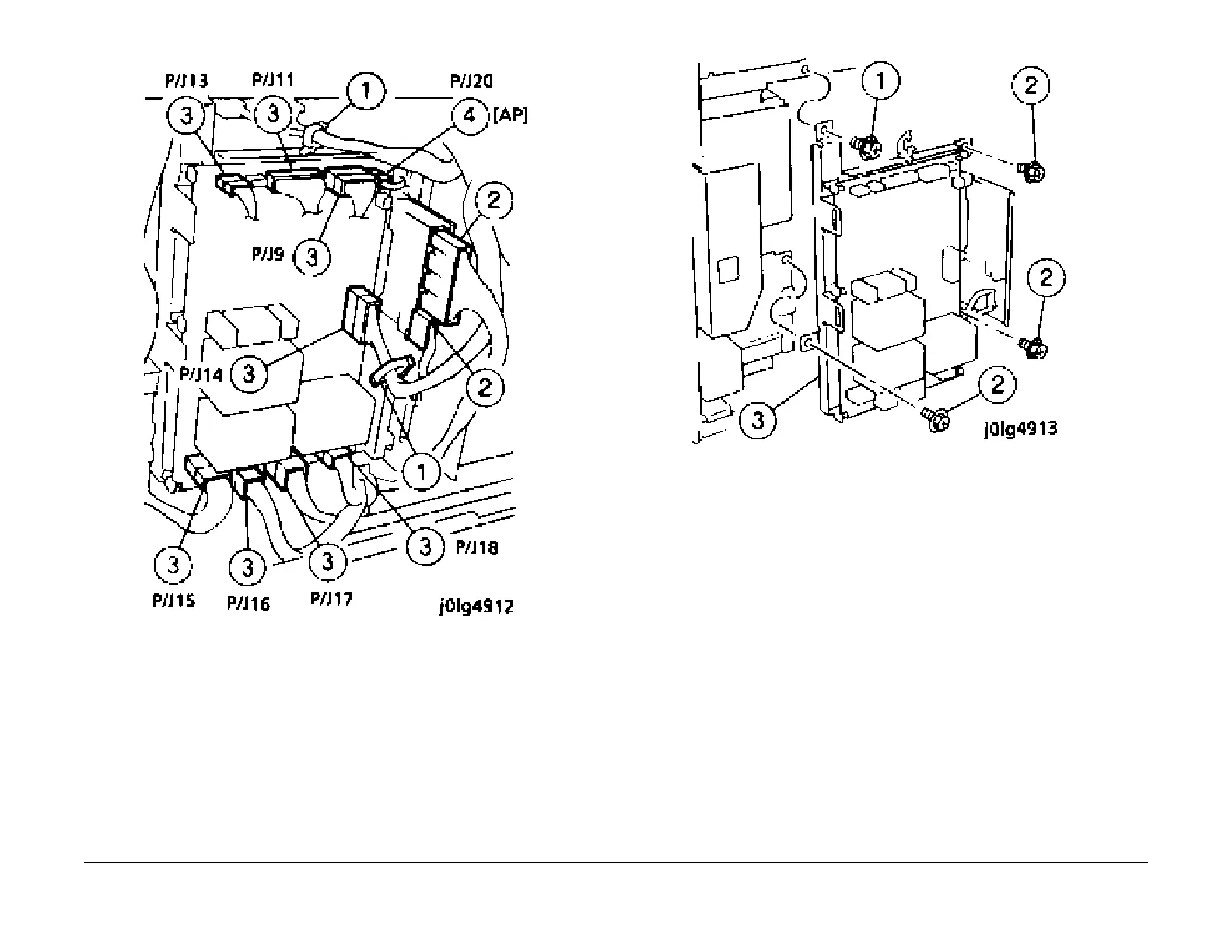

Figure 3 Disconnect the AC Drive PWB Connectors
5. Remove the AC Drive PWB (Figu
re 4).
1. Remove the screw (large: 1).
2. Remove the screws (small: 3).
3. Remove the AC Drive PWB.
Figure 4 Remove the AC Drive PWB
6. Remove the B3/B3H LVPS (Fi
gu
re 5).
1. Disconnect the connectors (3).
2. Remove the screw.
3. Loosen the screws (2).
4. Remove the B3/B3H LVPS.
