1/05
4-174
DocuColor 12/DCCS50
REP 12.10.1
Reissue
Repairs and Adjustments

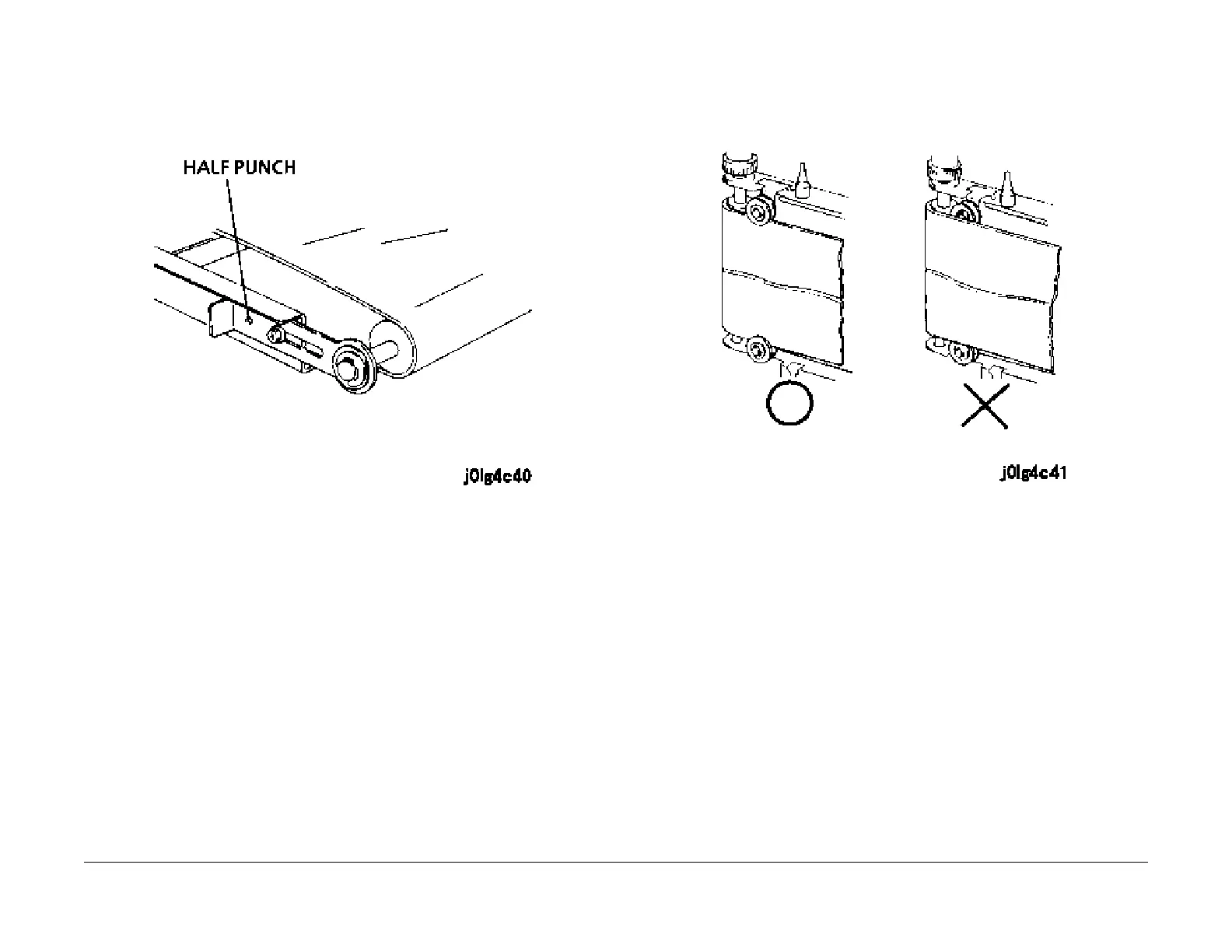

NOTE: Lock the shaft support by matching the hole with the frame's half-punch (Figure
3).
Figure 3 Lock the shaft support
NOTE: Make sure that both sides of the Platen Belt are correctly set in the pulley (Figure
4).
Figure 4 Install the Platen Belt
2. Connect the power cord and switch on the power.
3. Select and execute the DC330 Component Control Diag. Screen (005-055 Belt Motor
CW). P
ress the START button.
4. Rotate the Platen Belt for 15 seconds. Press the STOP button. Check that the Platen Belt
has not shift
ed to either side.
CORRECT
INCORRECT
