1/05
4-140
DocuColor 12/DCCS50
REP 9.2.2
Reissue
Repairs and Adjustments

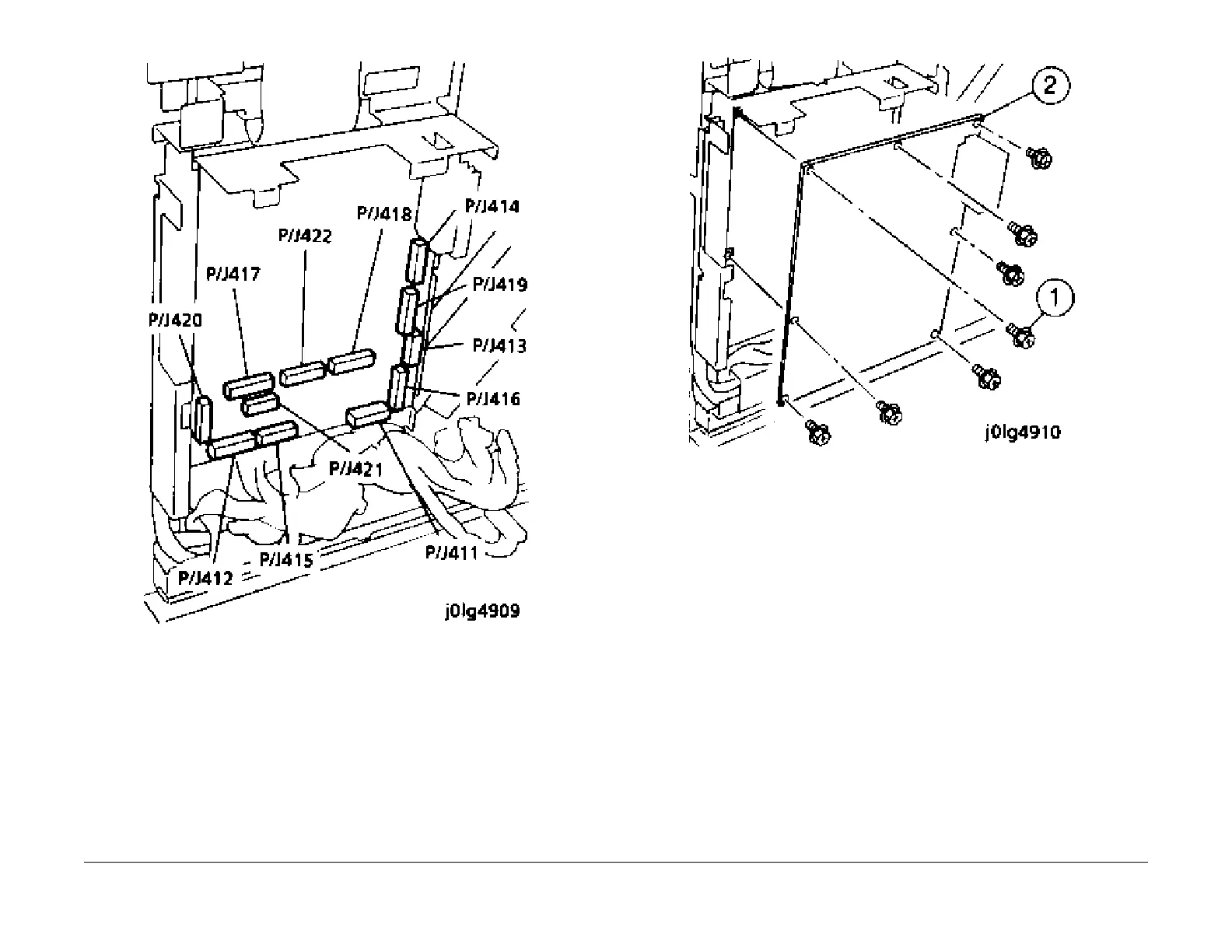

Figure 2 Disconnect the IOT Drive PWB Connectors
5. Remove the IOT Drive PWB (Figure 3
).
1. Remove the screws (8).
2. Remove the IOT Drive PWB.
Figure 3 Remove the IOT Drive PWB
Installation
1. Reinstall the parts in the reverse order of disassembly.
