Installation Instructions
Reissue
Figure 2 Installing the Print Cable

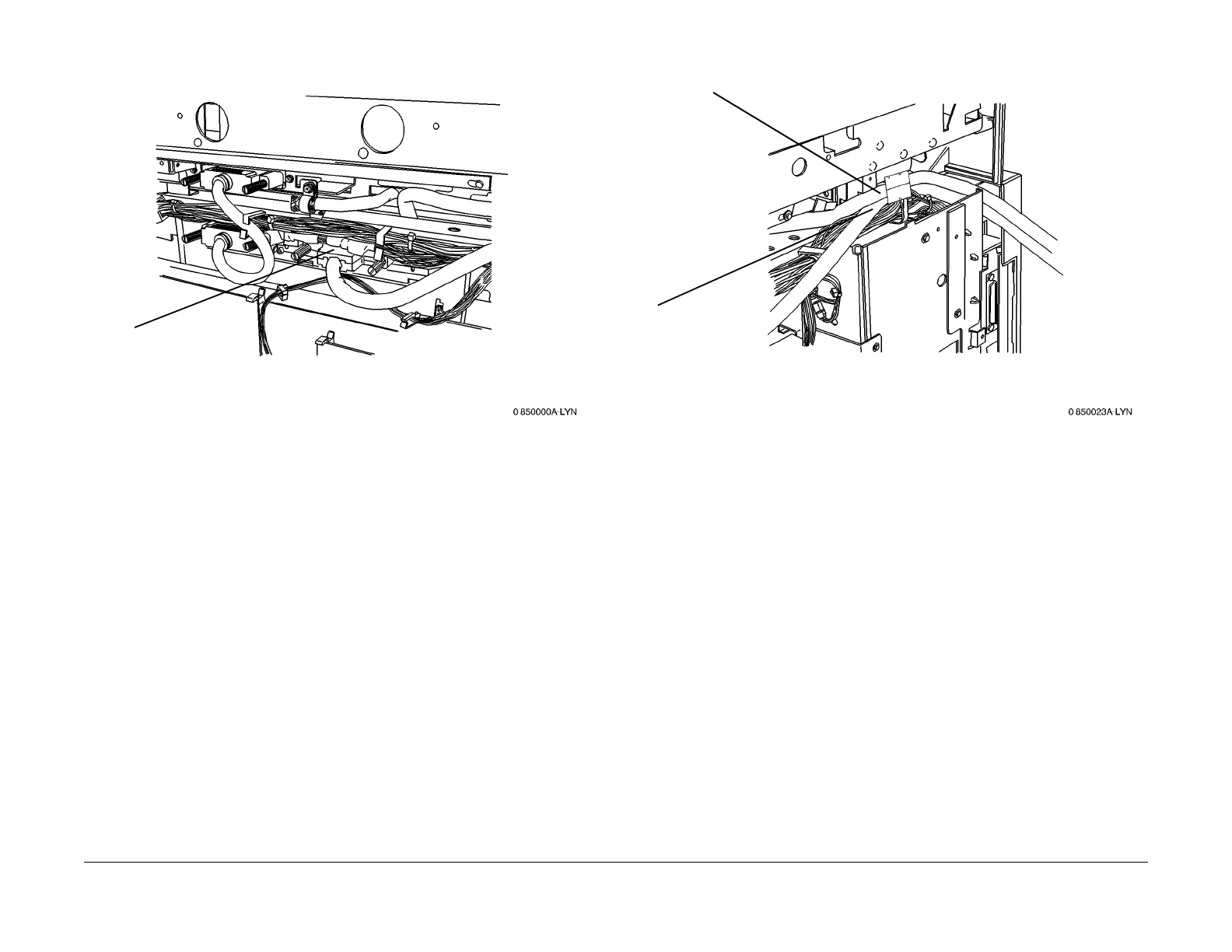

3. Route the Scan and Print cables (Figure 3):
Fig
ure 3 Routing the Scan and Print Cables
4. Provide a cable exit on the Right Upper Cover (Figure 4):
1
Connect the Print
cable (TPJ1)
1
Route the Print
Cable towards
the rear of the
machine
2
Route the Scan
cable, in front of
the Print cable,
towards the rear
of the machine
